Chapter 1 AAA & RADIUS & HWTACACS
Configuration
1-8
Table 1-3 Differences between HWTACACS and RADIUS
HWTACACS RADIUS
Adopts TCP, providing more reliable
network transmission.
Adopts UDP.
Encrypts the entire message except the
HWTACACS header.
Encrypts only the password field in
authentication message.
Separates authentication from
authorization. For example, you can use
one TACACS server for authentication
and another TACACS server for
authorization.
Combines authentication and
authorization.
Is more suitable for security control. Is more suitable for accounting.
Supports configuration command
authorization.
Does not support.
In a typical HWTACACS application (as shown in Figure 1-5), a dial-up or terminal user
needs to log into the switch to perform some operations. As a HWTACACS client, the
switch sends the username and password to the TACACS server for authentication.
After passing authentication and being authorized, the user successfully logs into the
switch to perform operations.
TACACS server
129.7.66.66
TACACS server
129.7.66.67
ISDN / PSTN
Dial -up user
HWTACACS client
Terminal user
TACACS server
TACACS server
129..66.67
IS DN/ PSTN
Dial -up user
HWTACACS client
Terminal user
TACACS server
TACACS server
129.7.66.67
ISDN / PSTN
Dial -up user
HWTACACS client
Terminal user
TACACS server
TACACS server
IS DN/ PSTN
Dial -up user
HWTACACS client
Terminal user
TACACS server
129.7.66.66
TACACS server
129.7.66.67
ISDN / PSTN
Dial -up user
HWTACACS client
Terminal user
TACACS server
TACACS server
129..66.67
IS DN/ PSTN
Dial -up user
HWTACACS client
Terminal user
TACACS server
TACACS server
129.7.66.67
ISDN / PSTN
Dial -up user
HWTACACS client
Terminal user
TACACS server
TACACS server
IS DN/ PSTN
Dial -up user
HWTACACS client
Terminal user

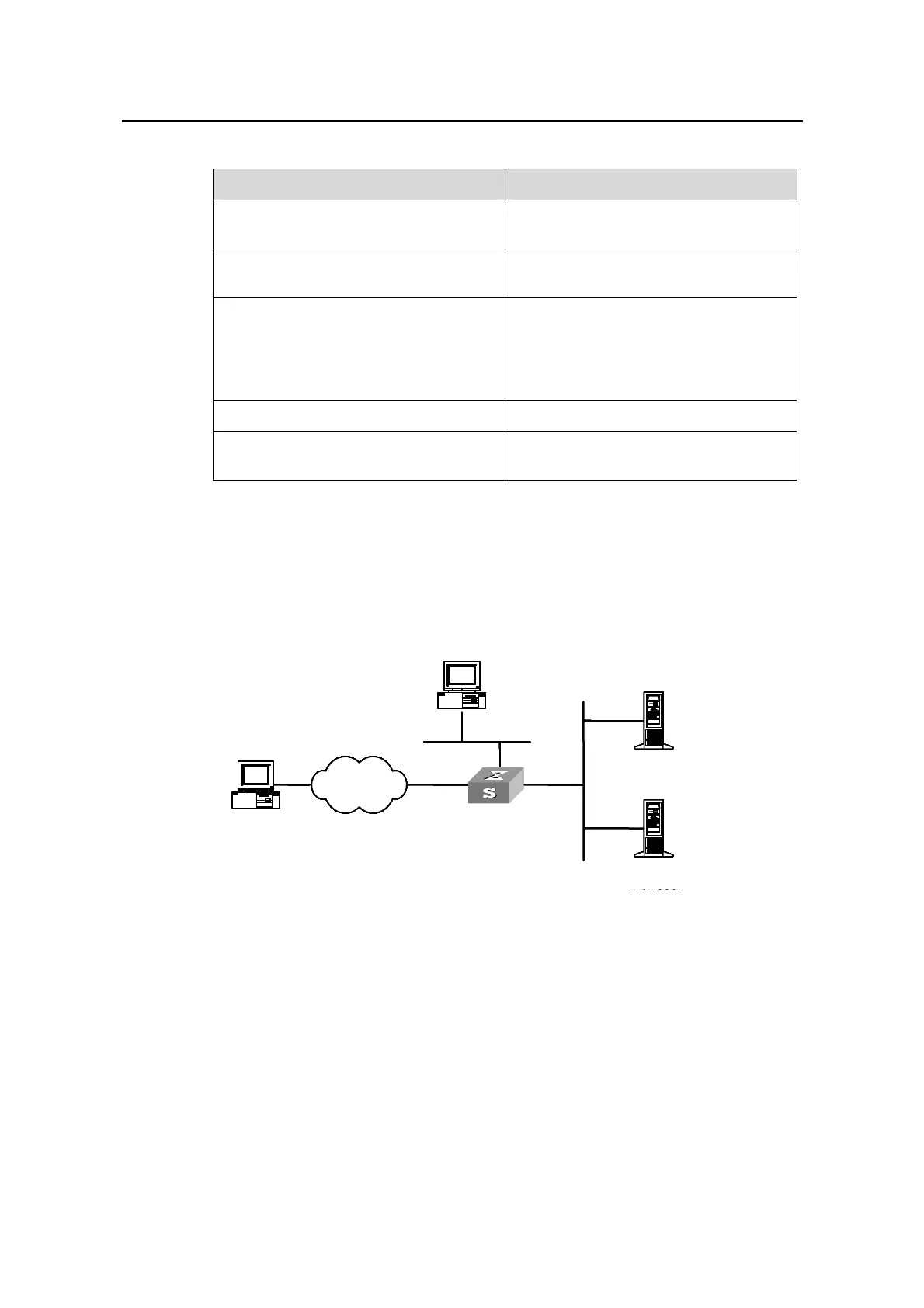

Figure 1-5 Network diagram for a typical HWTACACS application
II. Basic message exchange procedure in HWTACACS
The following text takes telnet user as an example to describe how HWTACACS
implements authentication, authorization, and accounting for a user.
Figure 1-6
illustrates the basic message exchange procedure:
