H3C S3600 Series User Manual

Operation Manual – Link Aggregation
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1
Link Aggregation Configuration
1-12
Table 1-4 Display and maintain link aggregation configuration
Operation Command Description
Display summary
information of all
aggregation groups
display
link-aggregation
summary
Display detailed
information of a specific
aggregation group or all
aggregation groups
display
link-aggregation
verbose [ agg-id ]
Display link aggregation
details of a specified port
or port range
display
link-aggregation
interface interface-type
interface-number [ to
interface-type
interface-number ]
Display local device ID
display lacp system-id
You can execute the
display command in any
view.
Clear LACP statistics
about a specified port or
port range
reset lacp statistics
[ interface interface-type
interface-number [ to
interface-type
interface-number ] ]
Execute the reset
command in user view.
1.4 Link Aggregation Configuration Example
I. Network requirements
z Switch A connects to Switch B with three ports Ethernet1/0/1 to Ethernet1/0/3. It is
required that incoming/outgoing load between the two switches can be shared
among the three ports.
z Adopt three different aggregation modes to implement link aggregation on the
three ports between switch A and B.
II. Network diagram

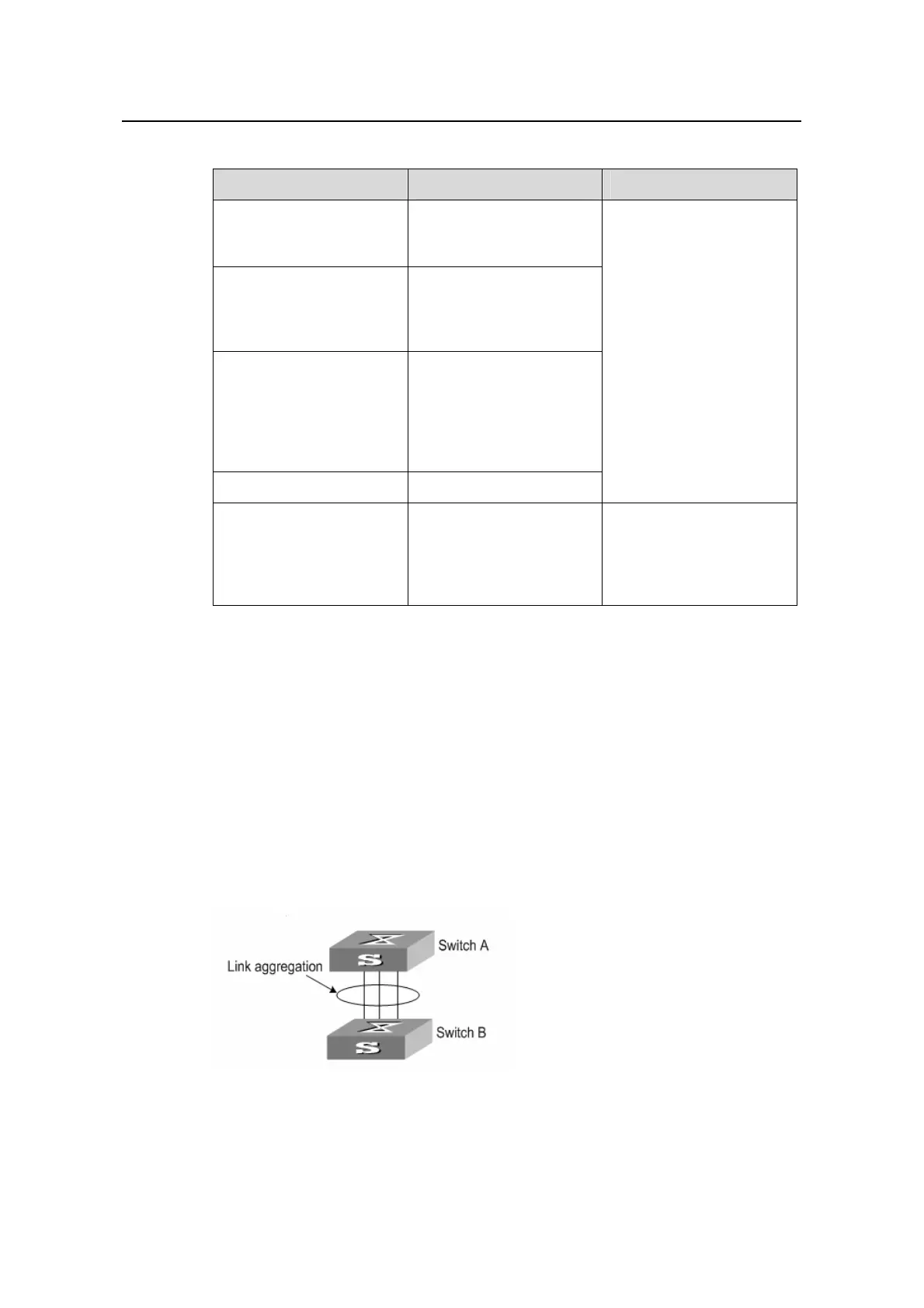

Figure 1-1 Network diagram for link aggregation configuration
