H3C S3600 Series User Manual

Operation Manual – SNMP-RMON
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1
SNMP Configuration
1-10
II. Network diagram
Ethernet
NMS
10.10.10.1
10.10.10 .2
Ethernet
NMS
10.10.10.1
10.10.10 .2
Switch A
Ethernet
NMS
10.10.10.1
10.10.10 .2
Ethernet
NMS
10.10.10.1
10.10.10 .2
Ethernet
NMS
10.10.10.1
10.10.10 .2
Ethernet
NMS
10.10.10.1
10.10.10 .2
Switch A

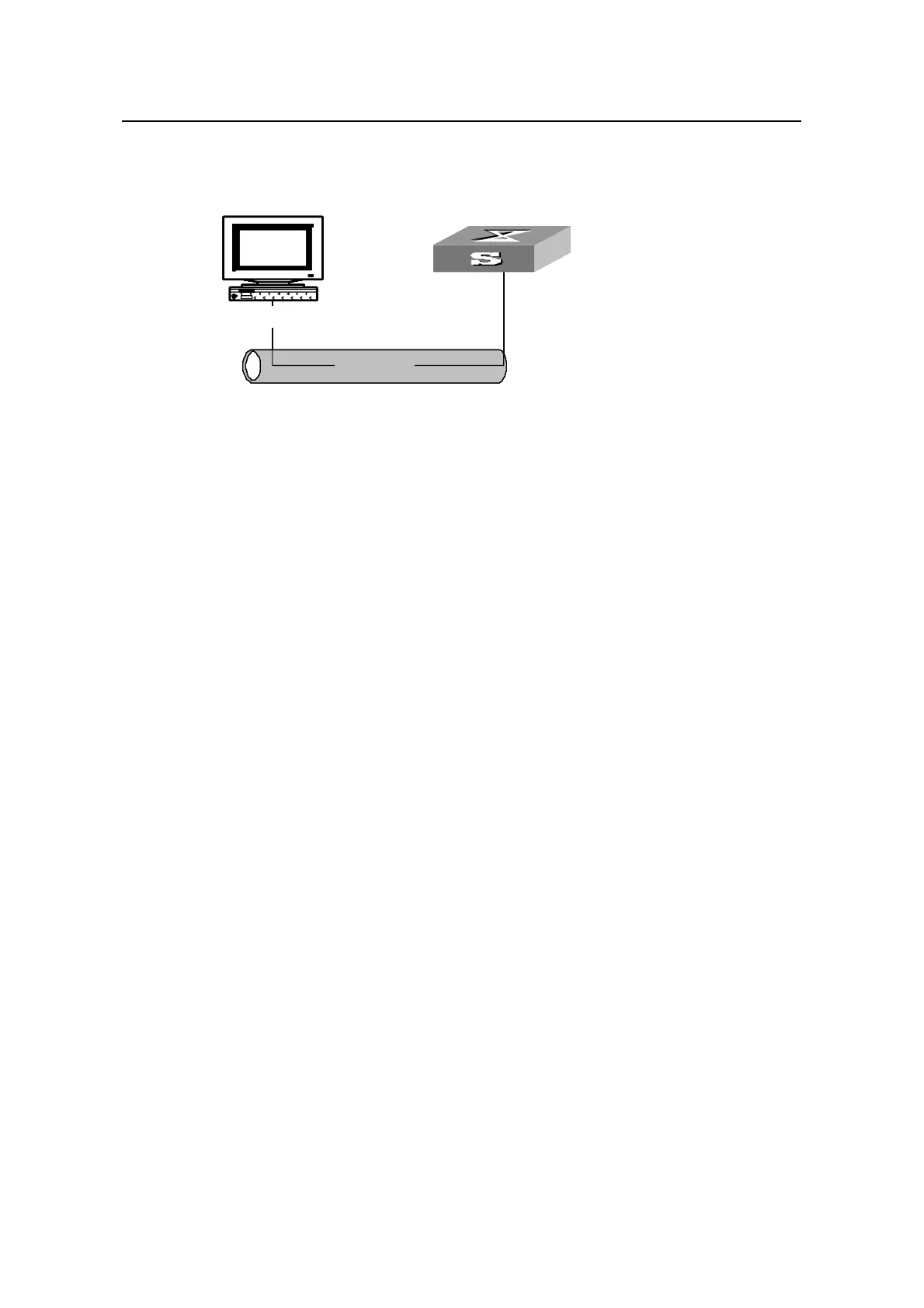

n Figure 1-2 Network diagram for SNMP configuratio
III. Network procedure
# Set the community name, group name and user.
<H3C> system-view
[H3C] snmp-agent
[H3C] snmp-agent sys-info version all
[H3C] snmp-agent community write public
[H3C] snmp-agent mib-view include internet 1.3.6.1
[H3C] snmp-agent group v3 managev3group write-view internet
[H3C] snmp-agent usm-user v3 managev3user managev3group
# Set the VLAN-interface 2 as the interface used by NMS. Add port Ethernet1/0/2,
which is to be used for network management, to VLAN 2. Set the IP address of
VLAN-interface 2 as 10.10.10.2.
[H3C] vlan 2
[H3C-vlan2] port Ethernet 1/0/2
[H3C-vlan2] quit
[H3C] interface Vlan-interface 2
[H3C-Vlan-interface2] ip address 10.10.10.2 255.255.255.0
[H3C-Vlan-interface2] quit
# Enable the SNMP agent to send Trap packets to the NMS whose IP address is
10.10.10.1. The SNMP community name to be used is “public”.
[H3C] snmp-agent trap enable standard authentication
[H3C] snmp-agent trap enable standard coldstart
[H3C] snmp-agent trap enable standard linkup
[H3C] snmp-agent trap enable standard linkdown
[H3C] snmp-agent target-host trap address udp-domain 10.10.10.1 udp-port 5000
params securityname public
