H3C S3600 Series User Manual

Operation Manual – SSH Terminal Service
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1
SSH Terminal Service
1-16

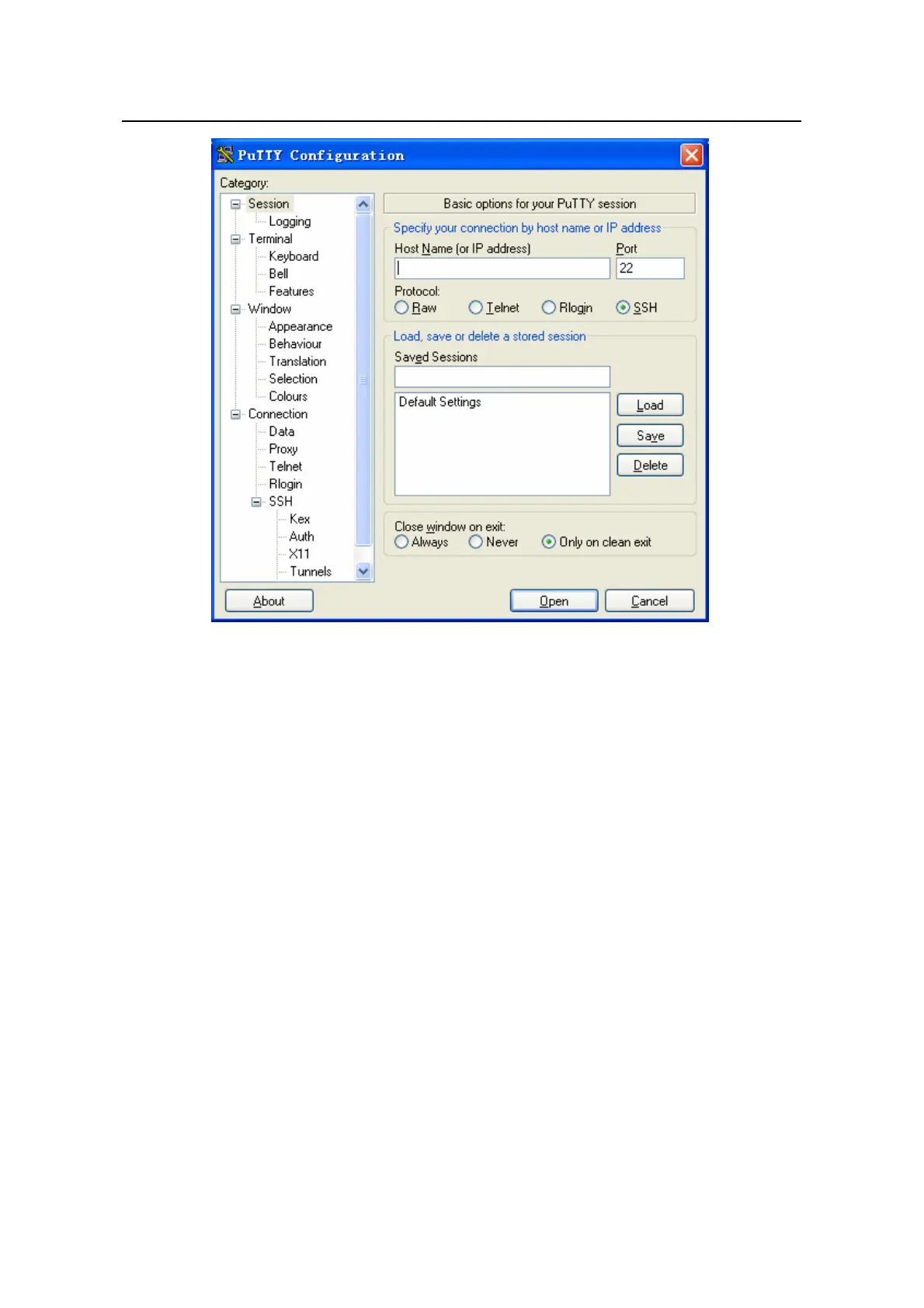

Figure 1-8 SSH client configuration interface 1
In the Host Name (or IP address) text box, enter the IP address of the server, Note
that there must be a route available between the IP address of the server and the client.
III. Selecting the Protocol for Remote Connection
As shown in Figure 1-8, select SSH under Protocol.
IV. Selecting the SSH Version
From the category on the left pane of the window, select SSH under Connection. The
window as shown in
Figure 1-9 appears.
