H3C S3600 Series User Manual

Operation Manual – Login
H3C S3600 Series Ethernet Switches-Release 1510
Chapter 5 Logging in through Web-based Network
Management System
5-2
[H3C-luser-admin] password simple admin
3) Establish an HTTP connection between your PC and the switch, as shown in the
following figure.
PC
HTTP Connection
Sw itc h
PC
HTTP Connection
PC
HTTP Connection
Sw itc h
PC
HTTP connection
PC
HTTP Connection
Sw itc h
PC
HTTP Connection
PC
HTTP Connection
Sw itc h
PC
HTTP connection

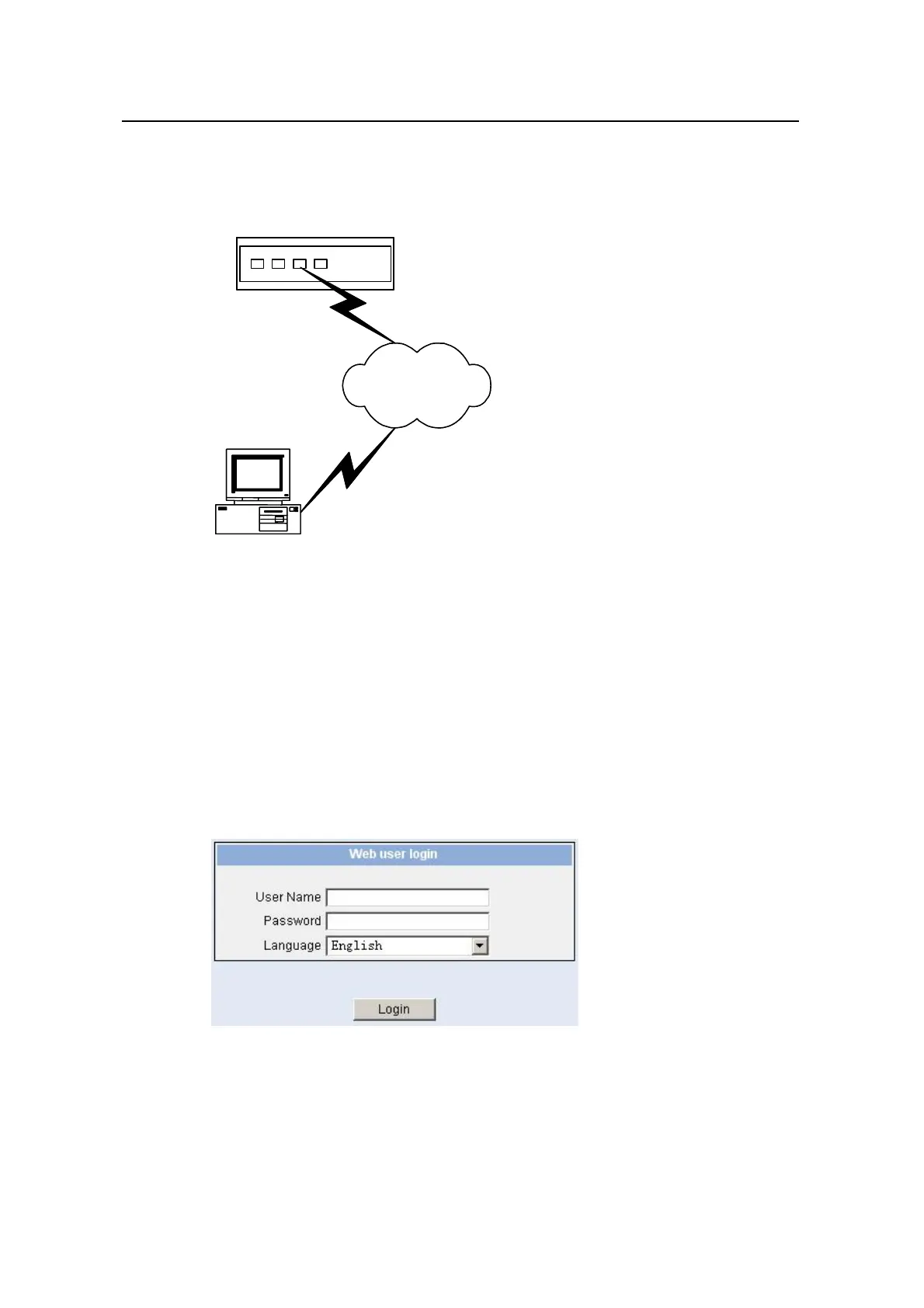

Figure 5-1 Establish an HTTP connection between your PC and the switch
4) Log into the switch through IE. Launch IE on the Web-based network
management terminal (your PC) and enter the IP address of the management
VLAN interface of the switch (here it is http://10.153.17.82) in the address bar.
(Make sure the route between the Web-based network management terminal and
the switch is available.)
5) When the login interface (as shown in
Figure 5-2) appears, enter the user name
and the password configured in step 2 and click <Login> to bring up the main page
of the Web-based network management system.
Figure 5-2 The login page of the Web-based network management system
5.3 Web Server Shutdown/Startup
You can shut down or start up the Web server.
