H3C S3600 Series User Manual

Operation Manual – SSH Terminal Service
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1
SSH Terminal Service
1-17

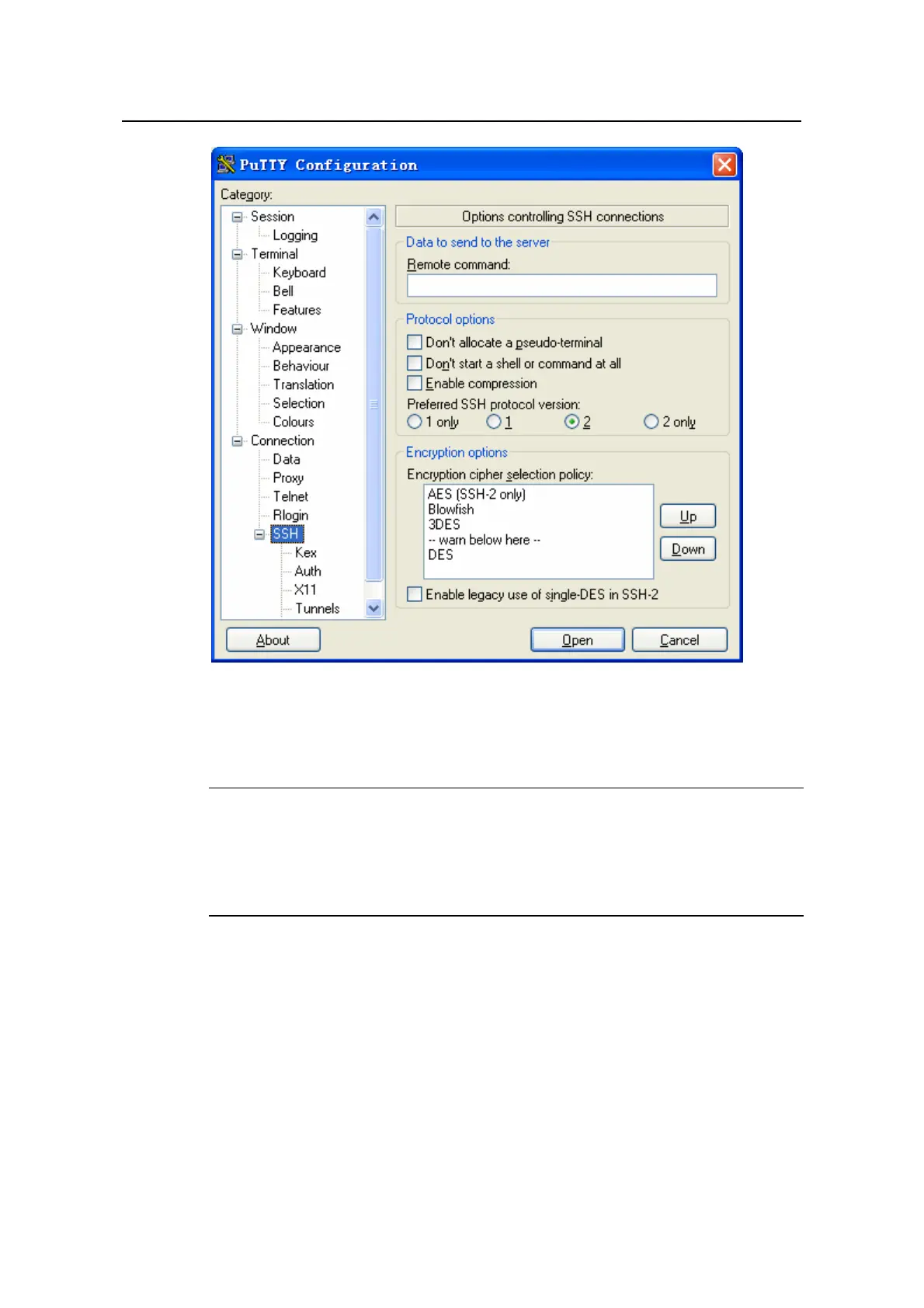

Figure 1-9 SSH client configuration interface 2
Under Protocol options, select 2 from Preferred SSH protocol version.
 Note:
Some SSH client software, for example, Tectia client software, supports the DES
algorithm only when the ssh1 version is selected. The PuTTY client software supports
DES algorithm negotiation ssh2.
V. Opening an SSH Connection with RSA
If the client needs to use RSA authentication, you must specify the RSA private key file.
If the client needs to use password authentication, this is not required.
From the category on the left of the window, Select Connection/SSH/Auth. The
following window appears.
