II. Network diagram
Unit 2
Unit 1
Unit3
Unit 4
IRF
Switch
Unit 2
Unit 1
Unit3
Unit 4
Switch
Unit 2
Unit 1
Unit3
Unit 4
IRF
Switch
Unit 2
Unit 1
Unit3
Unit 4
Switch

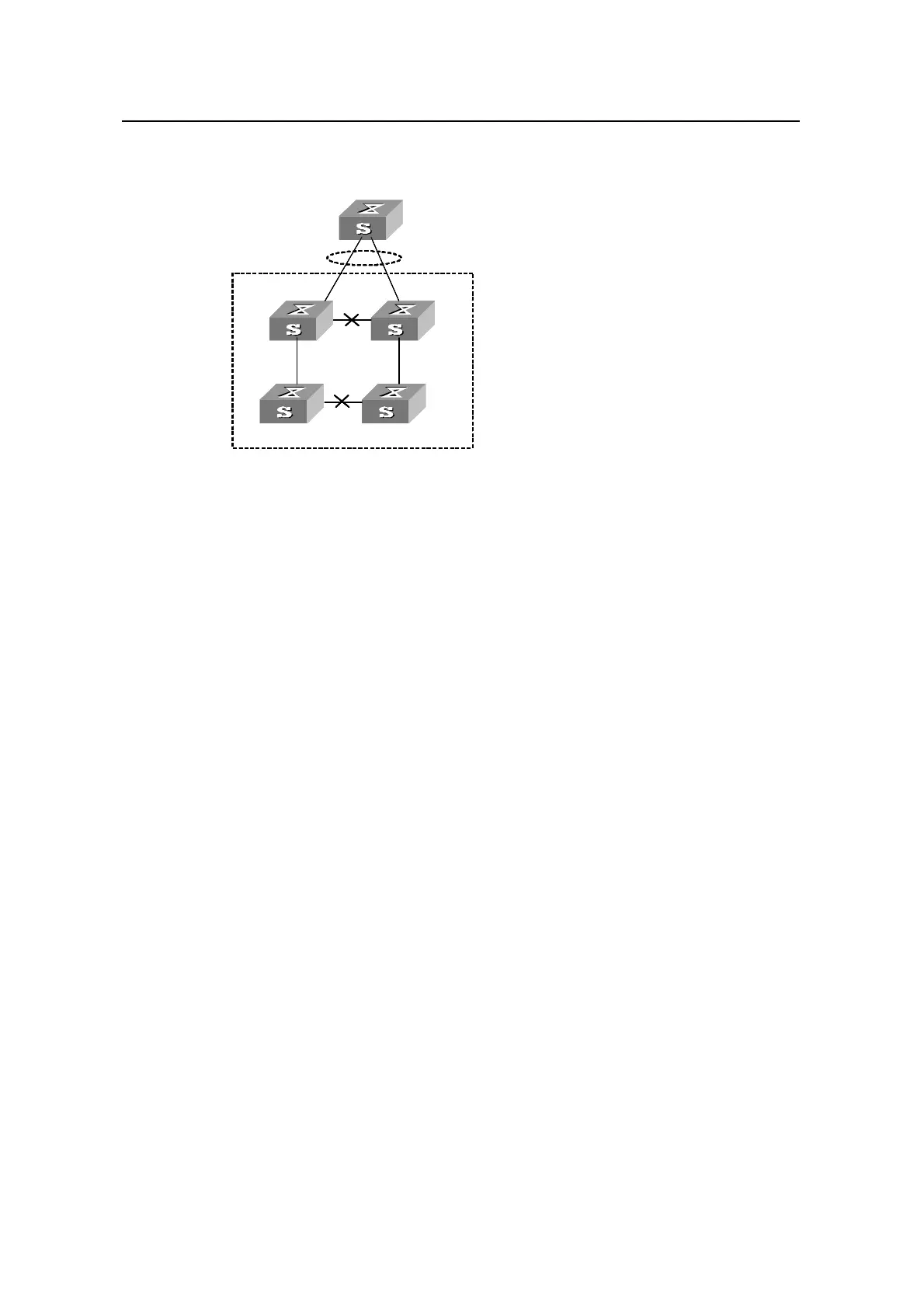

Figure 2-1 Network diagram for Resilient ARP
III. Configuration procedure
# Enable the Resilient ARP function.
<H3C> system-view
[H3C] resilient-arp enable
# Configure the Resilient ARP packets to be sent through the VLAN-interface2.
[H3C] resilient-arp interface Vlan-interface 2
