Operation Manual – Port Basic Configuration

H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1 Port Basic Configuration

1-13

1.3 Ethernet Port Configuration Example

I. Network requirements

z Switch A and Switch B are connected to each other through two trunk port

(Ethernet1/0/1).

z Configure the default VLAN ID of both Ethernet1/0/1 to 100.

z Allow the packets of VLAN 2, VLAN 6 through VLAN 50 and VLAN 100 to pass

both Ethernet1/0/1.

II. Network diagram

Switch A

Switch B

E1/0/1

Switch A

Switch B

E1/0/1

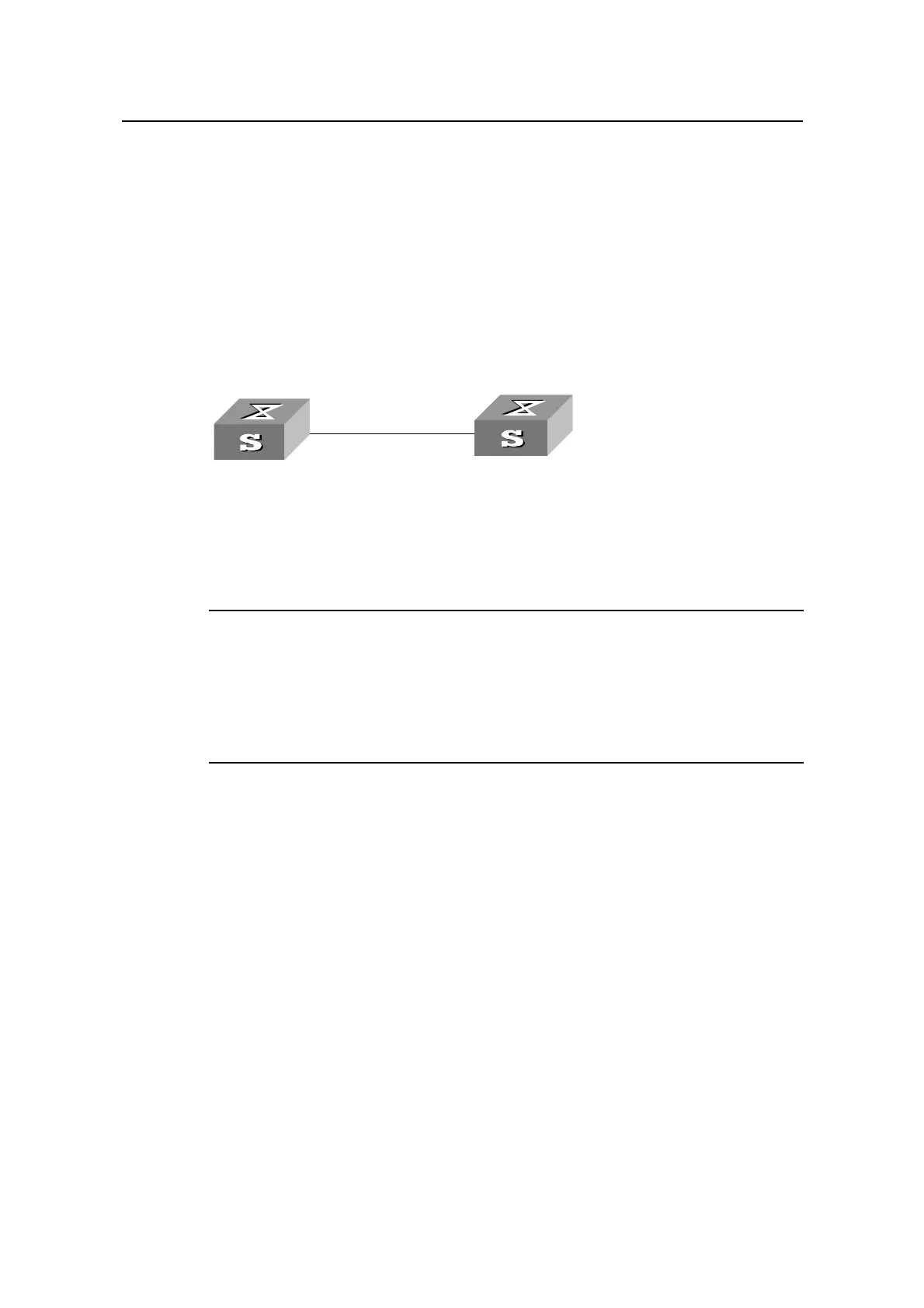

Figure 1-1 Network diagram for Ethernet port configuration

III. Configuration procedure

 Note:

z Only the configuration for Switch A is listed below. The configuration for Switch B is

similar to that of Switch A.

z This example supposes that VLAN 2, VLAN 6 through VLAN 50 and VLAN 100 have

been created.

# Enter Ethernet port view of Ethernet1/0/1.

<H3C> system-view

System View: return to User View with Ctrl+Z.

[H3C] interface ethernet1/0/1

# Set Ethernet1/0/1 as a trunk port.

[H3C-Ethernet1/0/1] port link-type trunk

# Allow packets of VLAN 2, VLAN 6 through VLAN 50 and VLAN 100 to pass

Ethernet1/0/1.

[H3C-Ethernet1/0/1] port trunk permit vlan 2 6 to 50 100

# Configure the default VLAN ID of Ethernet1/0/1 to 100.

[H3C-Ethernet1/0/1] port trunk pvid vlan 100
