Operation Manual – Multicast

H3C S3600 Series Ethernet Switches-Release 1510 Chapter 7 PIM Configuration

7-20

7.6 PIM Configuration Example

7.6.1 PIM-DM Configuration Example

I. Network requirements

Lanswitch1 is connected to Multicast Source through VLAN-interface10, to Lanswitch2

through VLAN-interface11 and to Lanswitch3 through VLAN-interface12. Through

PIM-DM, multicast is implemented among Receiver 1, Receiver 2, and Multicast

Source.

II. Network diagram

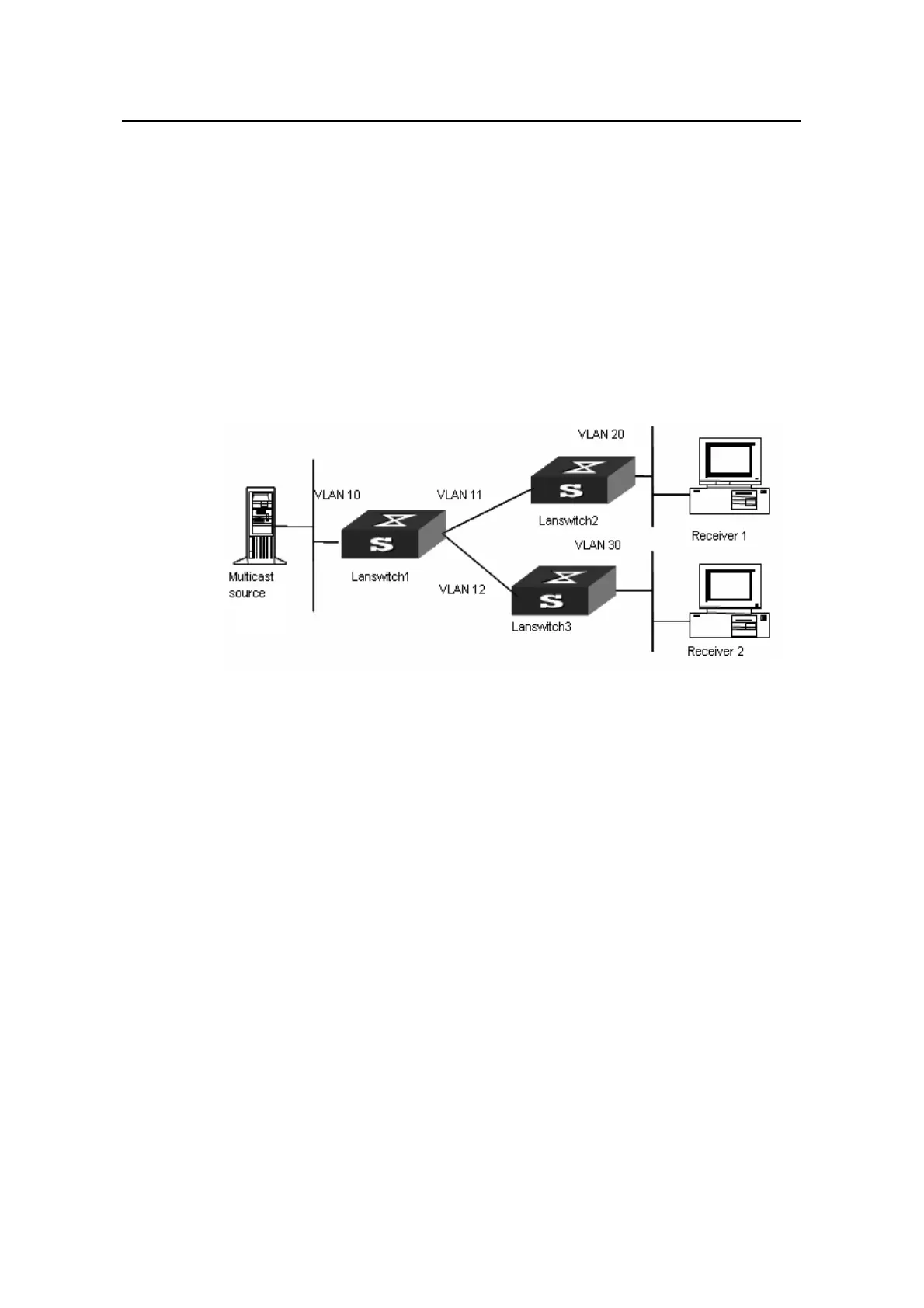

Figure 7-7 Network diagram for PIM-DM configuration

III. Configuration procedure

1) Configure Lanswitch1.

# Enable multicast routing protocol.

<H3C> system-view

[H3C] multicast routing-enable

# Enable IGMP and PIM-DM on the interfaces.

[H3C] vlan 10

[H3C-vlan10] port Ethernet 1/0/2 to Ethernet 1/0/3

[H3C-vlan10] quit

[H3C] vlan 11

[H3C-vlan11] port Ethernet 1/0/4 to Ethernet 1/0/5

[H3C-vlan11] quit

[H3C] vlan 12

[H3C-vlan12] port Ethernet 1/0/6 to Ethernet 1/0/7

[H3C-vlan12] quit

[H3C] interface Vlan-interface 10

[H3C-Vlan-interface10] ip address 1.1.1.1 255.255.0.0
