H3C S3600 Series User Manual

Operation Manual – NTP
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 1
NTP Configuration
1-19
1.7.4 Configuring NTP Multicast Mode
I. Network requirements
The local clock of H3C3 is set to the NTP master clock, with a clock stratum level of 2.
H3C3 advertises multicast packets through Vlan-interface2.
S3600-1 and S3600-2 respectively listen to multicast packets through their own
Vlan-interface2.
 Note:
This example assumes that H3C3 is a switch that supports the local clock being the
master clock.
II. Network diagram
H3C 3
3.0.1.31/24
3.0.1.32/24
rface 2
rface 2
S3600-2 H3C 4
1.0.1.31/24
Vlan-inte
Vlan-inte
-interface 2
S3600-1
Vlan
H3C 3
3.0.1.31/24
3.0.1.32/24
rface 2
rface 2
S3600-2 H3C 4
1.0.1.31/24
Vlan-inte
Vlan-inte
-interface 2
S3600-1
Vlan

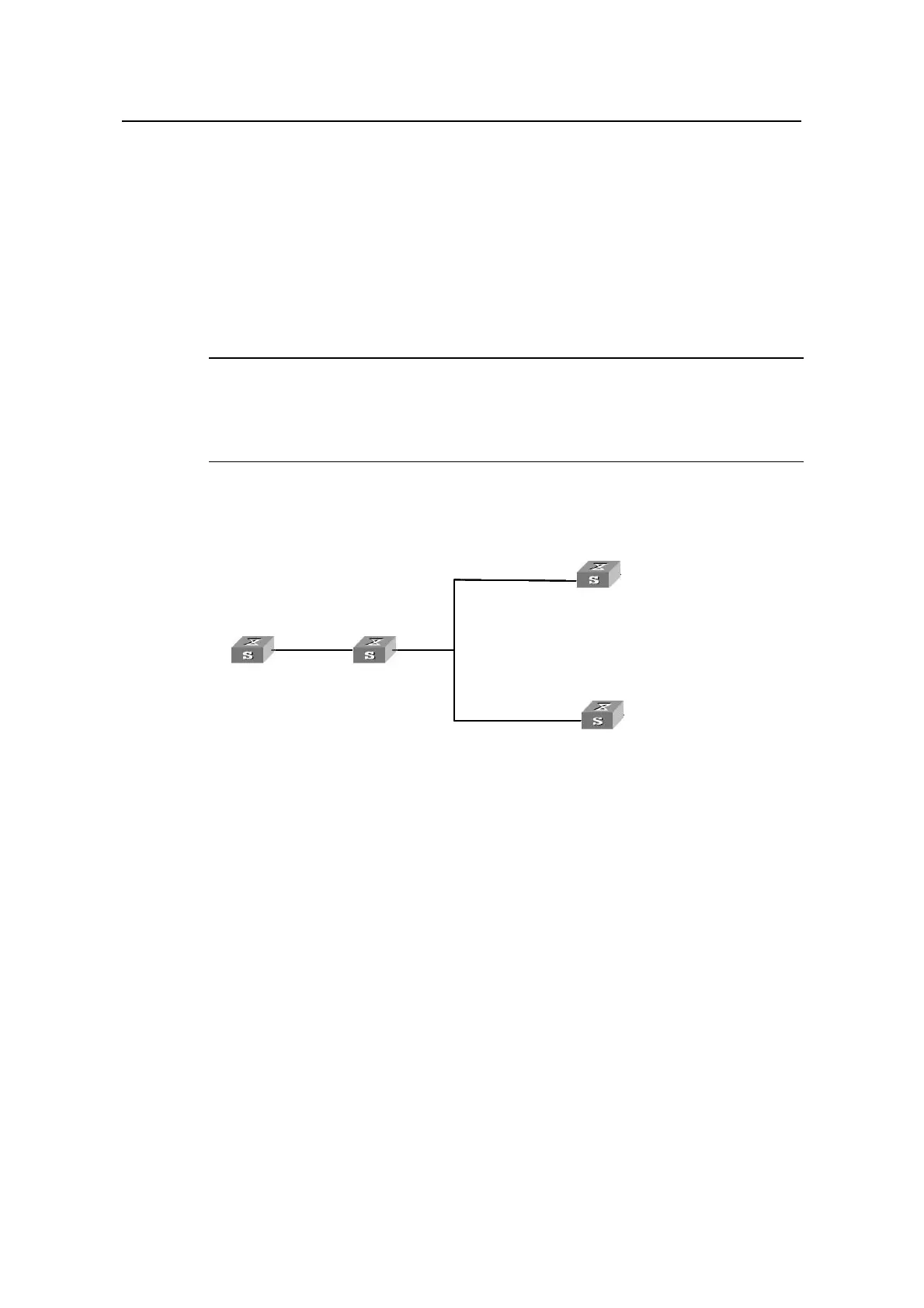

Figure 1-9 Network diagram for NTP multicast mode configuration
III. Configuration procedure
1) Configure H3C3.
# Enter system view.
<H3C3> system-view
[H3C3]
# Enter VLAN-interface2 view.
[H3C3] interface Vlan-interface 2
# Set H3C3 to a multicast server.
[H3C3-Vlan-interface2] ntp-service multicast-server
2) Configure S3600-1.
# Enter system view.
<S3600-1> system-view
