H3C S3600 Series User Manual

Operation Manual – AAA-RADIUS-HWTACACS-EAD
H3C S3600 Series Ethernet Switches-Release 1510
Chapter 1 AAA & RADIUS & HWTACACS
Configuration
1-9
User
HWTACACS
Client
HWTACACS
Serv er
Requests to log in
Authentication start request
Authentication response,
requesting username
Requests username
Enters username
Authentication continuance message,
carrying username
Authentication response,
requesting password
Requests password
Enters password
Authentication continuance message,
carrying password
Authentication success response
Authorization request
Authorization success response
Allows user to log in
Accounting start request
Accounting start response
Exits the switch
Accounting stop request
Accounting stop response
User
HWTA CACS
Client
HWTA CACS
Server
User
HWTACACS
Client
HWTACACS
Serv er
Requests to log in
Authentication start request
Authentication response,
requesting username
Requests username
Enters username
Authentication continuance message,
carrying username
Authentication response,
requesting password
Requests password
Enters password
Authentication continuance message,
carrying password
Authentication success response
Authorization request
Authorization success response
Allows user to log in
Accounting start request
Accounting start response
Exits the switch
Accounting stop request
Accounting stop response
User
HWTA CACS
Client
HWTA CACS
Server

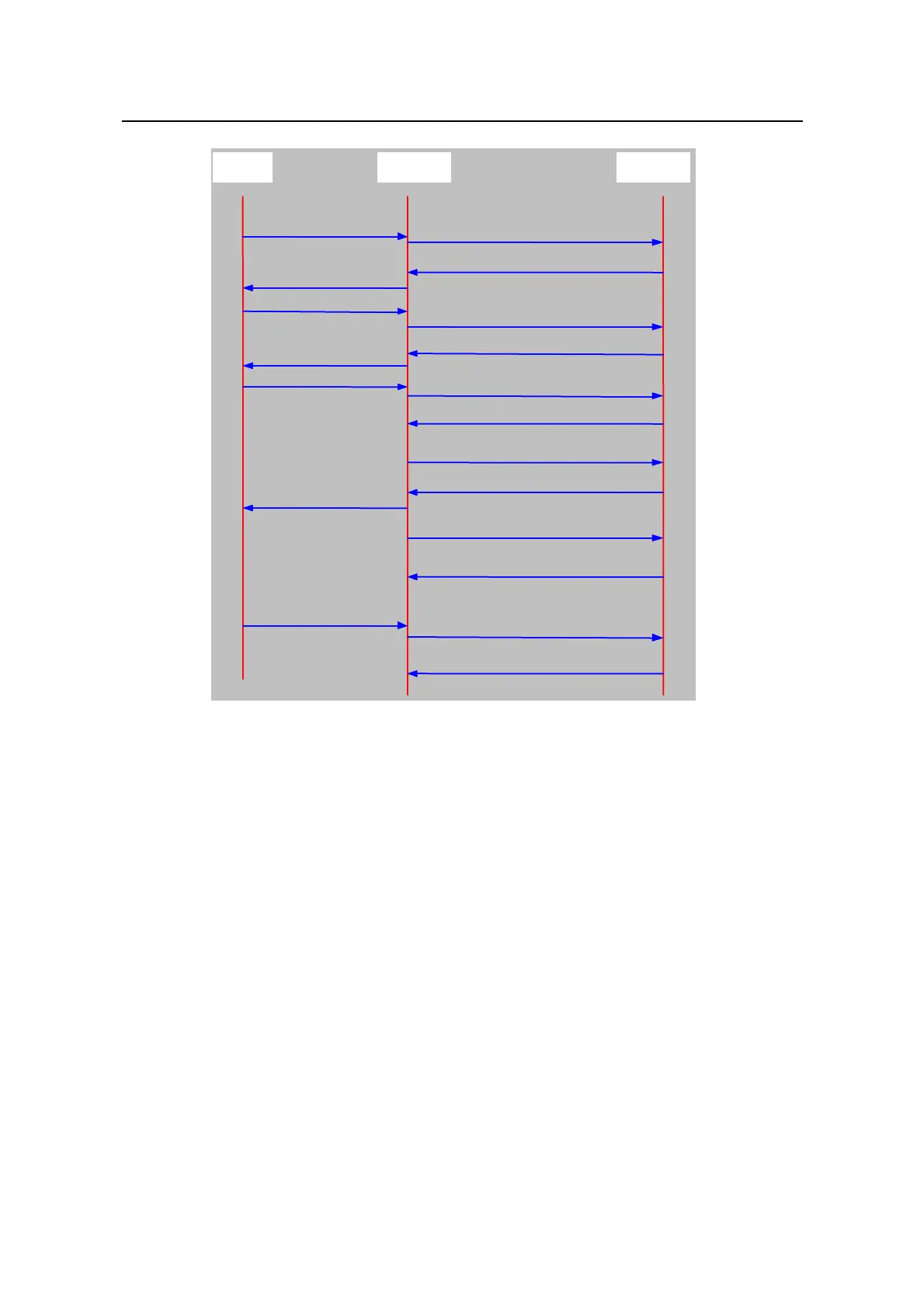

Figure 1-6 AAA implementation procedure for a telnet user
The basic message exchange procedure is as follows:
1) A user sends a login request to the switch acting as a TACACS client, which then
sends an authentication start request to the TACACS.
2) The TACACS server returns an authentication response, asking for the username.
Upon receiving the response, the TACACS client requests the user for the
username.
3) After receiving the username from the user, the TACACS client sends an
authentication continuance message carrying the username.
4) The TACACS server returns an authentication response, asking for the password.
Upon receiving the response, the TACACS client requests the user for the login
password.
5) After receiving the password, the TACACS client sends an authentication
continuance message carrying the password to the TACACS server.
6) The TACACS server returns an authentication response, indicating that the user
has passed the authentication.
7) The TACACS client sends a user authorization request to the TACACS server.
