H3C S3600 Series User Manual

Operation Manual – Login
H3C S3600 Series Ethernet Switches-Release 1510 Chapter 3
Logging in through Telnet
3-16
z Perform the following operations in the terminal window to assign an IP address to
the management VLAN interface of the switch.
# Enter system view
<H3C> system-view
# Enter management VLAN interface view.
[H3C] interface Vlan-interface 1
# Cancel original IP address of management VLAN.
[H3C-Vlan-interface1] undo ip address
# Set the IP address of the management VLAN interface to 202.38.160.92, with the
mask set to 255.255.255.0.
[H3C-Vlan-interface1] ip address 202.38.160.92 255.255.255.0
2) Perform Telnet-related configuration on the switch. Refer to section 3.2 "Telnet
Configuration with Authentication Mode Being None
”, section 3.3 “Telnet
Configuration with Authentication Mode Being Password
”, and section 3.4 “Telnet
Configuration with Authentication Mode Being Scheme
” for more.
3) Connect your PC/terminal and the Switch to an Ethernet, as shown in
Figure 3-6.
Make sure the port through which the switch is connected to the Ethernet belongs
to the management VLAN and the route between your PC and the management
VLAN interface is reachable.
Workstation
Workstation
Server
PC w i
runnin
(used
the sw
th Telnet
g on it
to configure
itch)
Ethernet port
Ethe rnet
Workstation
Workstation
Server
PC w i
runnin
(used
the sw
th Telnet
g on it
to configure
itch)
Ethernet port
Ethe rnet

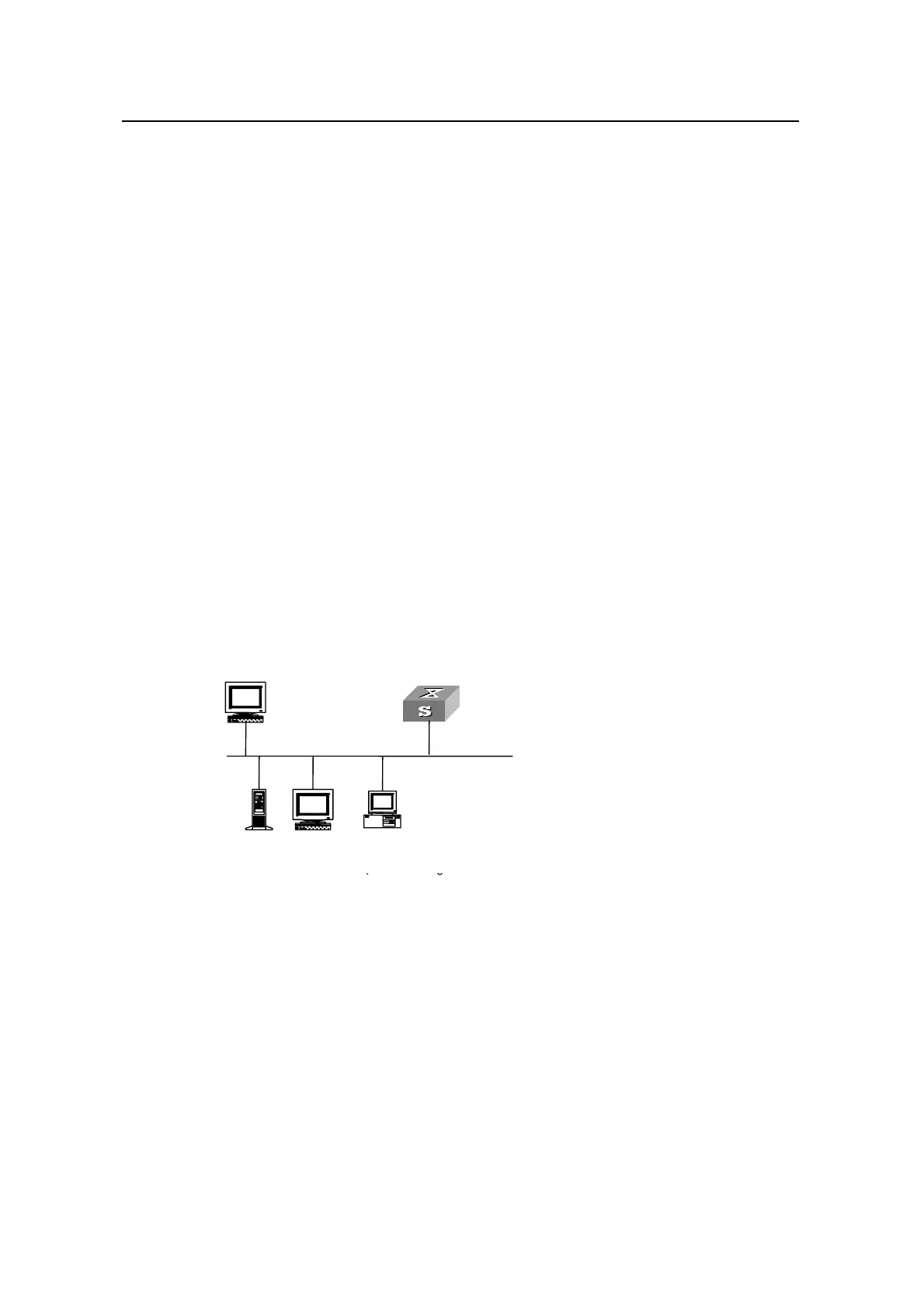

Figure 3-6 Network diagram for Telnet connection establishment
4) Launch Telnet on your PC, with the IP address of the management VLAN interface
of the switch as the parameter, as shown in
Figure 3-7.
