H3C S3600 Series User Manual

Operation Manual – System Maintenance and Debugging
H3C S3600 Series Ethernet Switches-Release 1510
Chapter 1 BootROM and Host Software
Loading
1-6

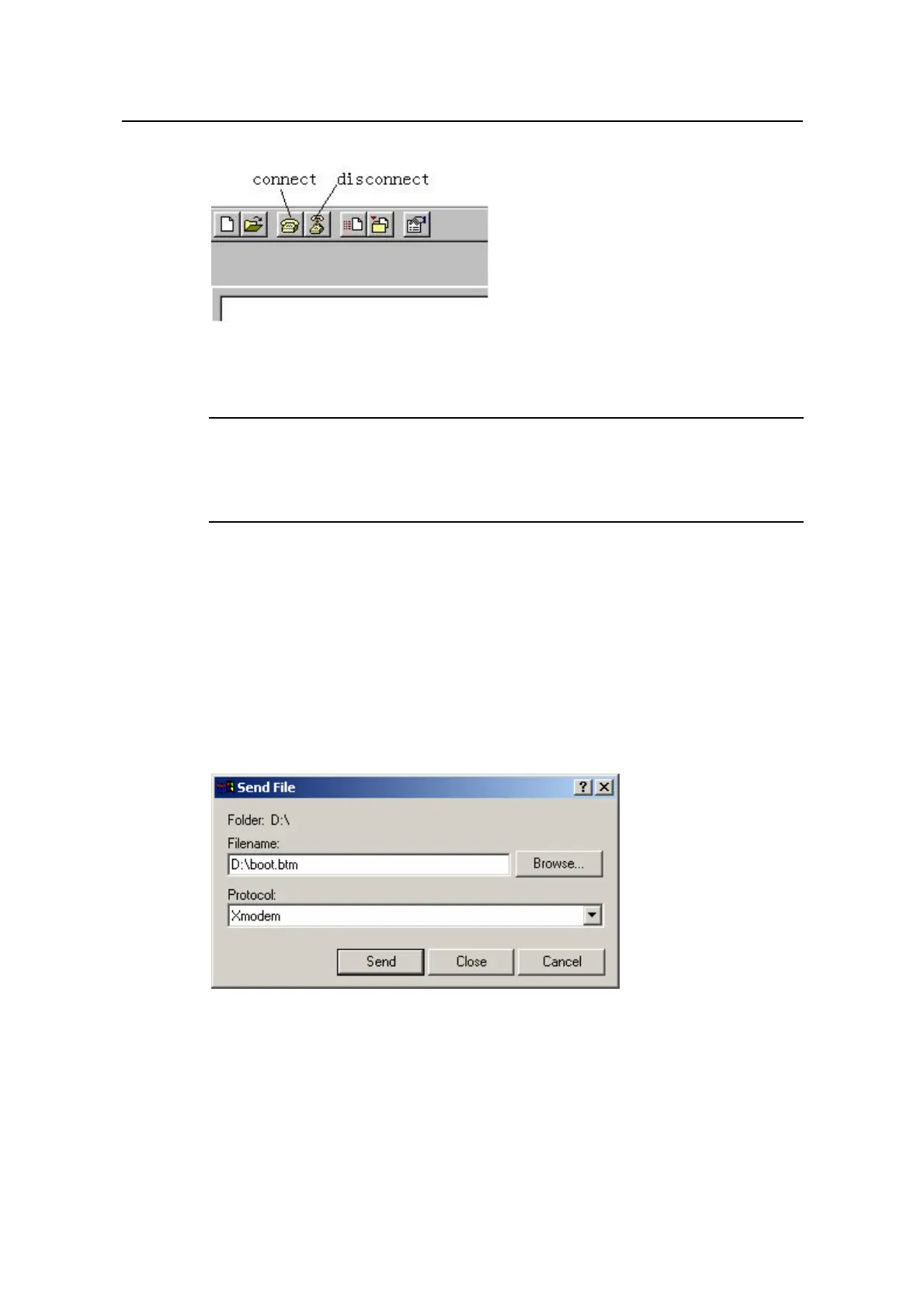

Figure 1-3 Connect and disconnect buttons
 Note:
The new baudrate takes effect after you disconnect and reconnect the HyperTerminal
program.
Step 6: Press <Enter> to start downloading the program. The system displays the
following information:
Now please start transfer file with XMODEM protocol.
If you want to exit, Press <Ctrl+X>.
Loading ...CCCCCCCCCC
Step 7: Choose [Transfer/Send File] in HyperTerminal, and click <Browse> in pop-up
dialog box, as shown in
Figure 1-4. Select the software file that you need to load to the
switch, and set the protocol to XModem.
Figure 1-4 Send file dialog box
Step 8: Click <Send>. The system displays the page, as shown in
Figure 1-5.
