iPECS eMG80 & eMG800 & UCP
Administration and Programming Manual Issue 1.6
9
2.2 Slot configuration for eMG80
The built-in interface ports, ports of the optional Interface boards and the optional Function
boards are organized into Slots. For the built-in and optional board interfaces two Slots are
defined, a Slot for the Stations and a Slot for the CO/IP Lines. The Function boards use a single
Slot to identify the board location. The Slots are used during the initialization routines, refer to
section 2.3, to identify the installed equipment and establish the numbering for the Stations,
CO/IP lines, and Function board channels. An additional Slot (Slot 18) is used by the software
to identify the Conferencing channels as a virtual board.

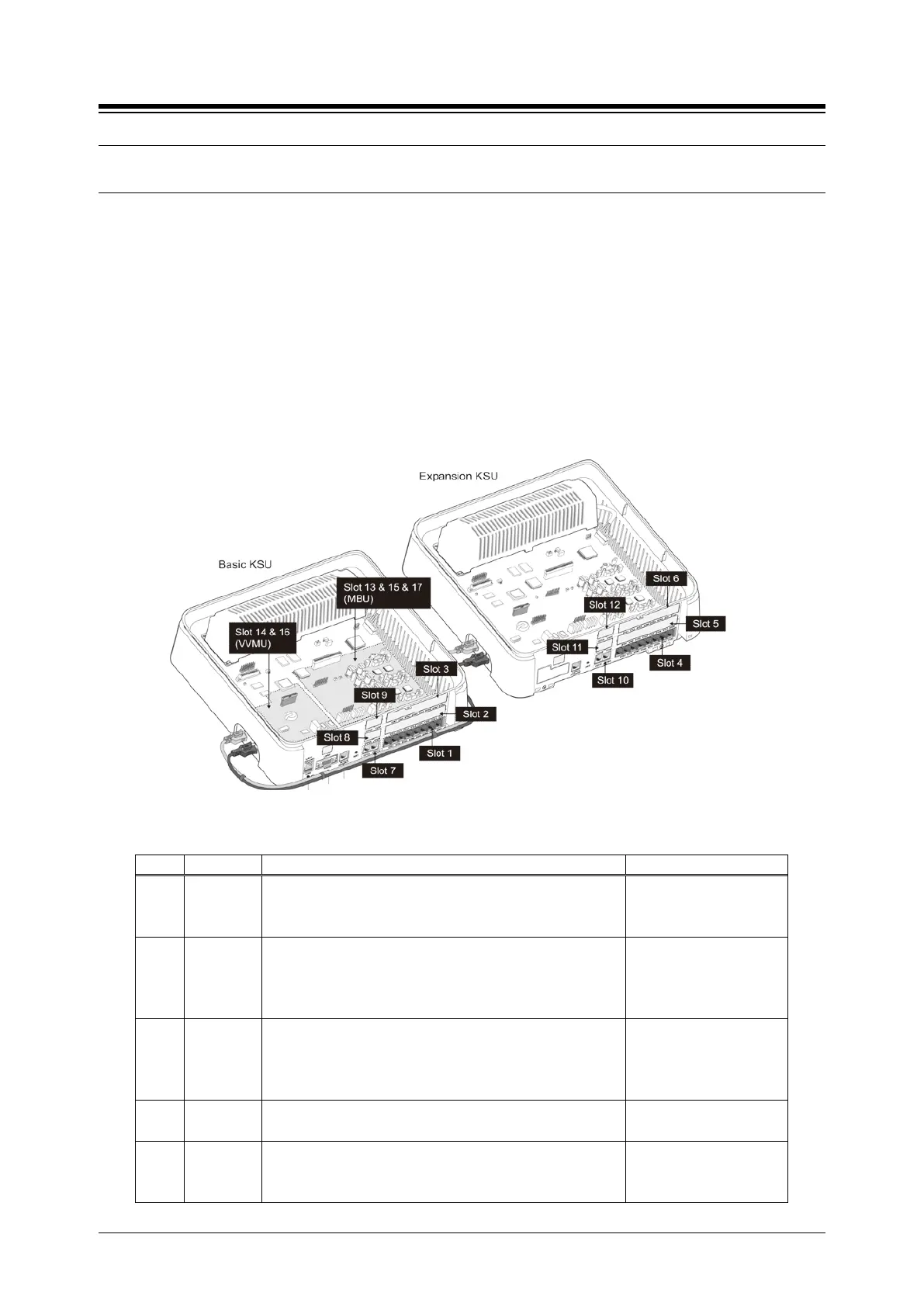

The figure below depicts the Slot locations and Table 2.2-1 lists the Slots, the hardware
designation for boards applicable for the Slot and the software reference for the type of
interfaces.
Table 2.2-1 eMG80 Slot Configuration (Standard)
Slot
KSU
H/W Reference
S/W Reference
1 KSU
Built-in KSU Station interface group
KSUA and KSUI: 1-DKT & 7-Hybrid
KSUAD & KSUID: 8-DKT &-4 SLT
HYIB8
DSIB12
2 KSU
CH204 or BH104
CH408, BH208 or HYB8
CS416 or SLIB16
WTIB4
HYIB4
HYIB8
SLIB16
WTIB4
3 KSU
CH204 or BH104
CH408, BH208 or HYB8
CS416 or SLIB16
WTIB4
HYIB4
HYIB8
SLIB16
WTIB4
4 EKSU
Built-in EKSU Station interface group
8-Hybrid
HYIB8
5 EKSU
CH204
CH408 or HYB8
CS416 or SLIB16
HYIB4
HYIB8
SLIB16
