4.4.5.14 RS-232 Port Settings - PGM 174
Selecting RS-232 Port and USB 1&2 port Settings will display the RS-232 Port and USB 1&2 port
Settings data entry page. Click [Save] button after changing Value.

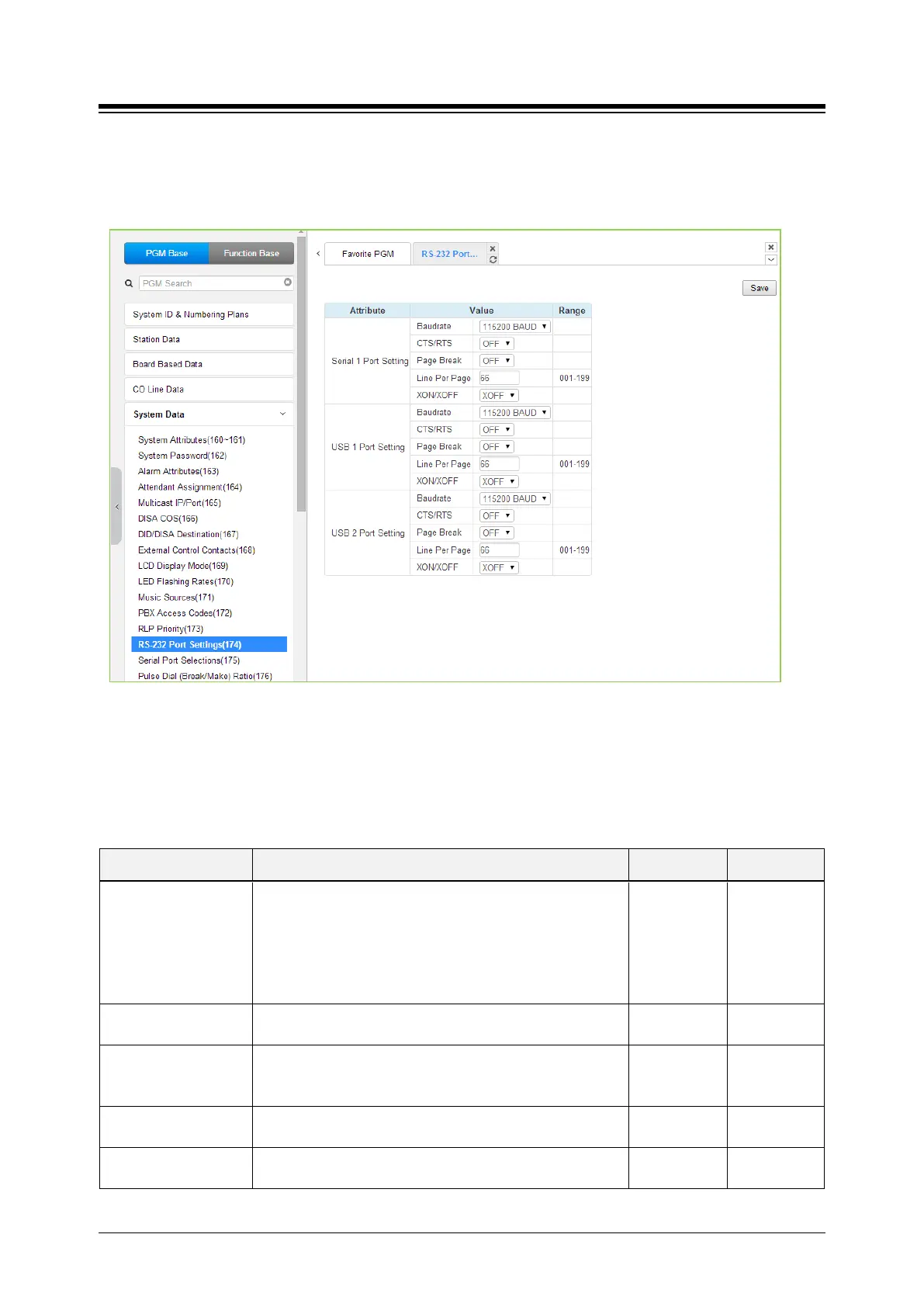

Figure 4.4.5.14-1 RS232 Port and USB 1&2 port Settings
Certain characteristics of each port are programmable including baud rate, RS 232 control, and
page settings. Refer to the following table for a description of the settings and the data entries
available.
Table 4.4.5.14-1 RS232 PORT and USB 1&2 port Settings
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Baud Rate
This entry establishes the BAUD rate for the RS-232 serial
port.
Unknown/
9600/
19200/
38400/
57600/
115200
CTS/RTS
The system’s RS232 port can support Clear-to-Send (CTS)
and Ready-to-Send (RTS), control leads.
OFF
OFF
Page Break
The system can send a page break command over the
serial port at the end of each page.
See Lines per Page below for page length set-up.
OFF
ON
OFF
Line Per Page
This entry sets the page length, the number of lines the
system will send before sending the page break.
001~199 66
XON/XOFF This entry enables/disables XON/XOFF protocol.
XON/
XOFF
To Next Page
