iPECS eMG80 & eMG800 & UCP
Administration and Programming Manual Issue 1.6
486
4.4.9.6 Toll Exception Table - PGM 224
Selecting Toll Exception Table will display the Toll Table data entry page. Select the desired
Allow or Deny Table, blue text above the table header, desired. Click [Save] button after
changing Value.

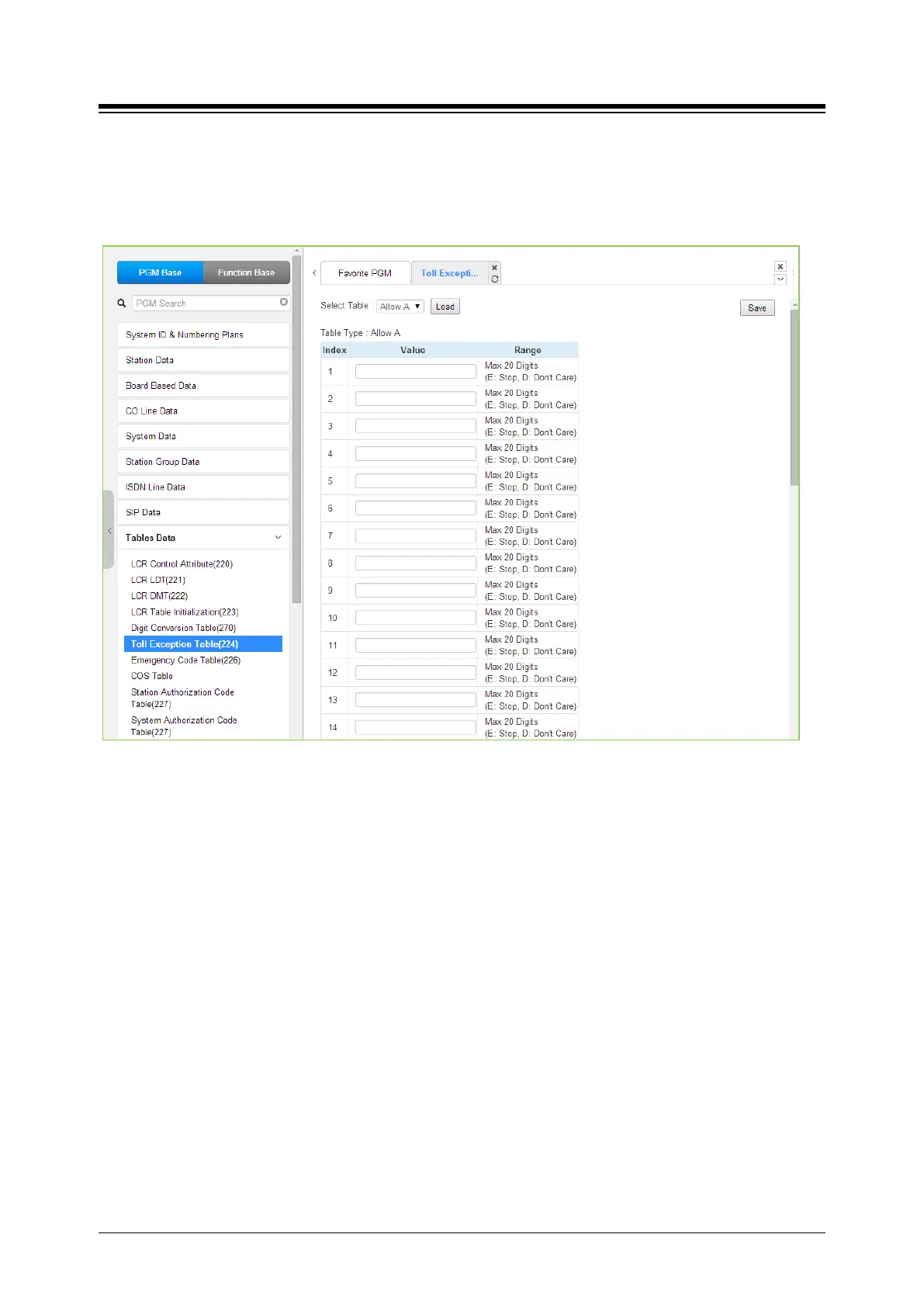

Figure 4.4.9.6-1 Toll Exception Table
There are ten Toll restriction Tables arranged in pairs. Each pair consists of an Allow Table and a
Deny Table. Allow and Deny entries for Table `A‘ apply to Station and DISA Class of Service 2/4
and 11. Allow and Deny entries for Table `B‘ apply to Station and DISA Class of Service 3/4 and
11. Allow and Deny entries for Table `C‘ apply to Station and DISA Class of Service 5 and 6.
Allow and Deny entries for Table `D‘ apply to Station and DISA Class of Service 8/10 and 11.
Allow and Deny entries for Table `E‘ apply to Station and DISA Class of Service 9 to 11. The
Allow and Deny Tables each permit up to 50 entries of up to 20 digits. Entries in the Tables can
be any digit (0-9), “#” as a wild card (don‘t care) digit, or “*” as an end of entry digit.
Based on Table entries, stations or DISA users are allowed or denied dialing specified numbers.
The following rules apply to establishing restrictions based on the Table entries:
If the appropriate Allow/Deny Table pair has no entries and COS is 2 to 4, no
restrictions are applied. If the COS is 5 or 6, no Long Distance dialing is allowed.
If entries are only made in the Allow Table, only those numbers entered can be dialed,
all other dialed numbers will be restricted.
If entries are only made in the Deny Table, only those numbers entered will be
restricted and all other numbers can be dialed.
When there are entries in both the Allow and Deny Table pair, if the number is in the
Deny Table, the number will be restricted otherwise the number can be dialed without
restriction.
