4.4.7.3 MSN Table - PGM 202
Selecting MSN Table will display the MSN Table data entry page. For convenience, the copy,
paste, and drag is available to enter or modify data. Click [Save] button after changing Value.
Enter Index Range
: eMG80: 1-500 / eMG800: 1-1500 / UCP: 1-2400

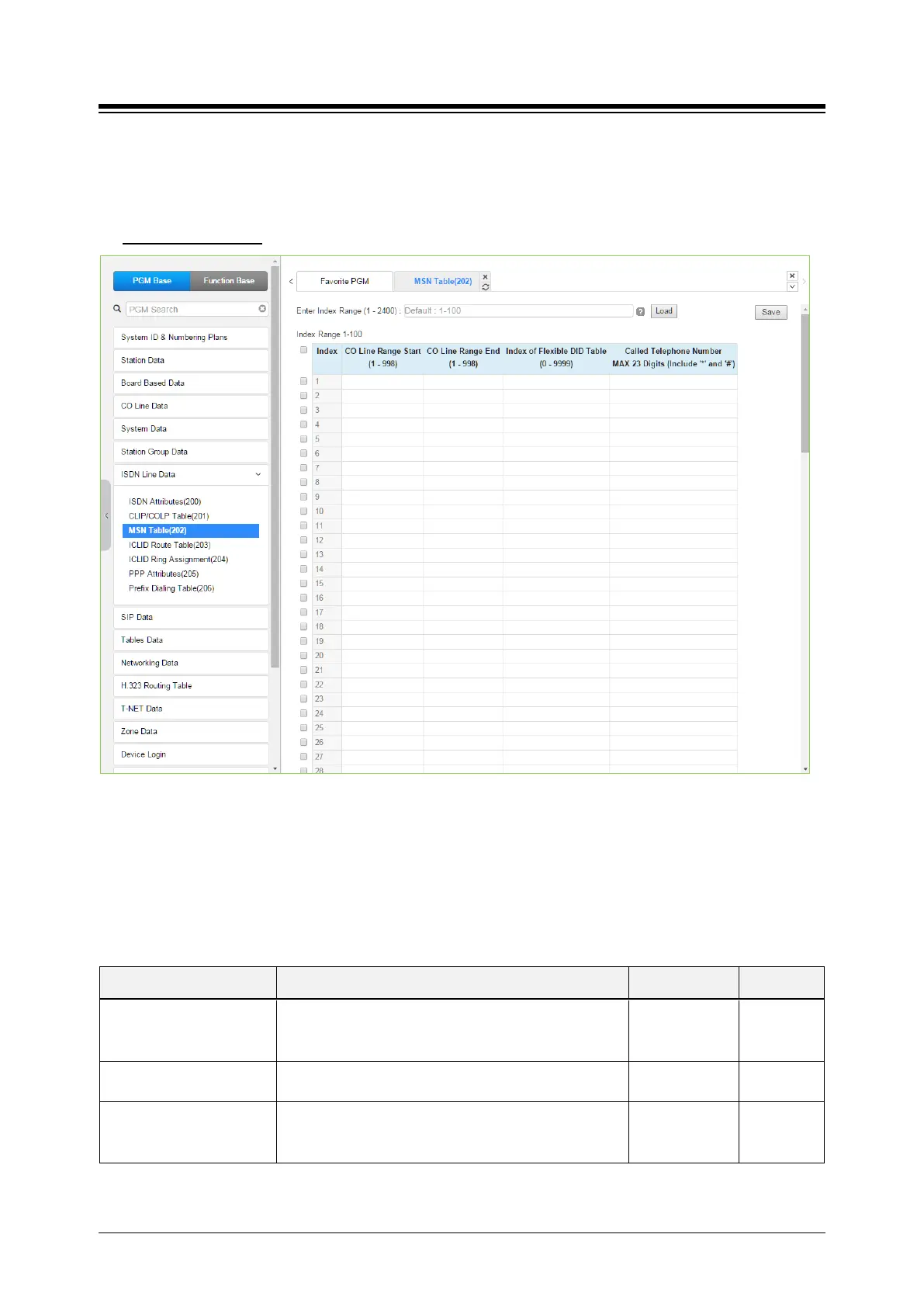

Figure 4.4.7.3-1 MSN Tables
When an ISDN Line assigned for DID operation receives an incoming call, the call will be routed
to a station based on the Flexible DID Table Index assigned in the MSN Table. Each iPECS
configuration has a different capacity as indicated by the entry range in the following table.
Table 4.4.7.3-1 MSN TABLE ATTRIBUTES
ATTRIBUTE DESCRIPTION RANGE DEFAULT
CO Line Range Enter the CO Line Range. eMG80:1-74
eMG800:1-600
UCP:1-998
None
Index of Flexible DID Table Index to the Flexible DID Table. 0~9999 None
Called Telephone Number
When the received MSN number matches this entry,
the call is routed based on the DID Table index entered
above.
Max. 23 Digits
(Include * and #)
None
