4.4.5.32 Access Control List – PGM 255
Access Control List will display the access control attributes data entry page. Enter a valid index
range and click [Load] to enter ACL data. Click [Save] button after changing Value.

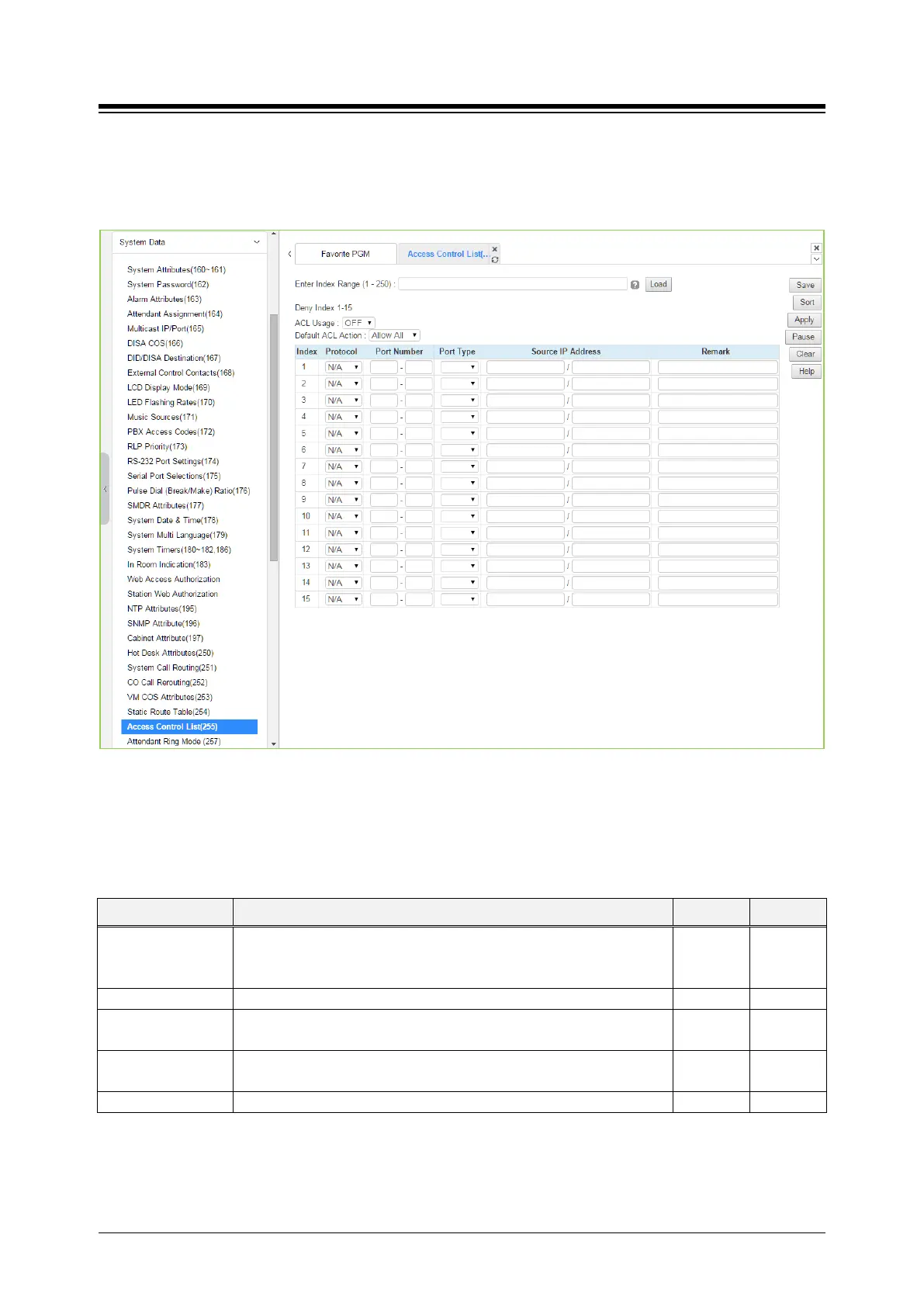

Figure 4.4.5.32-1 Access Control List
Access Control determines the Source IP addresses that can access the system for specific
protocols.
Table 4.4.5.32-1 ACCESS CONTROL LIST
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Protocol This field defines the accessing protocol type.
N/A, ALL,
TCP, UDP,
ICMP
N/A
Port number
This field further defines the protocol TCP/IP port number.
Port type
The port number can be configured as either the source or destination
port number.
DEST/
SRC
Source IP address
The allowed source IP address and net mask allowed access is
defined by this field.
Remark
This is a general remark field.
