4.4.12.3 T-NET LM Attributes -PGM 332
Selecting T-Net LM Attributes will display as below. Click [Save] button after changing Value.

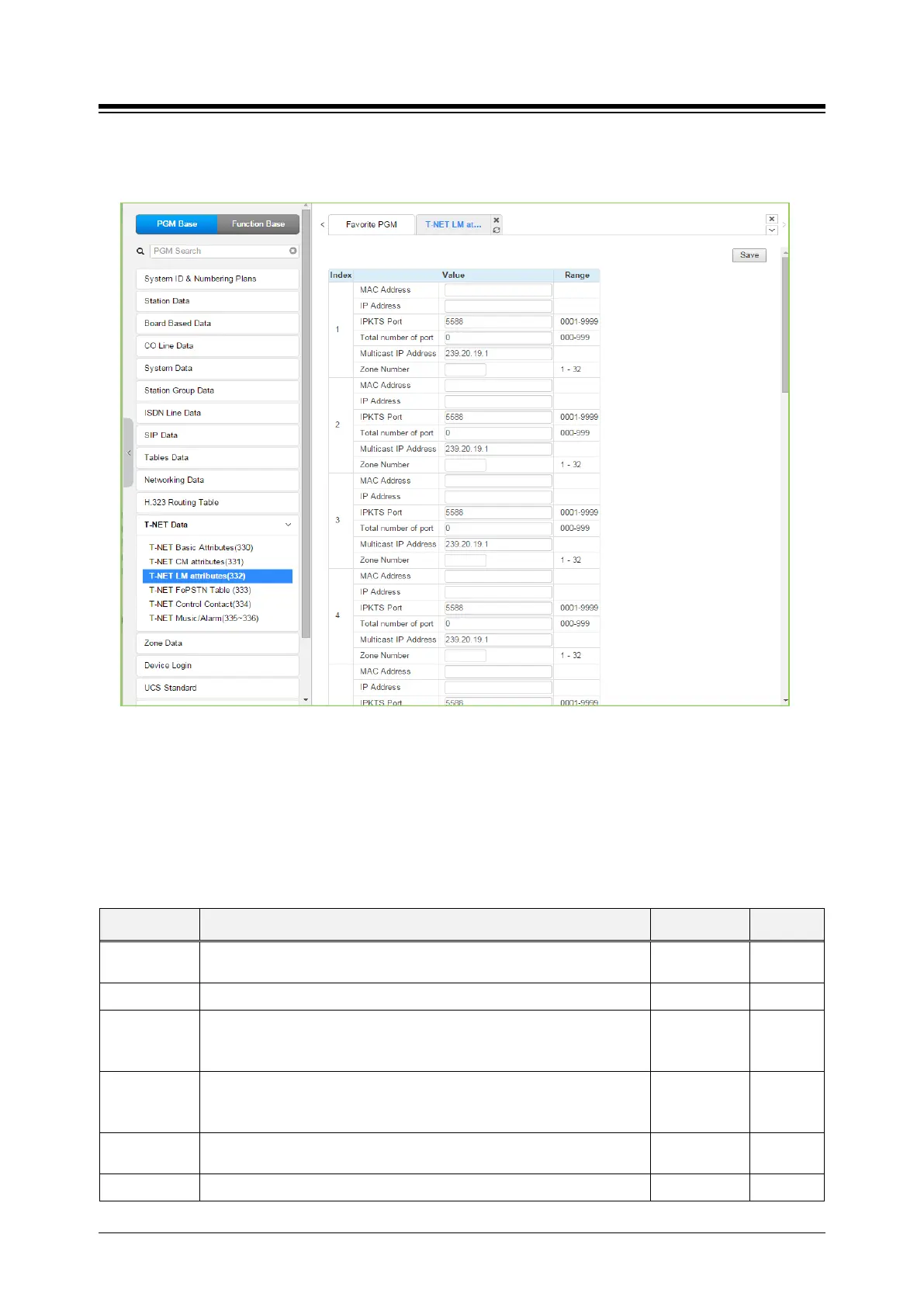

Figure 4.4.12.3-1 T-NET LM Attributes
The CM (Central iPECS system) must be programmed with the MAC and IP address of each LM
(Local iPECS system) in the Centralized Control network as well as the maximum configuration of
each LM. Up to 100 Local iPECS system (LMs) may be defined and configuration entered. The
port counts define the ports that are allocated in the CM database for use by devices registered to
the LM. The number of ports defined in the database for each LM in PGM 331, must be equal to
or less than the ports defined in the CM for the LM, in order to register properly.
Table 4.4.12.3-1 T-NET LM ATTRIBUTES
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Mac Address
This field defines the MAC address of the LM that will be part of the T-
NET environment and is used by the CM for authorization.
MAC address
IP Address This field is the IP address of the LM. IPv4 address
IPKTS Port
In the T-NET environment, the IP KTS protocol signaling UDP port is
defined. At present this field is not used, do not change this port
number.
0001-9999 5588
Total no of
port
This field defines the total number of ports the LM will request from the
CM for devices attached to the LM. This value must be equal to or more
than the port count defined in the LM.
000-999 0
Multicast IP
address
This field defines the multicast IP address that could be used in T-NET
branch site.
IPv4 address
Zone number Zone number can be assigned to Device or GW. 1-32
