4.4.4.5 CO/IP Ring Assignment - PGM 144
Selecting CO/IP Ring Assignment will display the CO/IP Ring Assignment data input page. Enter
a valid CO range and click [Load] to enter the CO/IP Ring Assignment data. Use the check mark
to indicate which attributes to modify; data for checked attributes is stored by clicking [Save]
button.
Enter CO Range
: eMG80: 1-74 / eMG800: 1-600 / UCP: 1-998

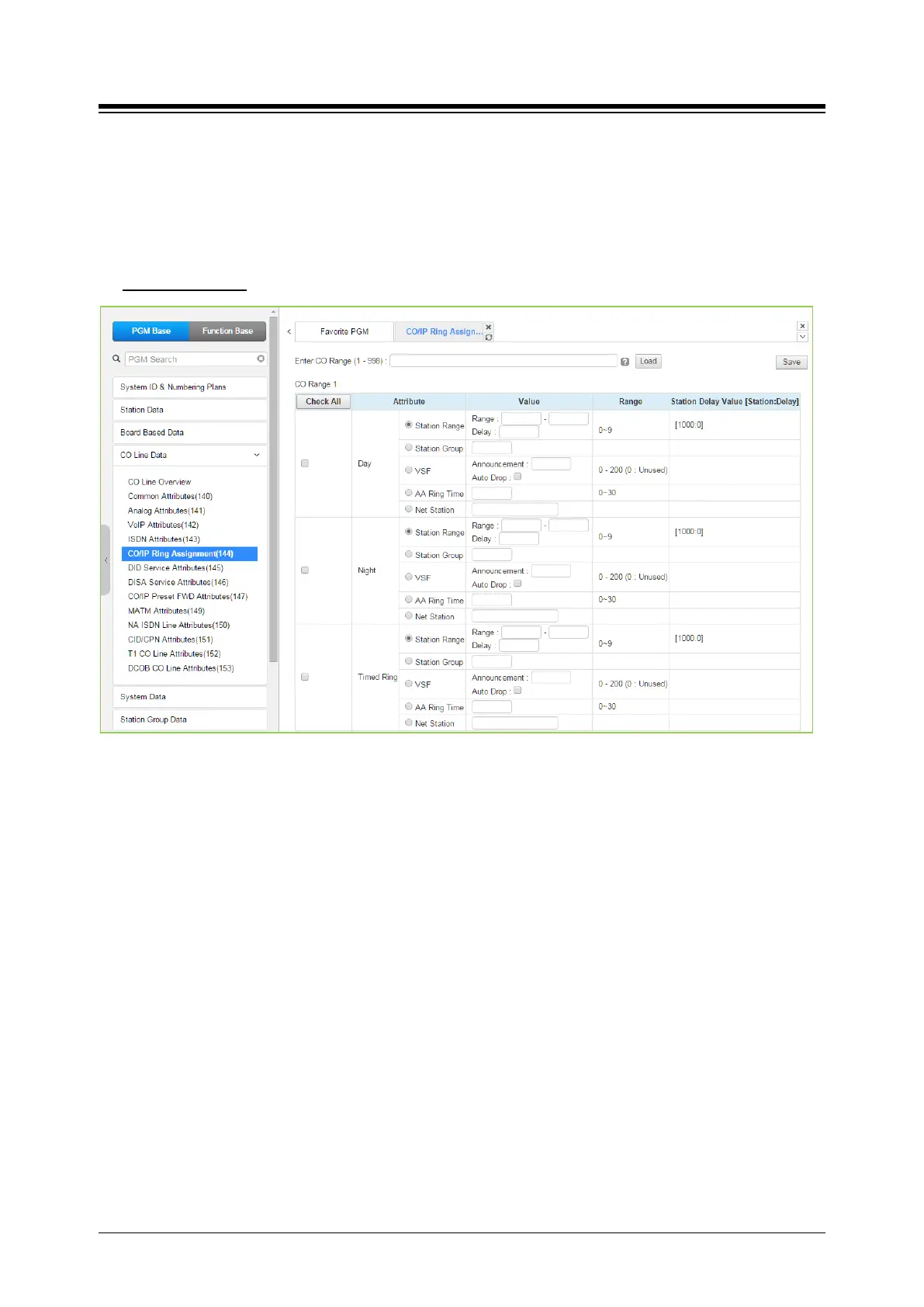

Figure 4.4.4.2-1 CO/IP Ring Assignment
Each “Normal” CO/IP line is assigned to signal a station, station group or VSF Announcement for
an incoming call (Ring). Separate ring assignments are made for Day, Night, and Timed Ring
mode. A delay from 1 to 9 Ring cycles can also be assigned, based on this assignment, the
station/Station group will receive audible ring after a delay of the number of Ring cycles entered.
In addition, when assigned to ring a VSF Announcement, the system can be programmed to
disconnect after the announcement, ‘Auto Drop’.
When CO/IP Lines are programmed to ring the built-in Auto Attendant, a delay of 0 to 30 seconds
can be assigned as the AA Ring Time. The delay allows stations to be assigned Ring and to
answer prior to signaling the AA. At expiration of the AA Ring Time, the call is sent to the
assigned VSF announcement or announcement 1 when no VSF announcement is assigned.
