4.4.13.4 Access & Page Relay – PGM 438
Selecting Access & Page Relay returns the Access & Page RTP packet relay data input page.
Enter the Sequence number Range (refer to section 4.4.1.4 System & Device IP Address Plan -
PGM 102 & 103) and click [Load] to define packet relay characteristics for Paging between
Zones. Click [Save] button after changing Value.
Enter Device/GW sequence Range
: eMG80: 1-300 / eMG800: 1-2890 / UCP: 1-3688

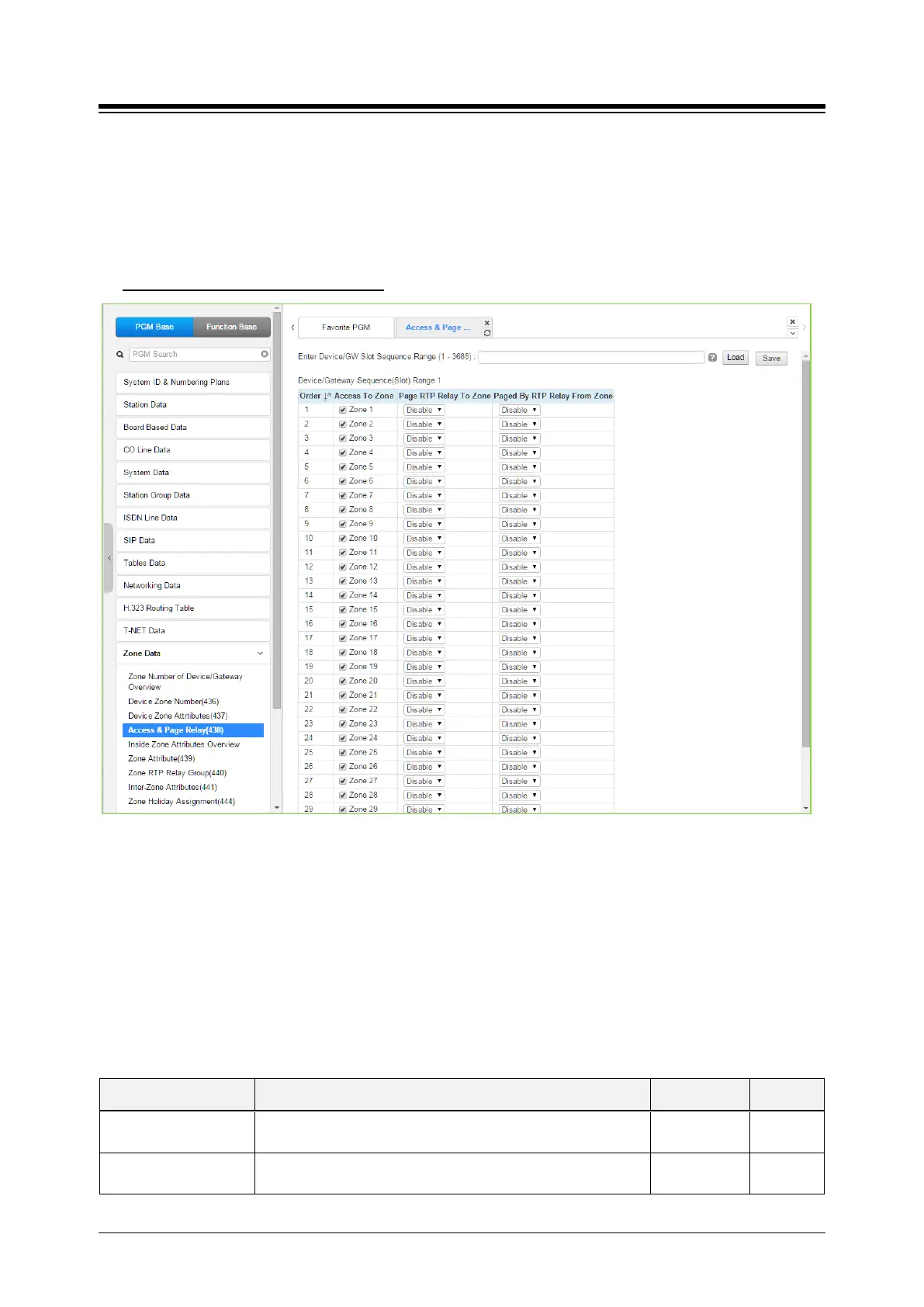

Figure 4.4.13.4-1 Zone Page RTP Packet Relay
iPECS protocol employs multi-cast to send of RTP packets to multiple devices at one time. This
improves efficiency and lowers traffic by sending a single multi-cast packet to multi-cast group
members. In particular, paging employs this multi-cast technique. However, since multi-cast is not
commonly supported outside of the LAN, uni-cast must be used to transport such signals
between routers. At the receiving Zone, a local VoIP channel receives the uni-cast signal from the
controlling MPB. The VoIP channel then converts the packet address to a multi-cast signal for
delivery to devices in the same Zone RTP Relay Group.
Table 4.4.13.4-1 Zone Page RTP Packet Relay
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Page RTP Relay to
Zone
The device can be configured to relay RTP packets for paging
to other zone members, Paging Rely.
Disable
Enable
Disable
Page By RTP Relay
From Zone
The device can be configured to receive relayed packets from
the assigned Zones(s).
Disable
Enable
Disable
