4.4.13.3 Device Zone Attributes – PGM 437
Selecting the Device Zone Attributes returns the Device Zone Attributes data input page. Enter
the Sequence number Range (refer to section 4.4.1.4 System & Device IP Address Plan - PGM
102 & 103) and click [Load] to assign a Zone number for the device. Use the check mark to
indicate which attributes to modify; data for checked attributes is stored by clicking [Save] button.
Enter Device/GW sequence Range
: eMG80: 1-300 / eMG800: 1-2890 / UCP: 1-3688

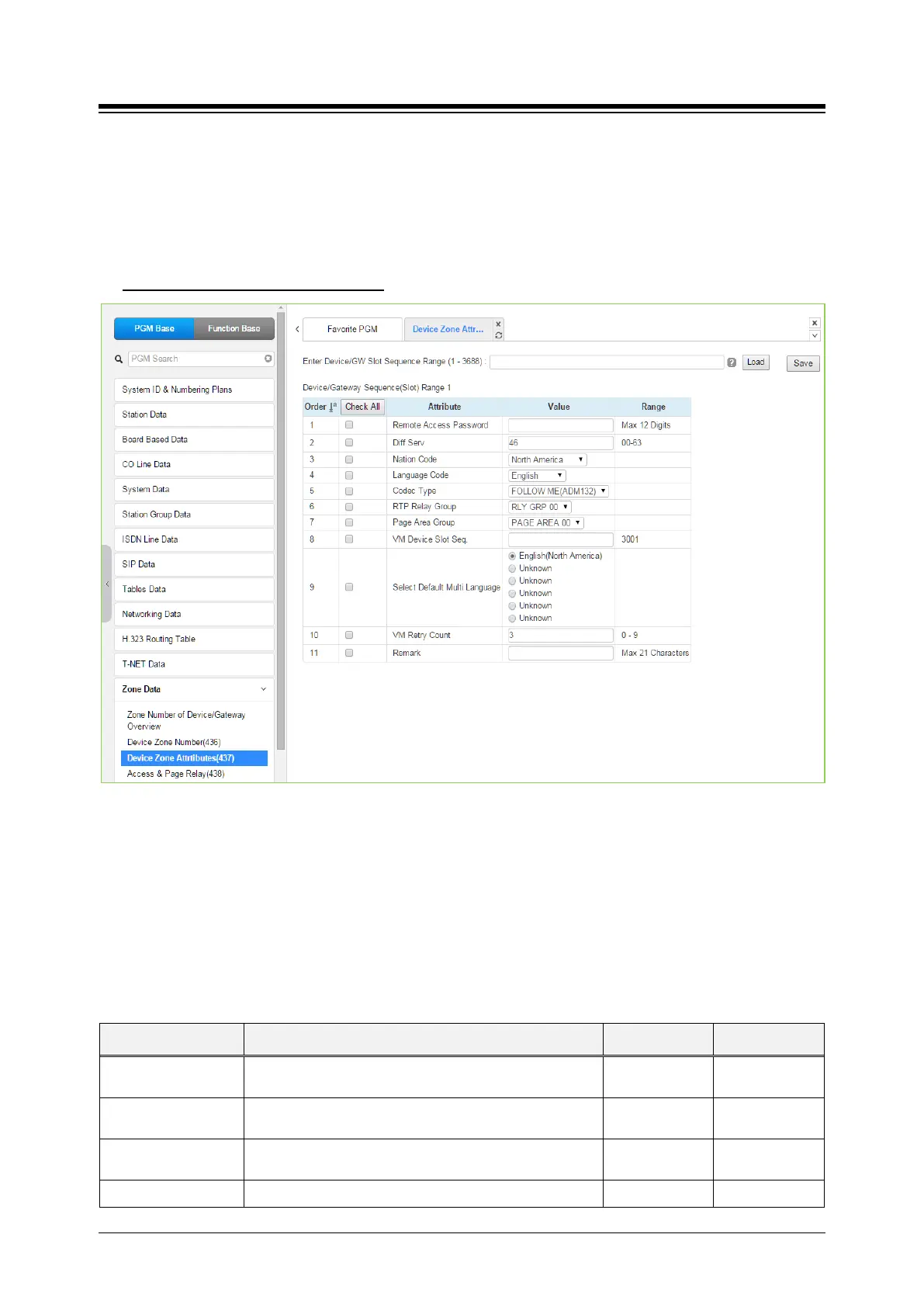

Figure 4.4.13.3-1 Device Zone Attributes
Device Zone Attributes define characteristics specific to the device including the registration
password, Diff Serv Code Point, Nation, etc. In addition, Zone characteristics set at the Device
level take precedence over characteristics for the Zone Attributes. While a Zone may incorporate
up to 15 different RTP packet Relay Groups, for clarity a single RTP Relay Group should be used
within a Zone.
Table 4.4.13.3-1 DEVICE ZONE ATTRIBUTES
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Remote Access
Password
Registration password assigned in device for Remote
stand-alone device only
Max. 12 digits None
Diff Serv
MPB assigned code point will take precedence. Applies
to all devices
0-63 4
Country Code
Country location of the device.
Available selections are given in Country code table.
Country Code
Nation
dependent
Language Code Each device can be assigned a local language or Language Code Nation
