4.4.5.8 External Control Contacts - PGM 168
Selecting External Control Contacts will display the External Control Contact data entry page.
Click [Save] button after changing Value.
The number of External Control Contact: 2 (eMG80), 2 (eMG800), 4 (UCP)

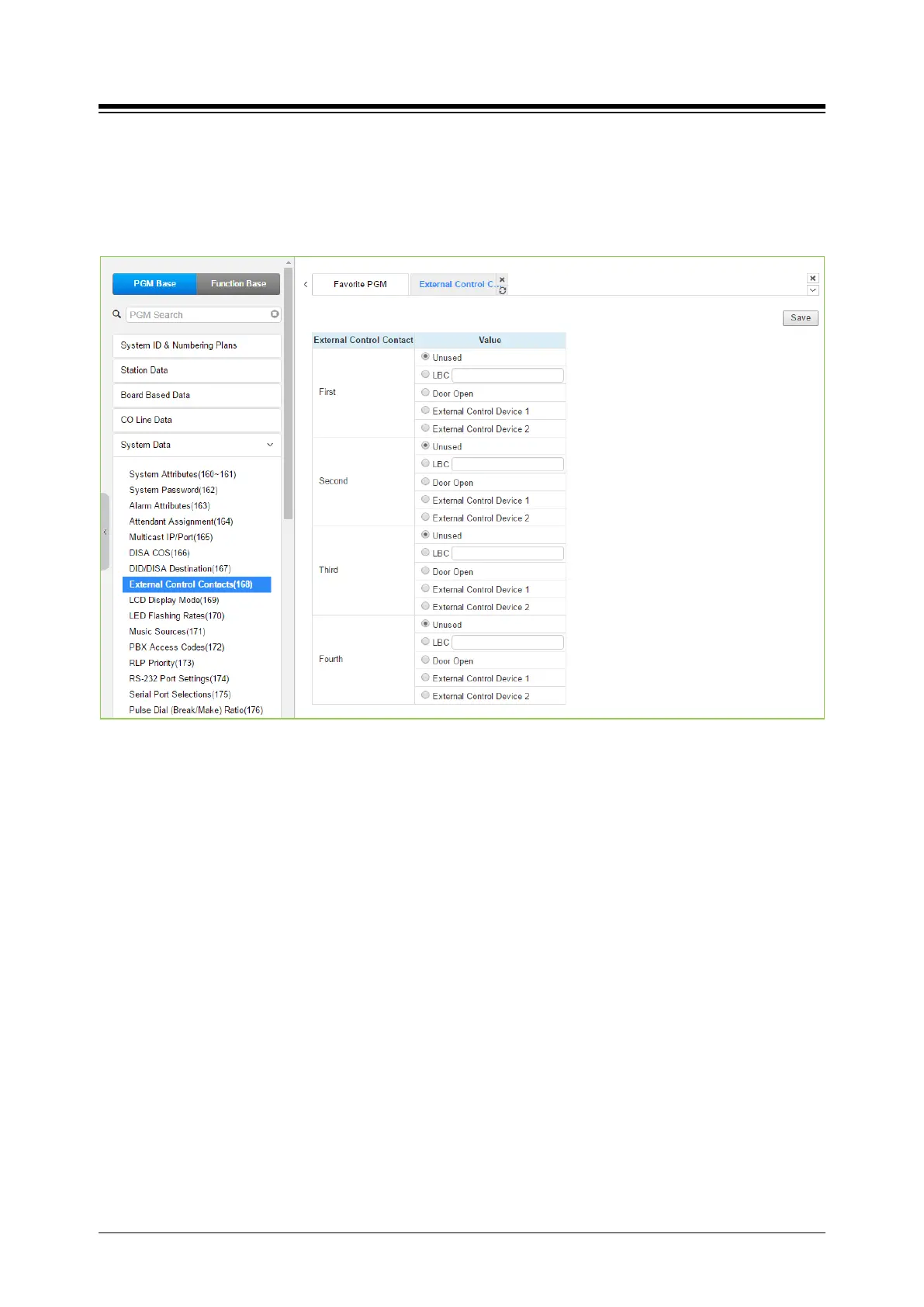

Figure 4.4.5.8-1 External Control Contact
The system includes a programmable contact, which can be used to control external devices.
Refer to the table ‘System capacity’ for number of available contacts. Each contact is assigned to
activate under one of several conditions. As a Loud Bell Contact (LBC), the contact will activate
when the assigned station or group receives an external call. For LBC, when the system is in the
Night or Timed Ring mode, the contact will activate for incoming UNA (Universal Night Answer)
calls and will ignore any station assignment. The contact may alternatively activate as a Door
Lock Release contact, when External Page Zone 1 is accessed or when External Page Zone 2 is
accessed.
