4.4.12.2 T-NET CM Attributes -PGM 331
Selecting T-Net CM Attributes will display the data entry page. Click [Save] button after changing
Value.

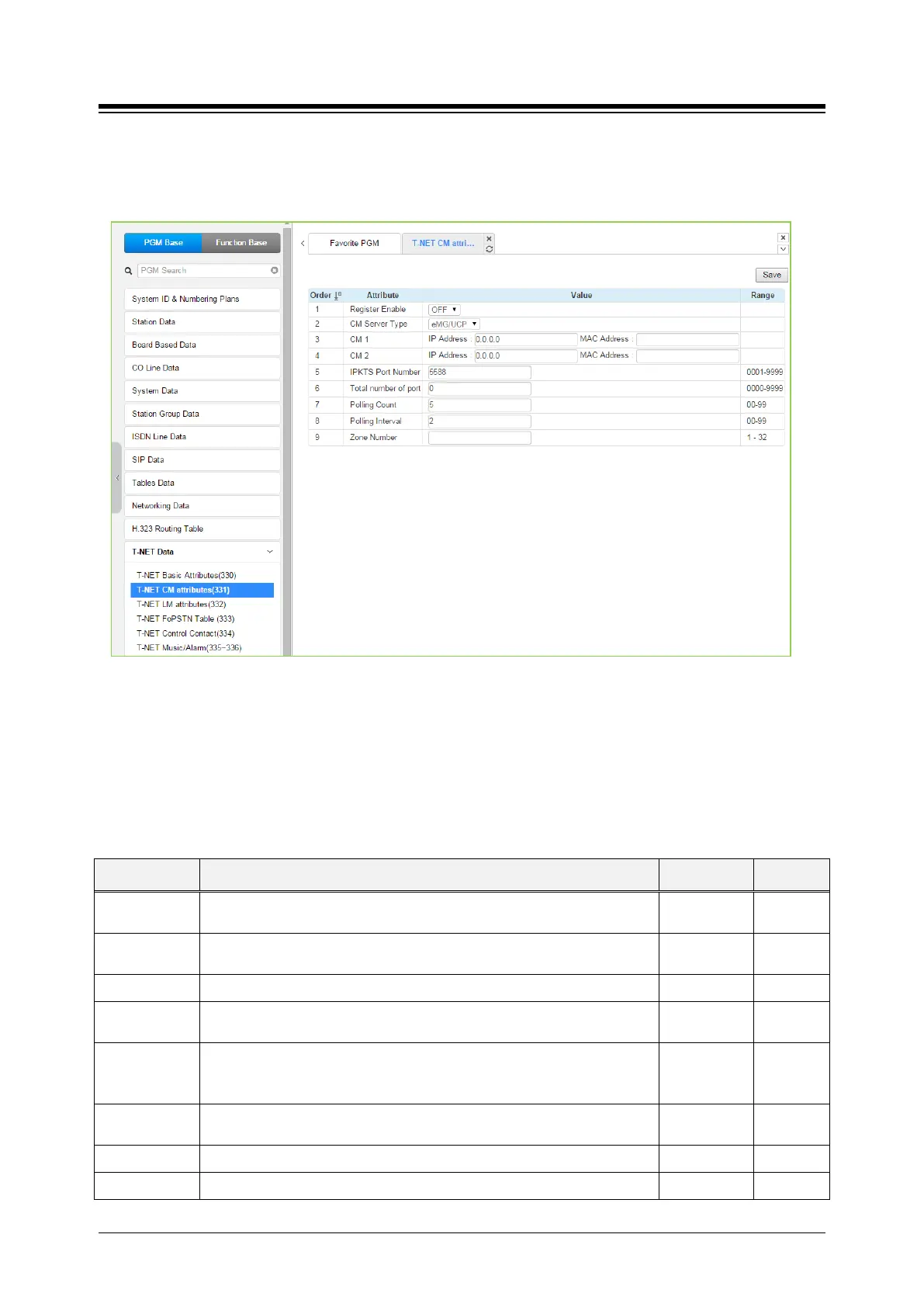

Figure 4.4.12.2-1 T-NET CM Attributes
Each LM (Local iPECS system), which is part of a Central Control Network, must be defined with
the IP Address of the CM (Central iPECS system). The LM configuration data is sent to the CM at
the time the LM registers with the CM. Total port counts define the ports, which are allocated in
the CM database for use by devices registered to the LM. The number of ports defined in the
database of each LM must be equal to or less than the ports defined in the CM for the LM, see
PGM 332, in order to register properly.
Table 4.4.12.2-1 T-NET CM ATTRIBUTES
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Register
Enable
This field informs the LM to attempt registration with the CM. This field
must be set to ON for proper registration.
OFF
ON
OFF
CM server type Assign the type of CM server; iPECS eMG/UCP or iPECS CM.
eMG/UCP,
CM
eMG/UCP
IP Address This field defines the IP address of the CM that will be used by the LM. IPv4 address
IPKTS Port
number
In the TNET environment, the IPKTS protocol signaling UDP port is
defined. At present this field is not used, do not change this port number.
0001-9999 5588
Total number
of
port
This field defines the total number of ports the LM will request be
allocated by the CM for devices attached to the LM. This value must be
equal to or less than the port count in the CM for the LM devices.
0000-9999 0
Polling Count
This field defines the maximum polling failures an LM considers a WAN
fault.
00-99 5
Polling interval This field defines the interval time between LM to CM polling attempts. 00-99 2
Zone Number Zone number can be assigned to Device or GW. 1-32
