iPECS eMG80 & eMG800 & UCP
Administration and Programming Manual Issue 1.6
482
4.4.9.3 LCR DMT (Digit Modification Table) - PGM 222
Selecting LCR DMT (Digit Modification Table) will display the LCR-DMT data entry page. Enter
the DMT Table Index range then click [Load] to modify the DMT data. Click [Save] button after
changing Value.

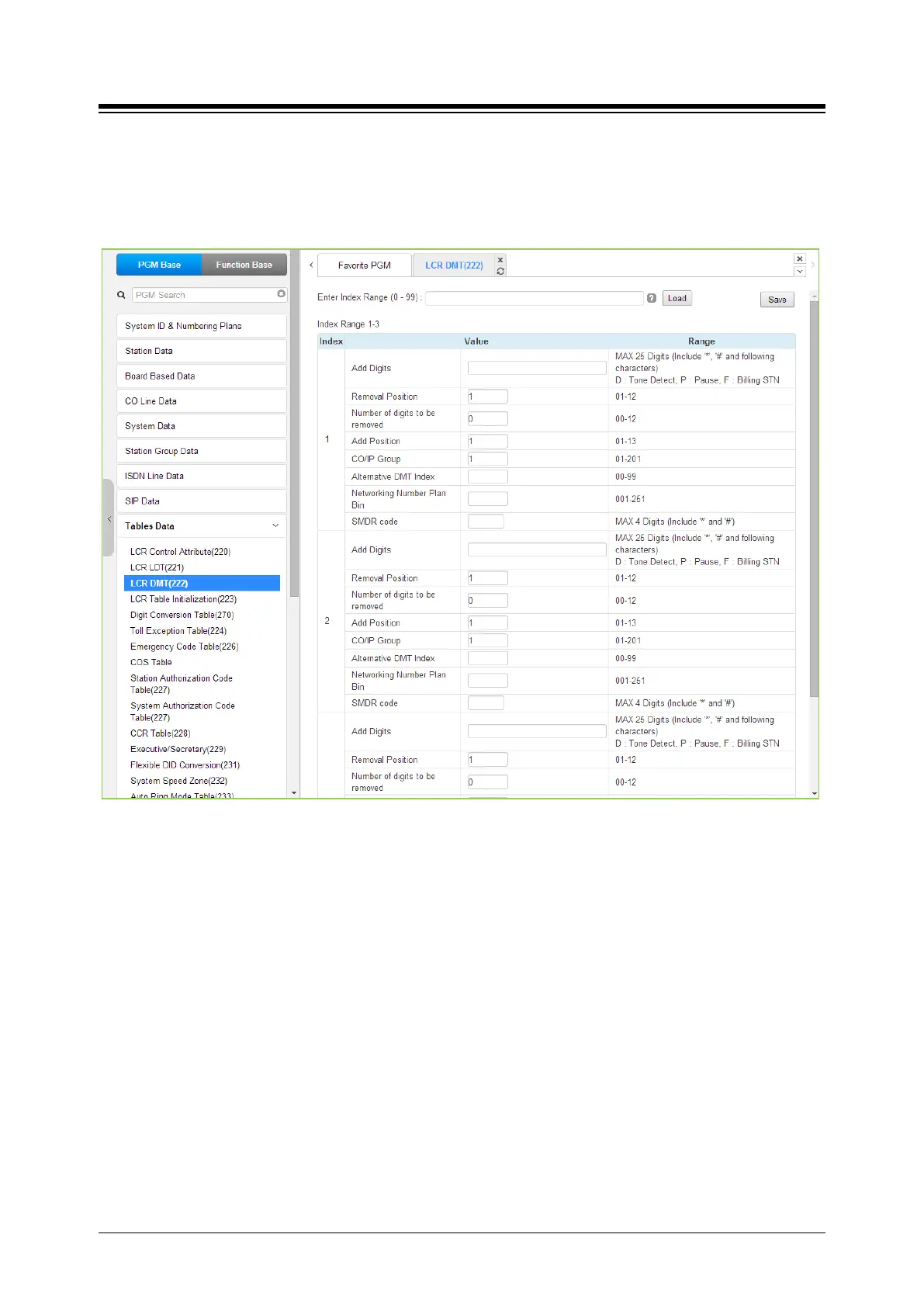

Figure 4.4.9.3-1 LCR Digit Modification Table
Using the index determined from the analysis of the LCR Leading Digits Table, the dialed number
is modified in accordance with the Digit Modification Table and sent over the CO/IP group
assigned for the index.
Digits of the dialed number can be deleted based on the “Removal Position” and “Number of
digits to be removed” entries and a digit stream can be inserted in the resulting number. Counting
from the first dialed digit, the Removal Position defines the location of the digit where removal
begins and, the Number of digits to be removed defines the number of digits to remove. The “Add
Digits” are then inserted in the resulting number at the digit position assigned by the Add Position
entry. The resulting number is then dialed over the CO/IP path assigned. If the assigned path is
not available, the “Alternate DMT index” is used to determine the number and CO/IP path to be
used.
