iPECS eMG80 & eMG800 & UCP
Administration and Programming Manual Issue 1.6
529
4.4.12.4 T-NET FoPSTN table -PGM 333
Selecting T-NET FoPSTN Table will display the data entry page. Enter an index range then click
[Load] to modify the data. Click [Save] button after changing Value.

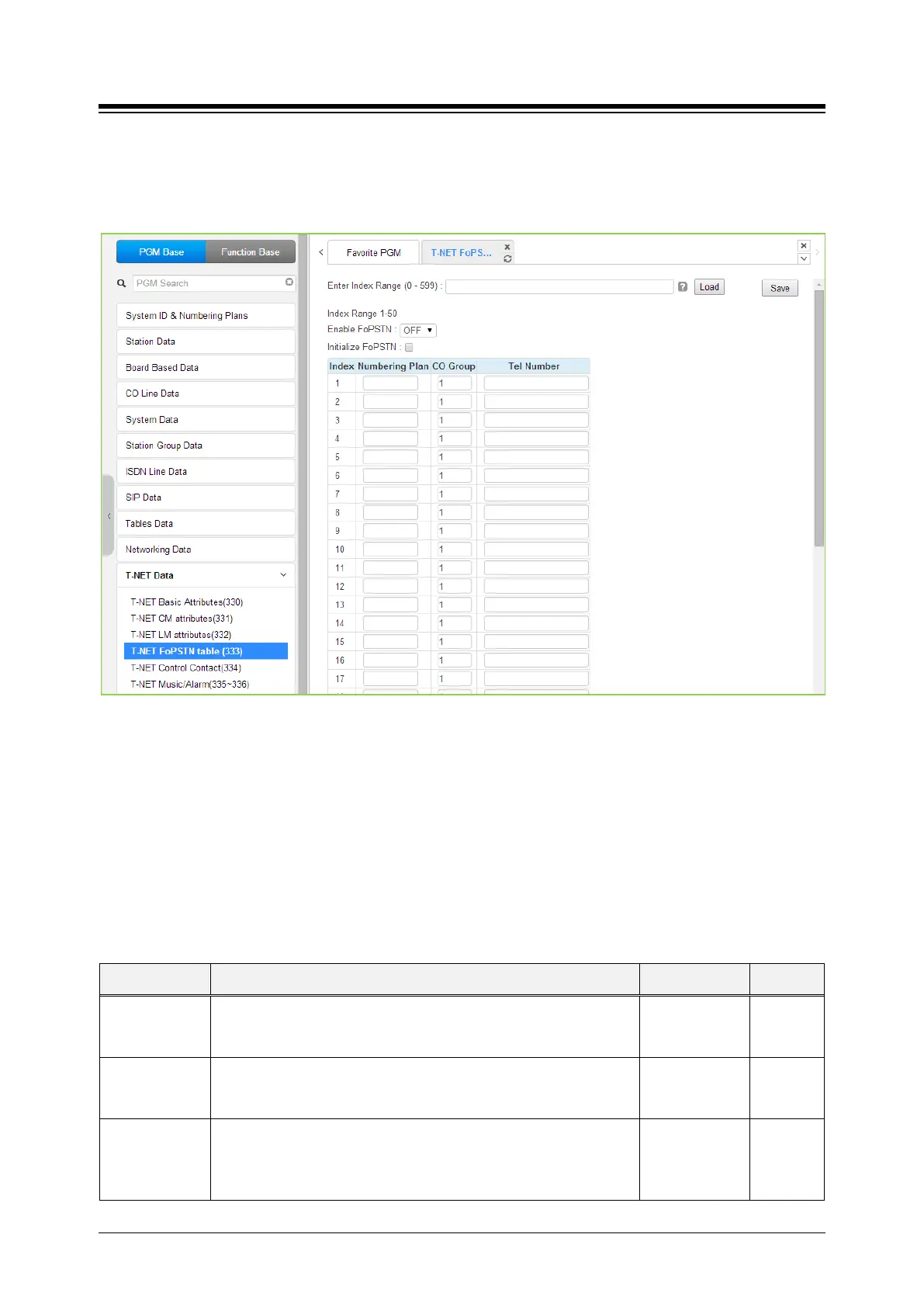

Figure 4.4.12.4-1 T-NET FoPSTN table
The Fail-over function allows the systems in T-NET environment to complete calls between
systems over a PSTN (analog or digital) line should the WAN connection to the CM fail. A CO
gateway Module must be registered to the LM for local CO services. Users may call others in the
normal manner and the call is routed over CO facilities to the remote CM. When calls are directed
to a DID line at the receiving system, the system will select a line from the assigned CO Group
and dial the Tel Number with the station number dialed as the trailing digits.
Table 4.4.12.4-1 Fail Over to PSTN ATTRIBUTES
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Numbering Plan
Station numbers associated with the remote system. A range can
be indicated by using “*” to indicate the range. Example: 21* covers
210 to 219 or 2100 to 2199.
Station number
CO Group
This field defines the CO Group of the local system that will be used
to place calls to the stations entered in the Fail Over Numbering
Plan above, should WAN failure occur.
eMG80:1~20
eMG800:1~200
Tel Number
This field defines the telephone number the system should dial to
place a call to the stations entered in the FO Numbering Plan,
should WAN failure occur. An “*” may be entered as a wild card to
indicate insertion of the dialed station number.
24 digits
