4.4.4.6 DID Service Attributes - PGM 145
Selecting DID Service Attributes will display the DID Service Attributes data input page. Enter a
valid CO range and click [Load] button to enter the DID Service Attributes data. Use the check
mark to indicate which attributes to modify; data for checked attributes is stored by clicking [Save]
button.
Enter CO Range
: eMG80: 1-74 / eMG800: 1-600 / UCP: 1-998

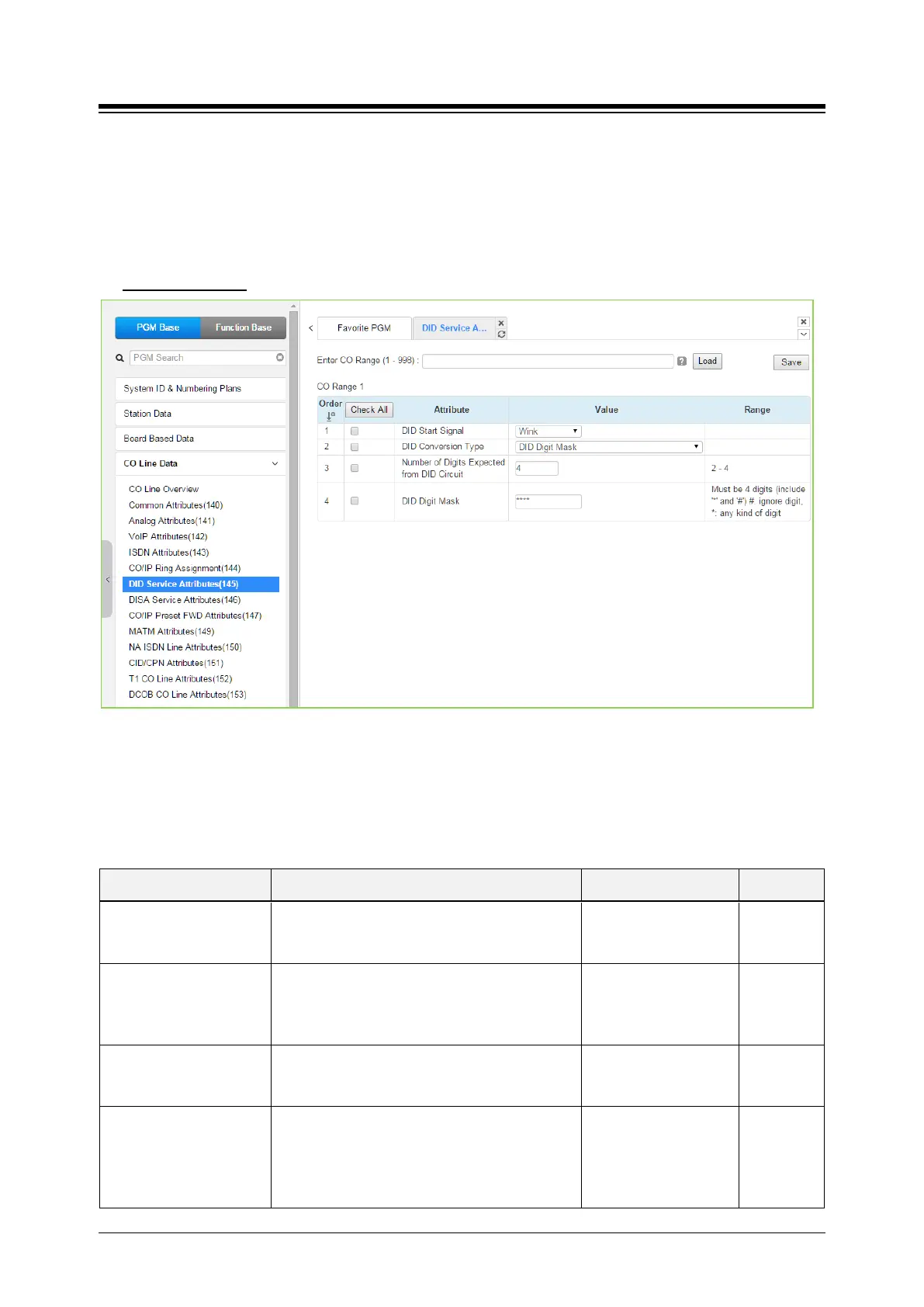

Figure 4.4.4.6-1 DID Service Attributes
DID lines can be assigned the type of “Start” signaling and treatment of received digits. Digits can
be used “as is” to route the call within the system, digits can be converted and used to route the
call, or digits can be converted to a Table index to determine the call routing from a Table look-up.
Refer to the following table for additional description of attributes and values.
Table 4.4.4.6-1 DID SERVICE ATTRIBUTES
ATTRIBUTE DESCRIPTION RANGE DEFAULT
DID Start Signal
Assigns the type of DID start signaling,
Immediate, Wink or Delayed for the CO/IP Line.
Immediate/
Wink/
Delayed
Wink
DID Conversion Type
The received DID digits can be treated to
determine call routing, simple conversion
(Convert), use “as is” (no treatment), or modify
using Flexible DID Conversion Table (Look-up).
DID Digit Conversion/
Use ‘as is’/
Modify using Flexible
DID conversion table
Use ‘as is’
Number of Digits
Expected from DID Circuit
The number of digits expected from the PSTN
DID circuit.
2~4
eMG80:3
eMG800:4
UCP:4
DID Digit Mask
DID digit modification sequence: “#” deletes the
digit, “*” accepts the digit “as is”, a digit (0~9)
replaces the digit. The modification is based on
the position of the digit (1~4) in the received
number.
(0~9, *, #) #***
