4.4.2.15 Linked Station - PGM 124
Selecting Linked Station will display the Linked Station input page. Enter a valid Station range
and click [Load] to enter the Linked Station data. Click [Save] button after changing Value to
apply.

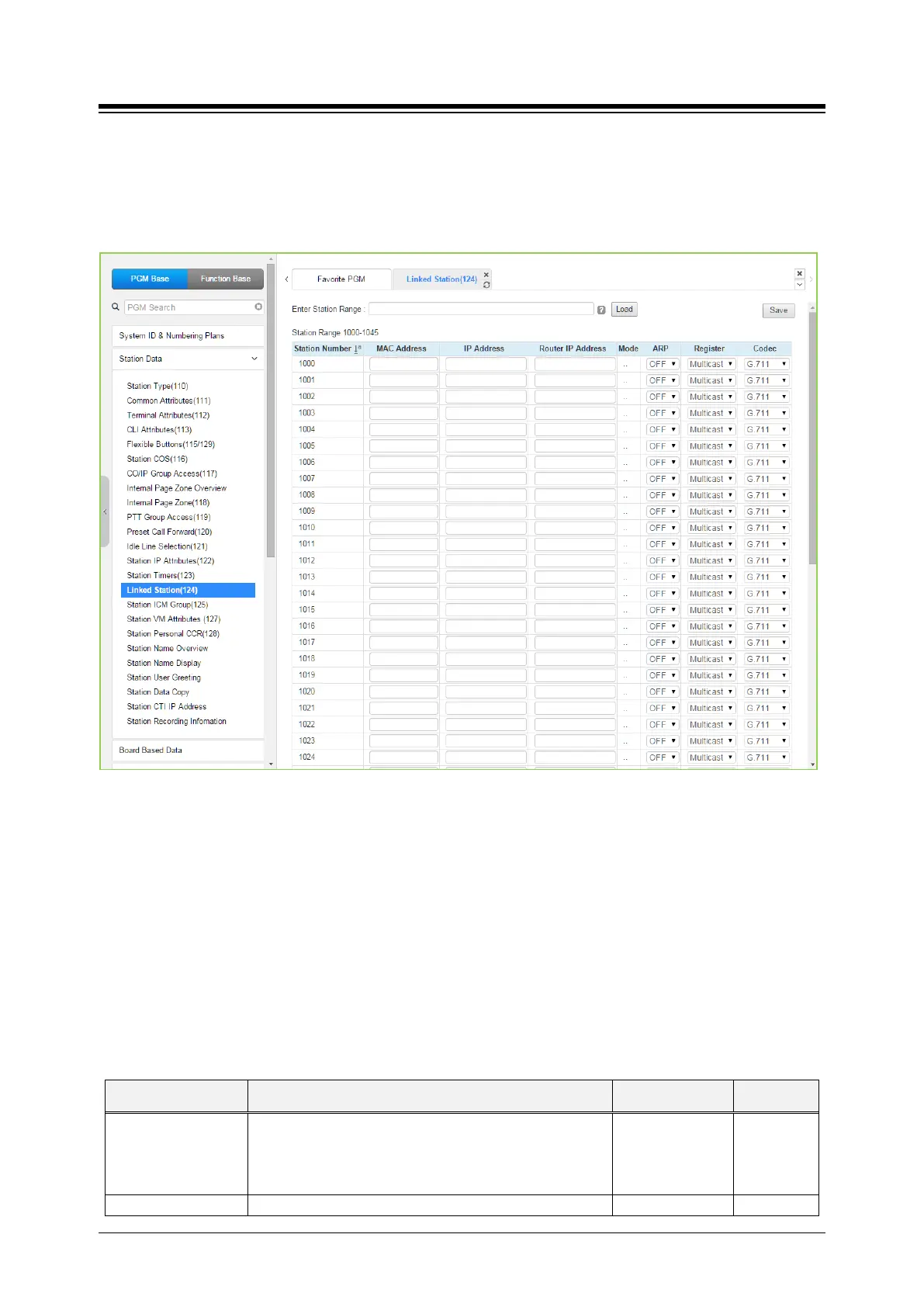

Figure 4.4.2.15-1 Linked Station Pair
For UCS Client, it is recommended that PGM 443 be employed for an unregistered (MAC Linked
pair) station. When unregistered station linking is used, the linked station does not reduce the
system‘s capacity. However, in this case, the linked station must be an iPECS IP Phone.
Unregistered linking is allowed only to an iPECS IP Phone. Once UCS Client is linked, it will
display in this Web page as well as in PGM 103 and 443.
If the station is assigned to Master or Slave by linked station, the bracket ‘[M] or [S]’ will be
displayed by the station number in PGM 101, 103, 105, 124 of Web page.
To link registered stations, the Personal Group feature is used and configured in PGM 260 and
261.
Table 4.4.2.15-1 LINKED STATION TABLE
ATTRIBUTE DESCRIPTION RANGE DEFAULT
MAC Address
Set MAC address of linked un-registered station, required
data. Note the secondary station must not be registered
in the system prior to linking. If needed, delete the device
from the system prior to linking.
The IP Address of the linked station.
