4.4.13.8 Inter Zone Attribute – PGM 441
Selecting the Inter Zone Attribute returns the data input page. Enter the desired Source and
Destination Zone number range and click [Load] to assign Zone characteristics. Click [Save]
button after changing Value.

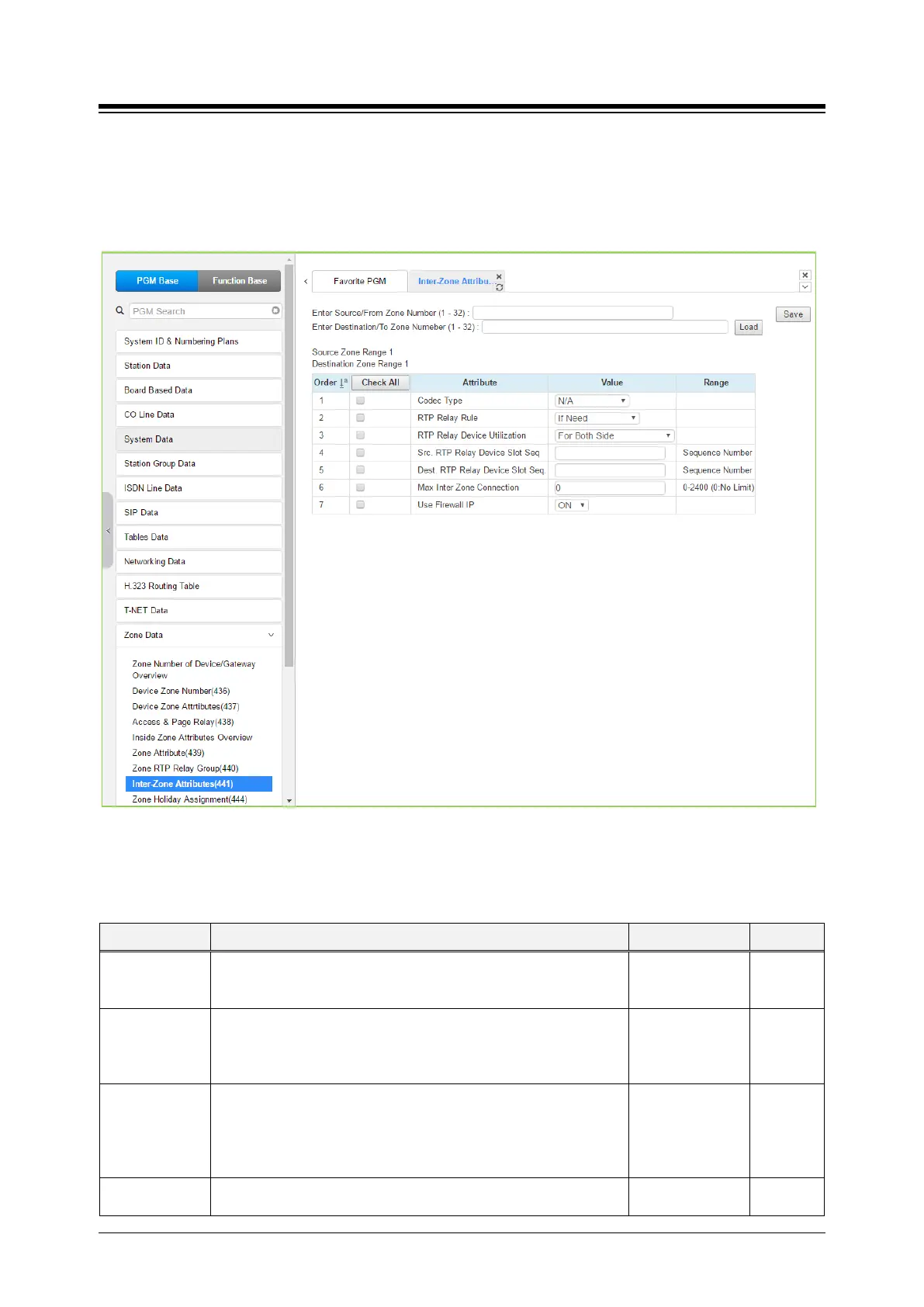

Figure 4.4.13.8-1 Inter-Zone Attributes
Inter Zone Attributes define RTP packet relay treatment for communications between devices in
different Zones.
Table 4.4.13.8-1 INTER-ZONE ATTRIBUTES
ATTRIBUTE DESCRIPTION RANGE DEFAULT
Codec Type Assigns the codec employed by devices in the Zone.
System Codec/
G.711 / G.723.1
G.729 / G.722
NA
RTP Relay Rule
Assigns when to use the packet relay function between Zones,
with “If Need” the MPB will automatically determine when to use
packet relay, while “RTP Relay Group” will always implement
packet relay for RTP packets between the Zones.
If need/
Always not/
Forced to do
If need
RTP Relay
Device
Utilization
Assigns how to employ the Source and Destination VoIP
channels. The assigned Source channels may be used for both
sides of the communication or separately only for a device in the
Source Zone. The Destination channels are then used as back-up
channels or only for devices in the Destination Zone.
For Both Side/
Separated (SRC
to DEST)
For Both
side
Src RTP Relay
Device Slot Seq.
The Sequence number associated with the VoIP channels in the
Source Zone that handle Packet Relay.
Sequence
Number
