3.7 Parts Placement and Setting
3-73
3
Screen Editing
Switch / Lamp

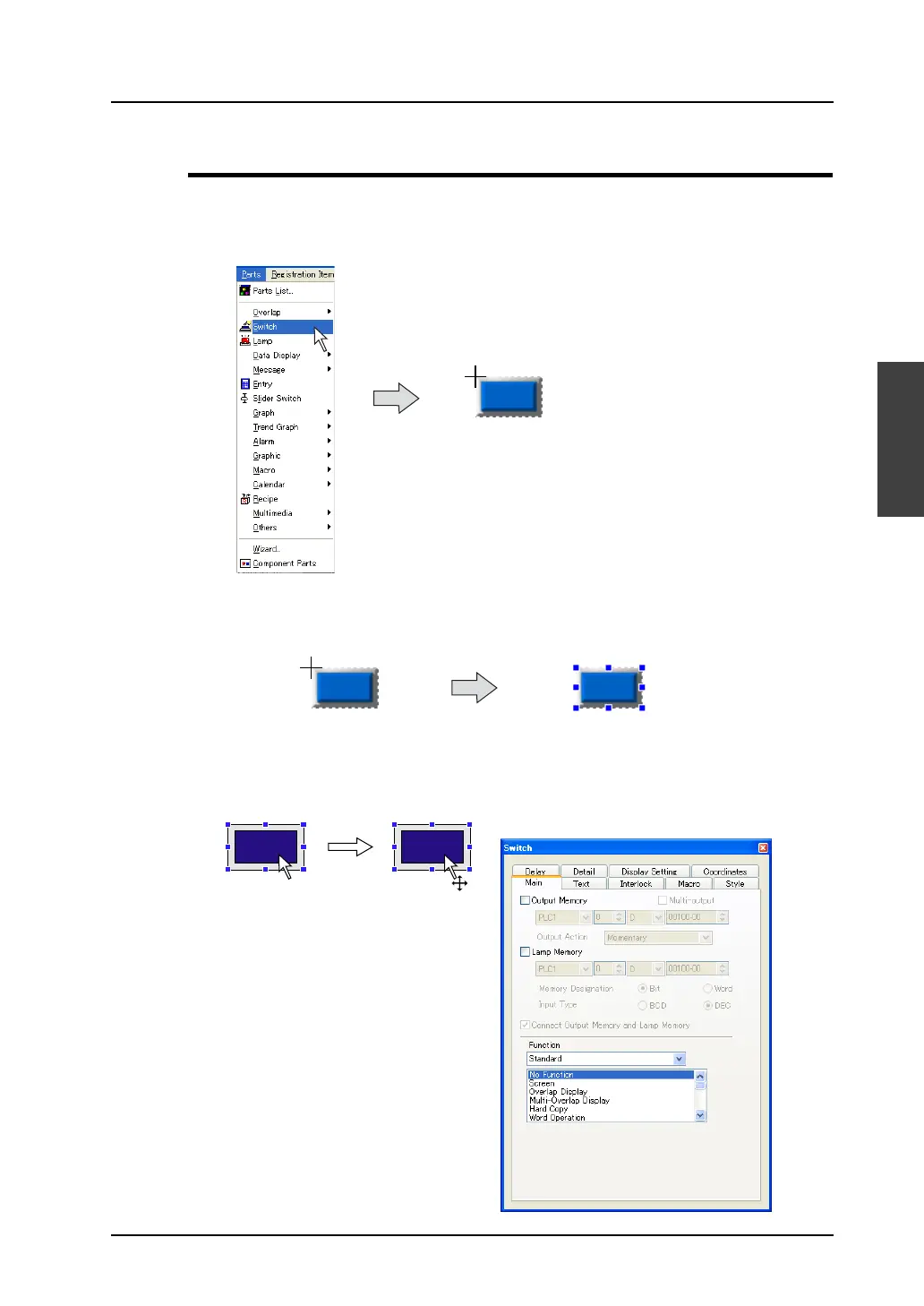

Placement procedure
1. Click [Switch] or [Lamp] in the [Parts] menu, or drag it from the parts list or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
* The part displayed here is the default or the one which was changed or selected last.
2. Click the mouse in an arbitrary position on the screen. A switch part is placed on the screen.
Setting method
The item dialog is displayed by clicking or double-clicking on the parts placed on the screen.
The part is displayed with the
cursor moved.
Click. The switch part is placed.
Click on the item.
The item dialog (e.g. switch) is displayed.
To Next Page
