Hakko Electronics V8 series - Transfer Procedure from the Editor to MONITOUCH

6.4 Transfer Procedure (Using a Communication Cable)
6-14
Transfer Procedure from the Editor to MONITOUCH
1. Connect MONITOUCH (MJ1) and the computer using V-CP.
When [No Connection] is not set for the MJ1, bring up the Main Menu screen on MONITOUCH.
2. Start up the editor.

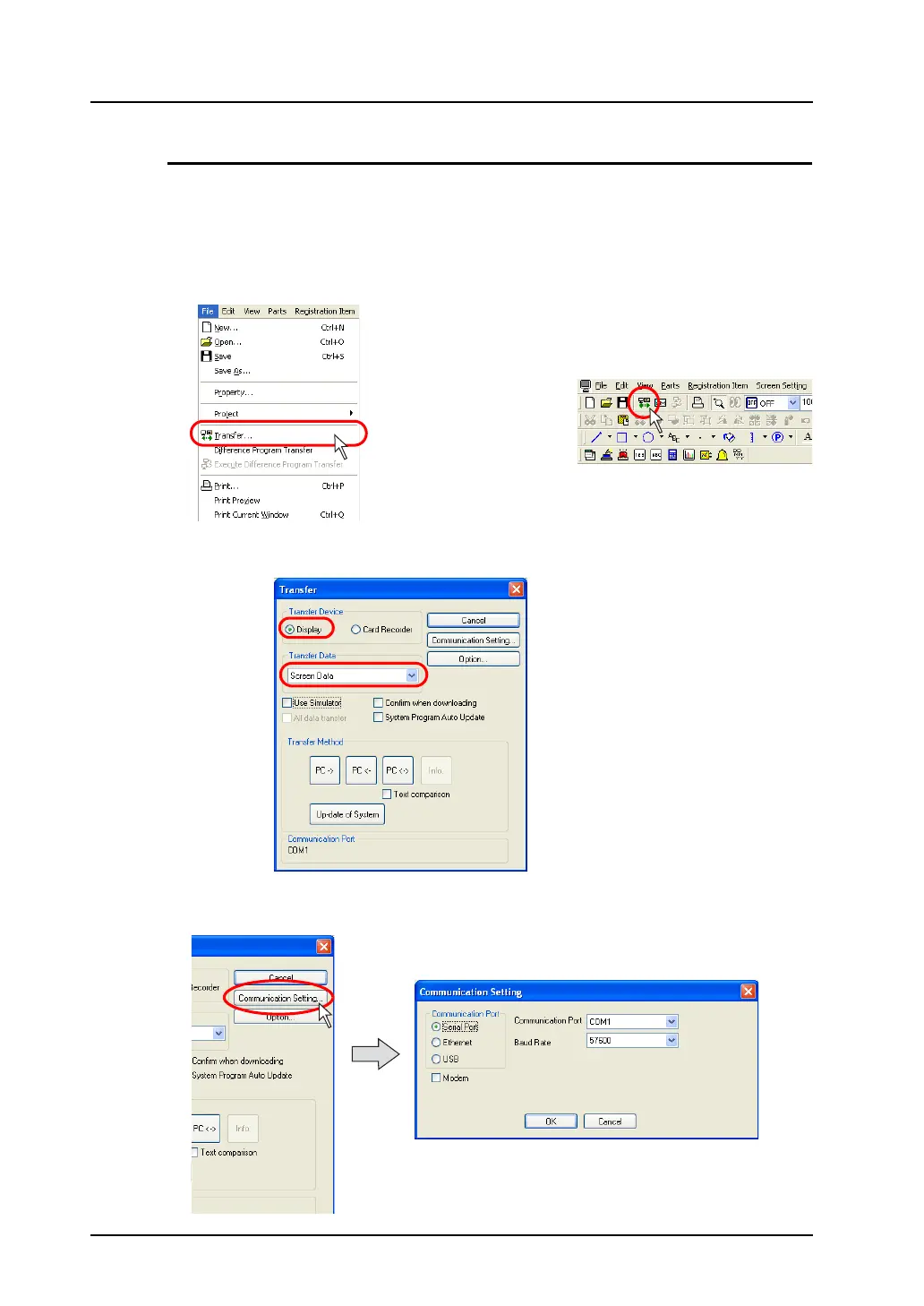

3. Click [Transfer] from the [File] menu or click the [Transfer] icon on the toolbar.
4. The [Transfer] dialog is displayed.
Select [Display] for [Transfer Device], and [Screen Data] for [Transfer Data].
5. Click the [Communication Setting] button.
The [Communication Setting] dialog is displayed.
OR
