8.2 Emulator

8-34

3. The [Emulator] window is opened.

Quitting

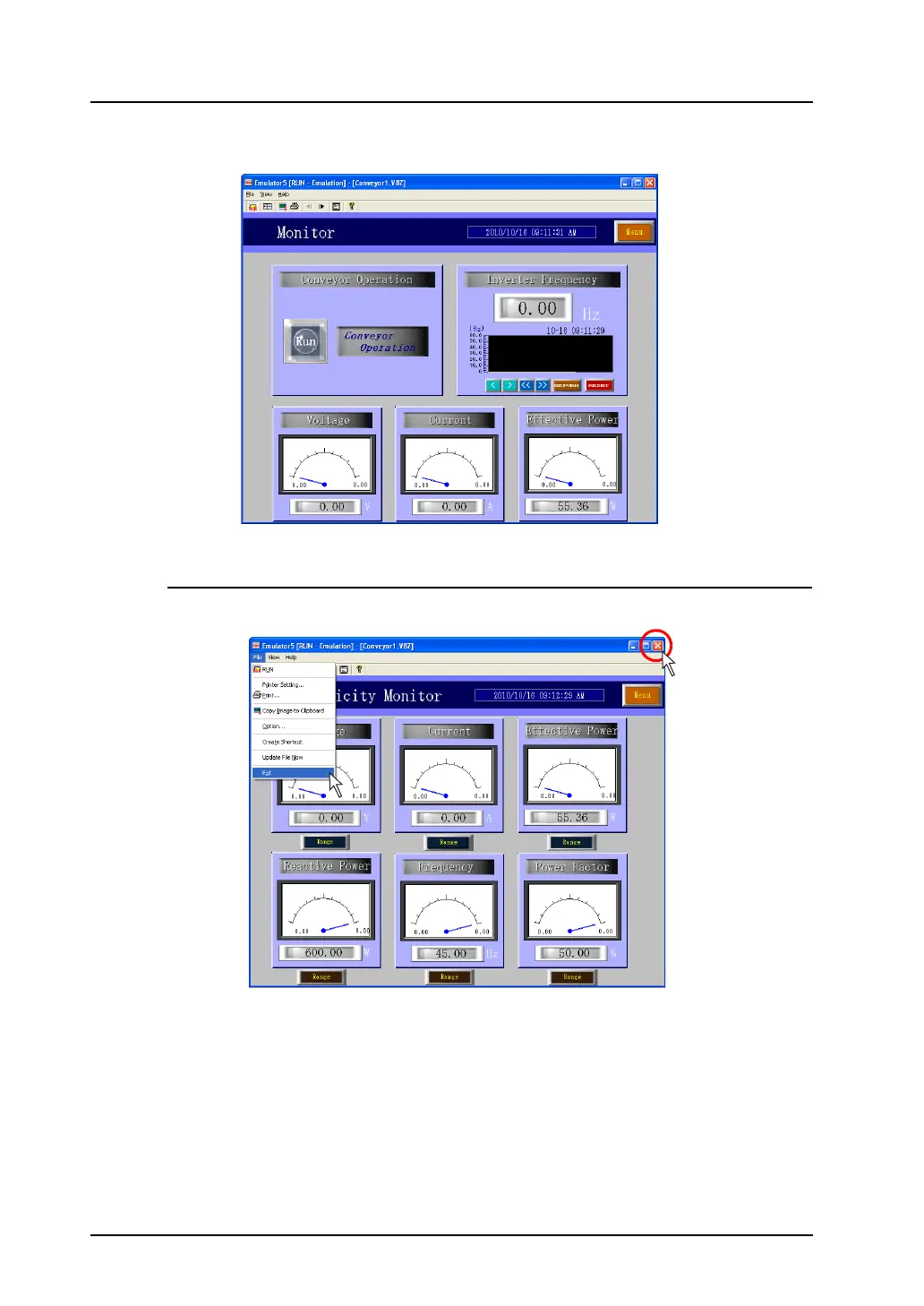

1. In the [Emulator] window, click [Exit] from the [File] menu or the [Close] button.

2. The [Emulator] window is closed.

The [Simulator] window is closed at the same time.

[Close] button
