2.6 Screen Composition
2-36
Screen Structure

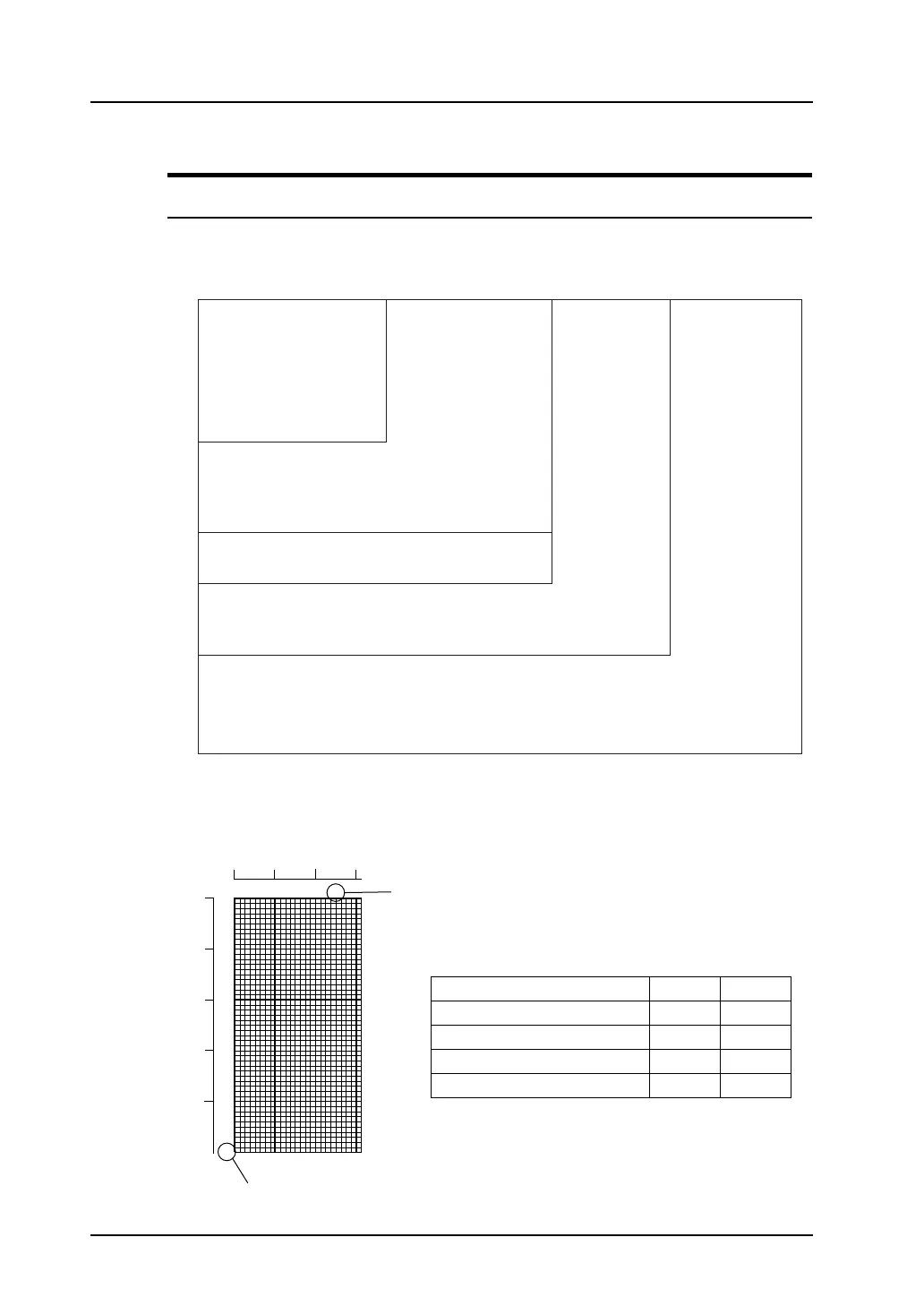

Screen Resolution
Screen resolution varies with different models of the V8 series.
Lines and columns
Lines and columns are used as units to designate coordinates of overlaps or sizes of character
displays.
0
319 639 799
0
239
479
599
V706/V606e/V606i
V708C/V710T/V710C/V608CH
V708S/V710S/V712S
V609E
399
V715X
1023
767
X axis (dots)
Y axis
(dots)
0
12
0
1
2
0
81624
0
10
20
30
40
Column
Line
Dot
Dot
1 column
= 8 dots
1 line
= 20 dots
Model Column Line
V806T/V806C/V806M 40 12
V808C/V810C/V810T/V808CH 80 24
V808S/V810S/V812S 100 30
V815X 128 38
