Notes
A2-25
A2
3D Parts
Limitation on Parts
One 3D parts file is allowed to use a maximum of 1,023 patterns.
How to Count Patterns
• One part or two or more parts the same in type and size are placed on the screen:
Switch / lamp: The number of notches of one part
Parts other than switch and lamp: One pattern
• Parts the same in type but different in size are placed on the screen:
Switch / lamp: The number of notches of every part
Parts other than switch and lamp: Every part counted as one pattern
<Example:>

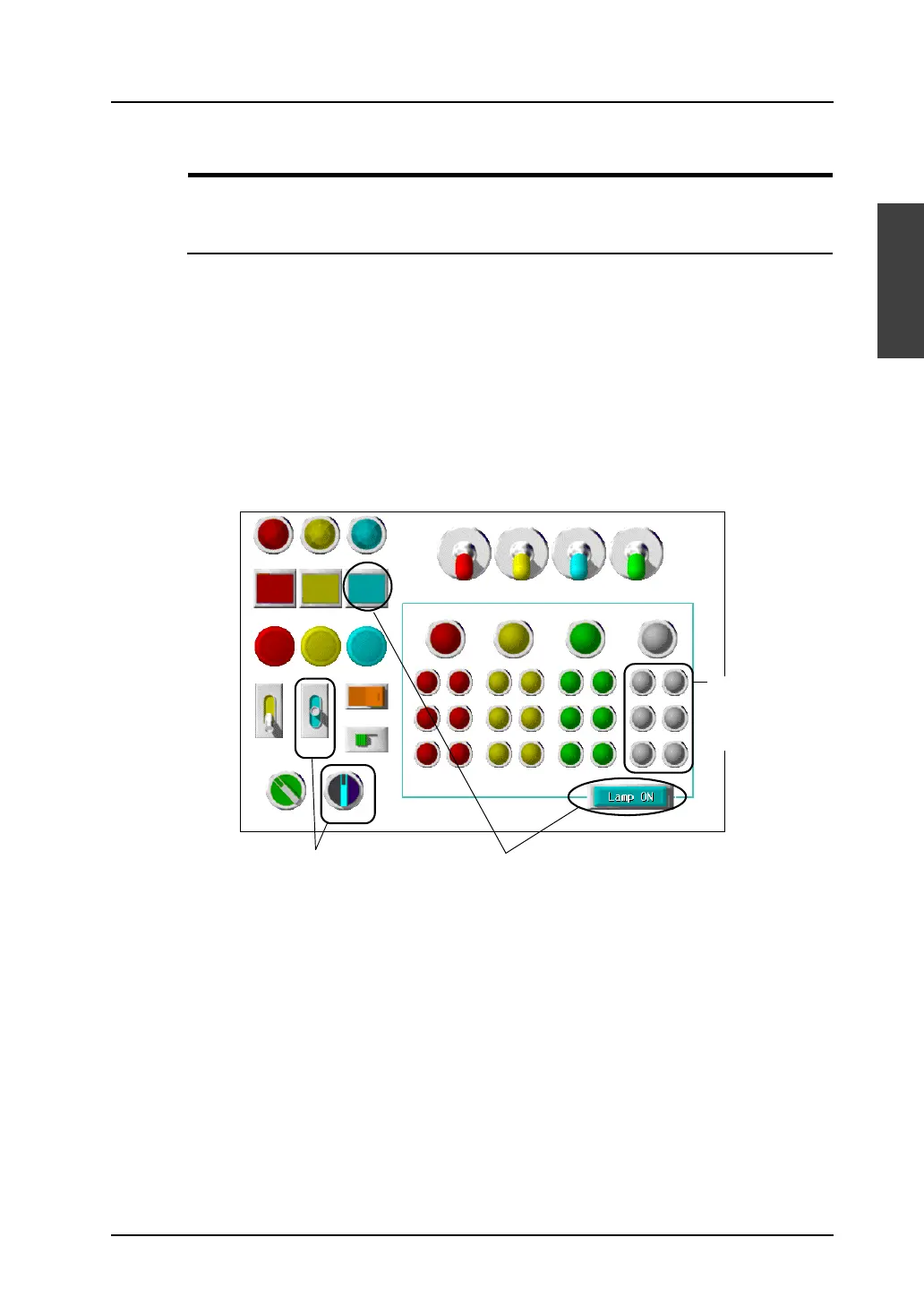

Fifty eight patterns are used for the switches and the lamps on the following screen.
2 (notches) × 26 (pieces) + 3 (notches) × 2 (pieces) = 58
Each value at the lower right denotes the number of notches.
3-notch parts
Parts the same in type but different in size are
separately counted.
222
222
222
2
2
2222
22 2 2
2222
2
2
3
3
Parts same in
type and size are
counted as one.
2
