Hakko Electronics V8 series - Relationship between Group Numbers and Absolute Addresses

5.4 Message
5-5
5
Registration

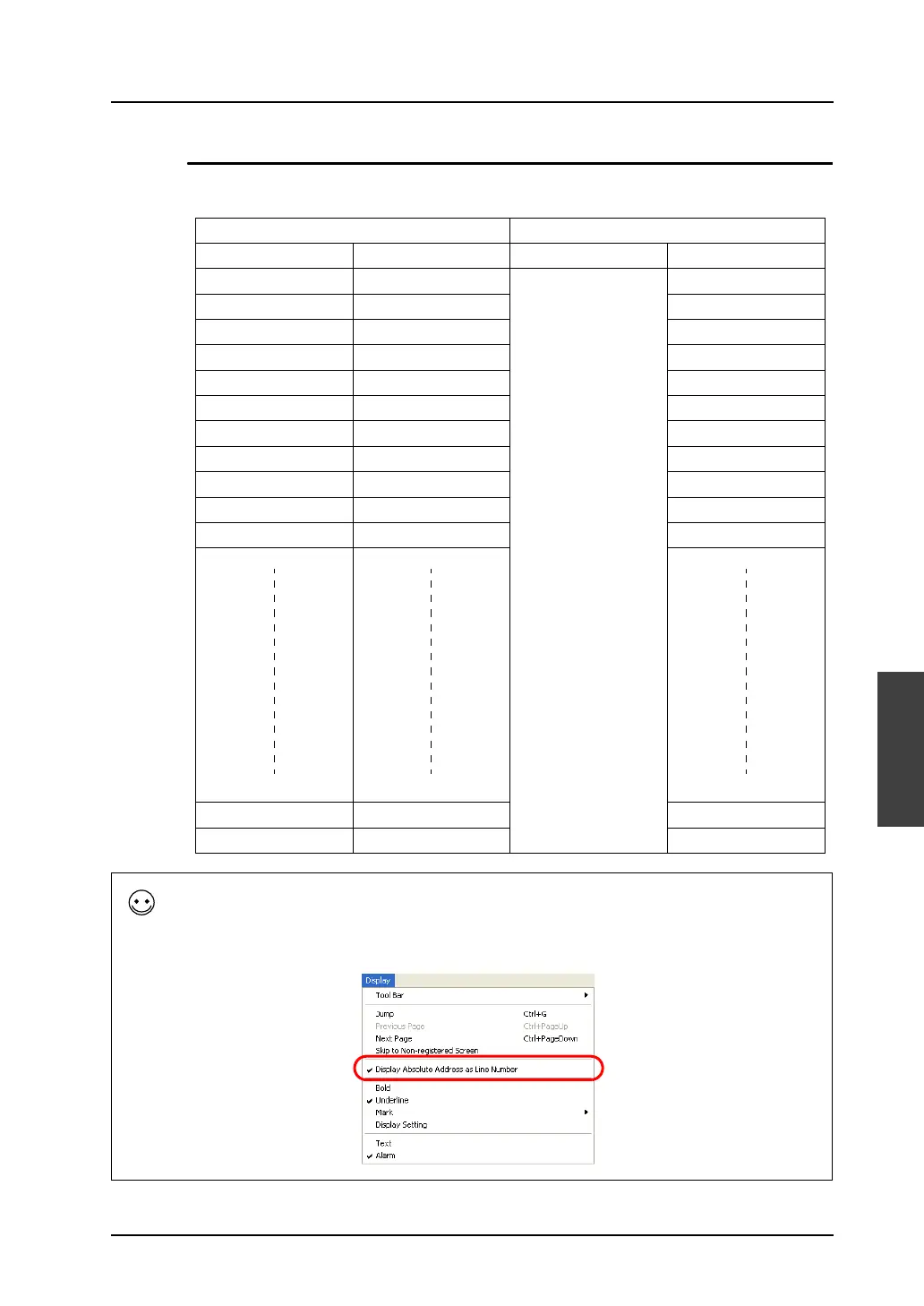

Relationship between Group Numbers and Absolute Addresses
Each message is given a group address (message group number and line number) as well as an
absolute address (line number only).
Ordinary Addresses (Groups) Absolute Addresses
Group No. Message No. Group No. Message No.
0 0000 - 0255 (None) 0000 - 0255
1 0000 - 0255 0256 - 0511
2 0000 - 0255 0512 - 0767
3 0000 - 0255 0768 - 1023
4 0000 - 0255 1024 - 1279
5 0000 - 0255 1280 - 1535
6 0000 - 0255 1536 - 1791
7 0000 - 0255 1792 - 2047
8 0000 - 0255 2048 - 2303
9 0000 - 0255 2304 - 2559
10 0000 - 0255 2560 - 2815
126 0000 - 0255 32256 - 32511
127 0000 - 0255 32512 - 32767
How to check absolute addresses
You can check absolute addresses in the [Message Edit] window.
Click [Display] → [Display Absolute Address as Line Number]. The field showing line numbers
switches to show absolute addresses.
