3.7 Parts Placement and Setting
3-90
Time Display / Calendar

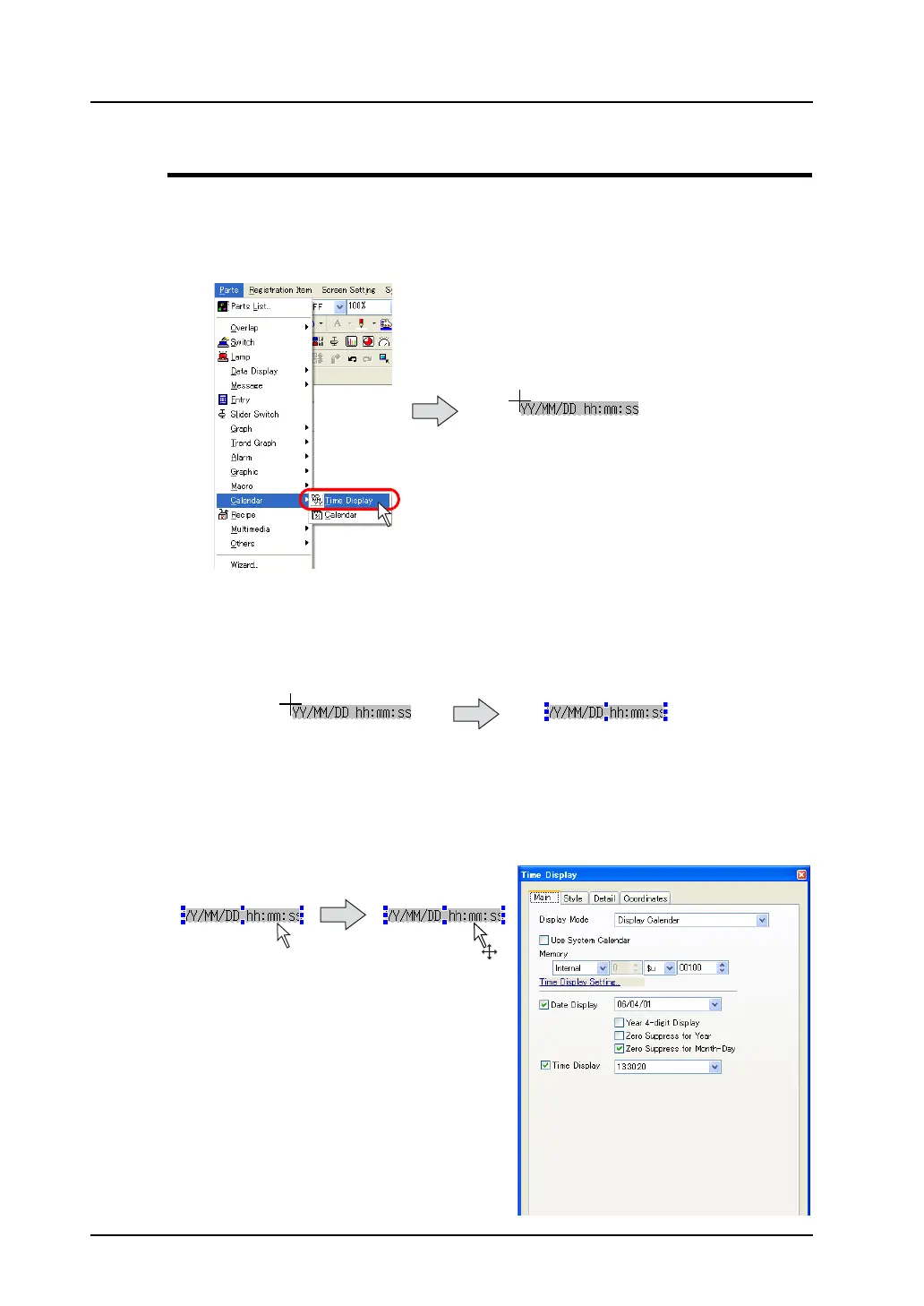

Placement procedure
1. Click [Time Display] or [Calendar] selected from [Parts] → [Calendar], or drag the part from the
parts list or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
* When [Calendar] is clicked, the default part or the part modified or selected last is
displayed.
When [Time Display] is clicked, the fixed part is always displayed.
2. Click the mouse in an arbitrary position on the screen. The item is placed.
Setting method
The item dialog is displayed by clicking (or double-clicking) on the item placed on the screen.
The part is displayed with the cursor moved.
Click. The item is placed.
Click on the item.
The item dialog (e.g. switch) is displayed.
