5.6 Graphic Library
5-24
Graphic Library Environment Setting
Environment setting for the graphic library is also started from [Display Environment] in the [Display]
menu, as performed for screen editing.
Therefore, this section explains the display environment settings that are different from those in screen
editing.

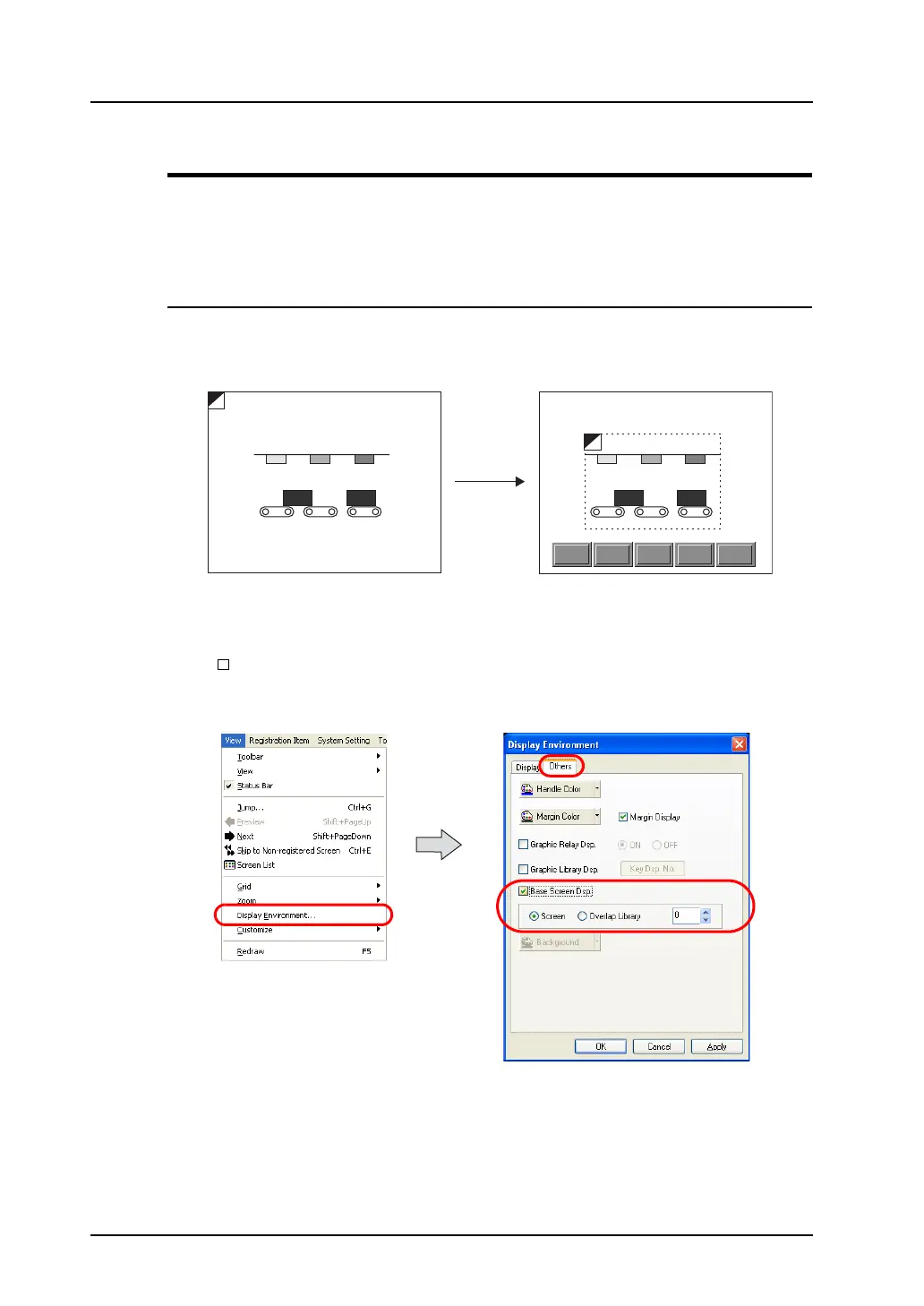

Base Screen Dsp. ([Others] Tab Window)
While editing a graphic in the graphic library, a screen or overlap library can be placed behind the
graphic to check the actual image.
Select [View] → [Display Environment].
The [Display Environment] dialog is displayed. Open the [Others] tab window.
Check [ Base Screen Dsp.]. Selection from [Screen] and [Overlap Library] is made possible. Select
either one and specify the desired number.
Click [OK]. The selected screen is placed behind the graphic.
If no screen is displayed, select [Redraw] from the [View] menu or press the F5 key on the keyboard.
OFF
OFF
Only a graphic Displayed on a base:
An offset position can be changed
with ease.
Monitor Screen
