3.7 Parts Placement and Setting
3-74

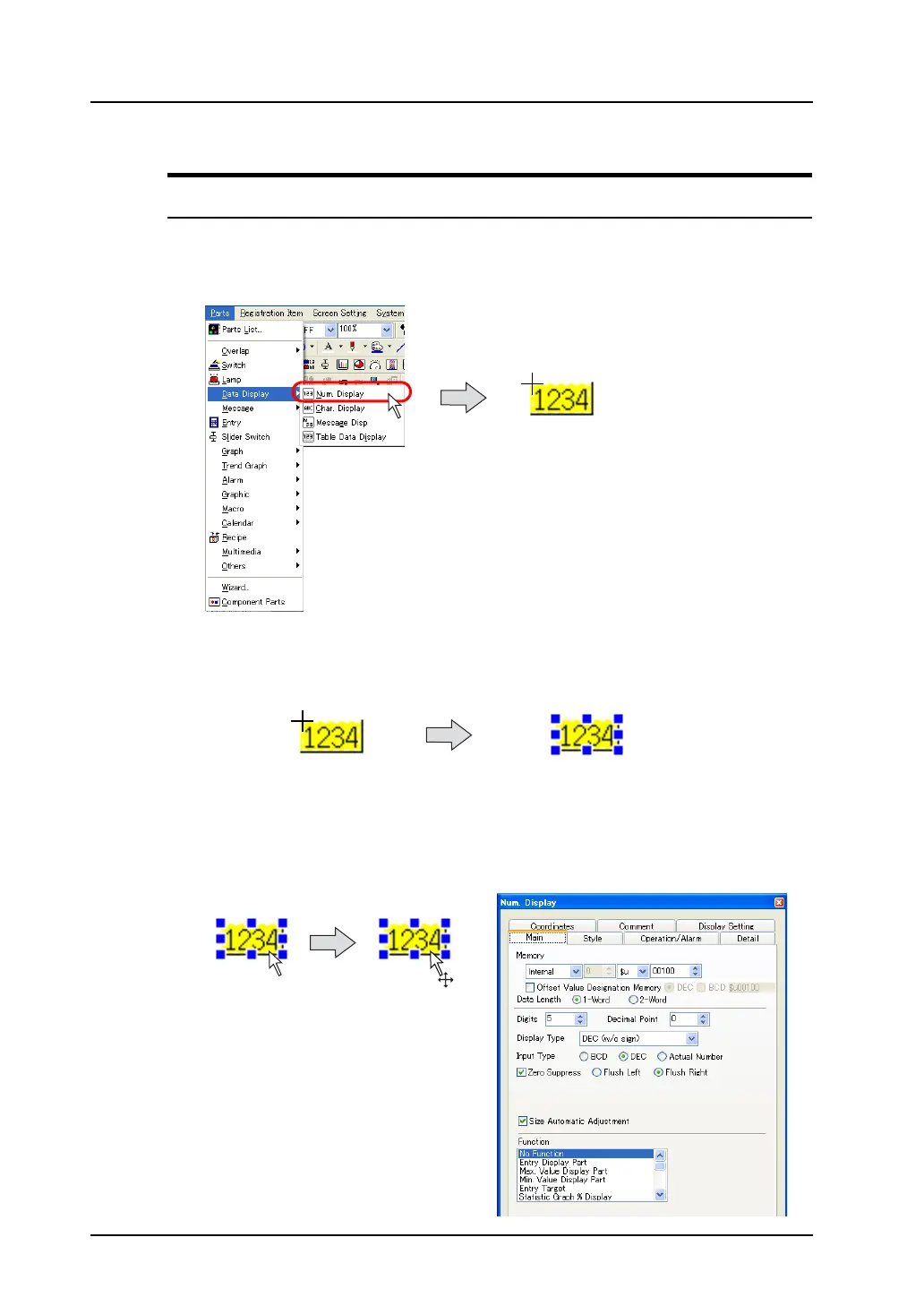

Data Display
Numerical Data Display / Character Display / Message Display
Placement procedure
1. Click the item selected from [Parts] → [Data Display], or drag it from the parts list or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
* The part displayed here is the default or the one which was changed or selected last.
2. Click the mouse in an arbitrary position on the screen. The selected data display part is placed.
Setting method
The item dialog is displayed by clicking or double-clicking on the parts placed on the screen.
The part is displayed with the
cursor moved.
Click. The numerical data display part is placed.
Click on the item.
The item dialog (e.g. numerical data display) is displayed.
To Next Page
