Hakko Electronics V8 series - Pie Graph Scale

4.3 Drawing Methods
4-43
4
Drawing

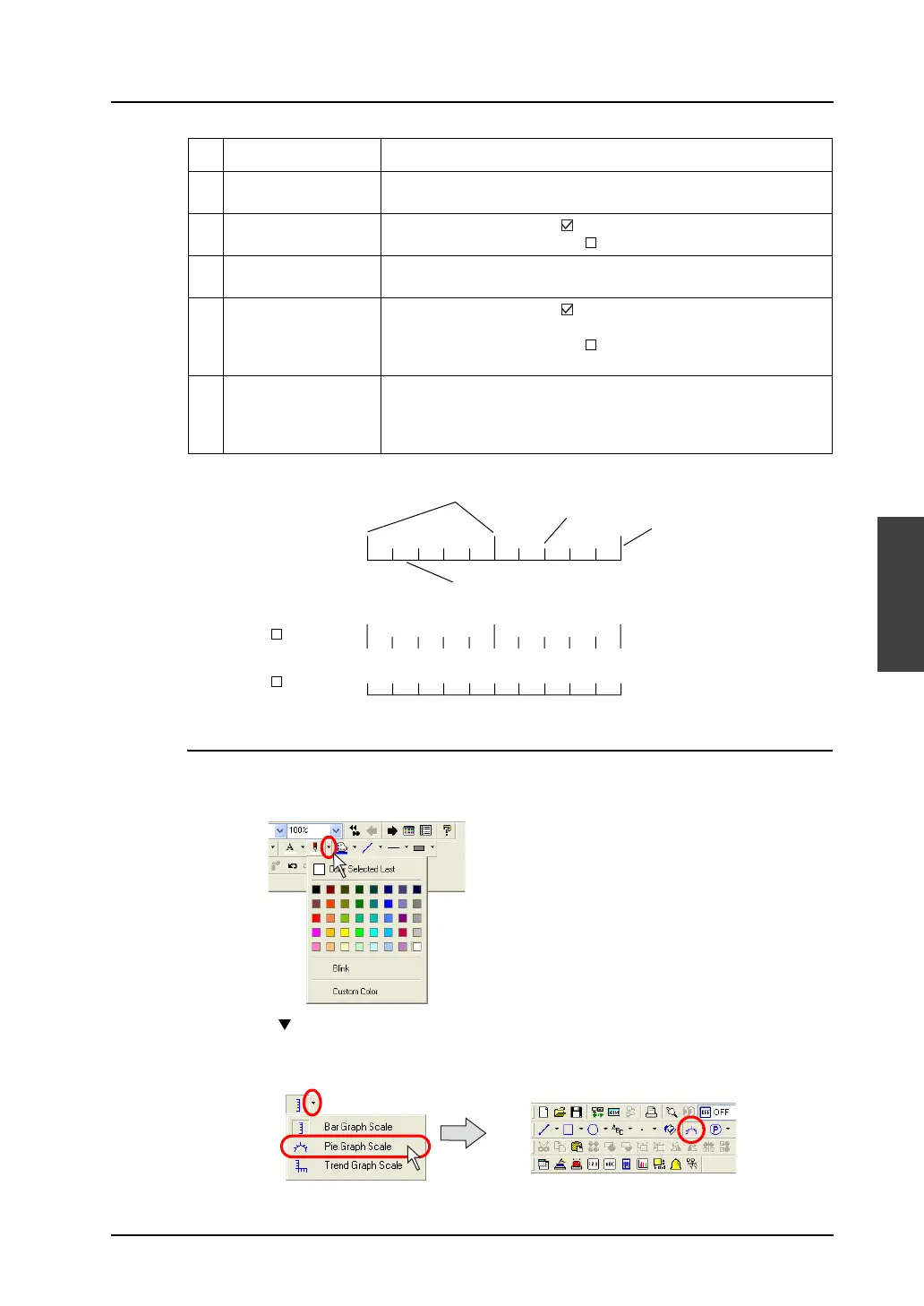

Pie Graph Scale
Drawing method
1. Select a line color from the [Pen Color] icon on the toolbar.
1. Click the “ ” mark on the right of the [Scale] icon on the toolbar.
Select [Pie Graph Scale] from the scale type displayed.
The icon is depressed and the mouse cursor is turned into a cross-shaped cursor.
1 Color Choose a color for the bar graph scale.
2 Length (1 - 16) Set the length of short gradation marks. Enter the numerical value in
the data field, or set the desired value using the Up/Down button.
3 Line When this box is checked ( ), the scale is drawn with lines.
When this box is not checked ( ), the scale is drawn without lines.
4 No. of Divisions
(1 - 255)
Set the number of divisions of the scale. Enter the numerical value in
the data field, or set the desired value using the Up/Down button.
5 Long Line When this box is checked ( ), long gradation marks are attached to
the scale at the specified pitch.
When this box is not checked ( ), long gradation marks are not
attached.
6 Pitch (1 - 16) This option is active when [Long Line] is checked.
Specify the pitch for long graduation marks. Enter the numerical
value in the data field, or set the desired value using the Up/Down
button.
[ Line]
[ Long Line]
Pitch
Long gradation mark
Line
Short gradation mark
