3.7 Parts Placement and Setting
3-87
3
Screen Editing
Alarm Tracking / Bit Order (Time Order) Alarming /
Alarm Sub Display / Alarm Logging
Placement procedure
1. Click the item selected from [Parts] → [Alarm], or drag it from the parts list or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
2. Click the mouse in an arbitrary position on the screen. The linked part is placed.

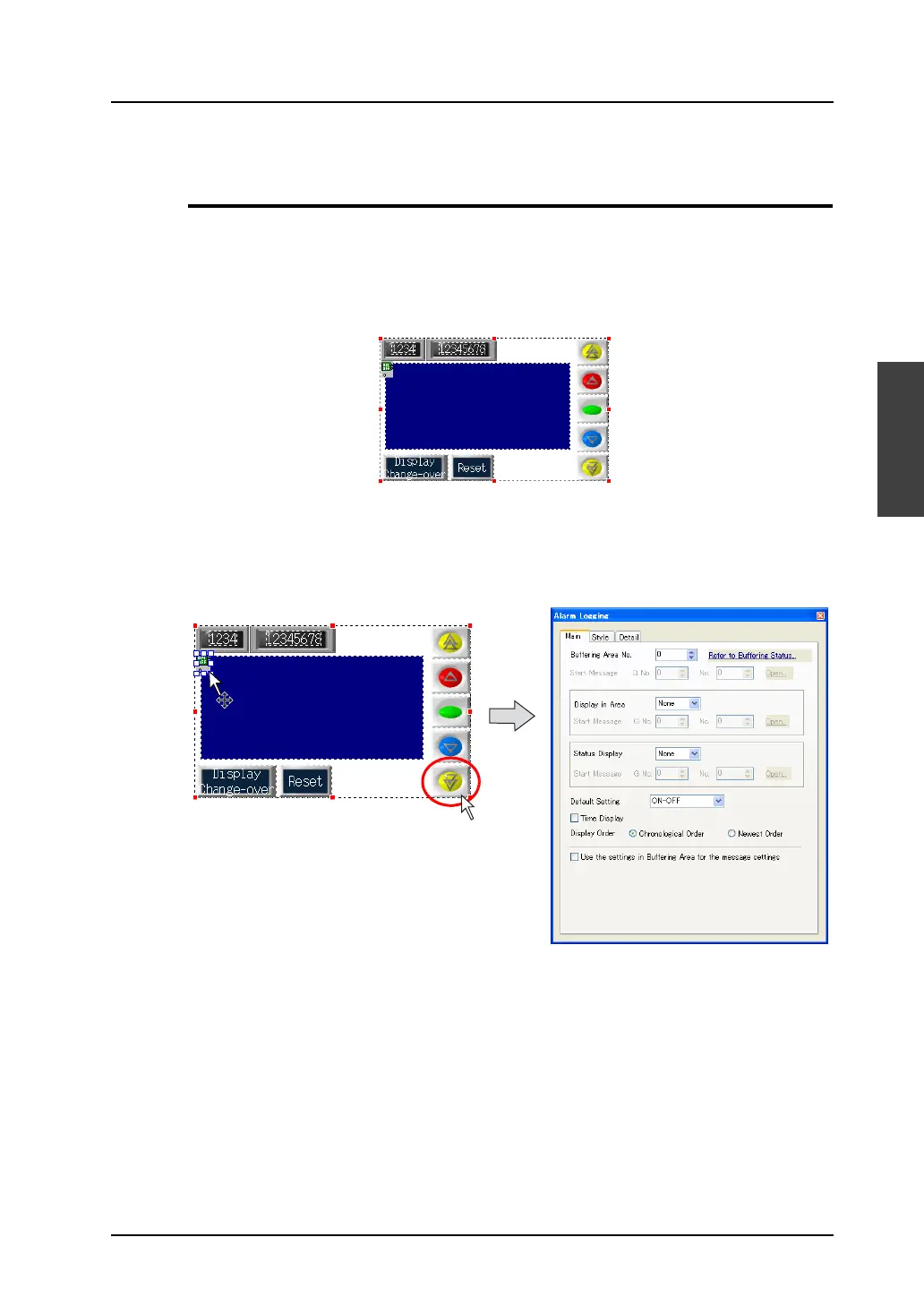

Setting method
When the icon is clicked (or double-clicked), the corresponding item dialog is displayed.
By clicking the display area part or any switch part, the item dialog for the clicked part is displayed.
Click the icon.
The item dialog is displayed.
Clicking a switch brings up
its item dialog.
