3.7 Parts Placement and Setting
3-91
3
Screen Editing
Recipe
Placement procedure
1. Click [Recipe] in the [Parts] menu, or drag it from the parts list or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
2. Click the mouse in an arbitrary position on the screen. A recipe part is placed on the screen.
Setting method

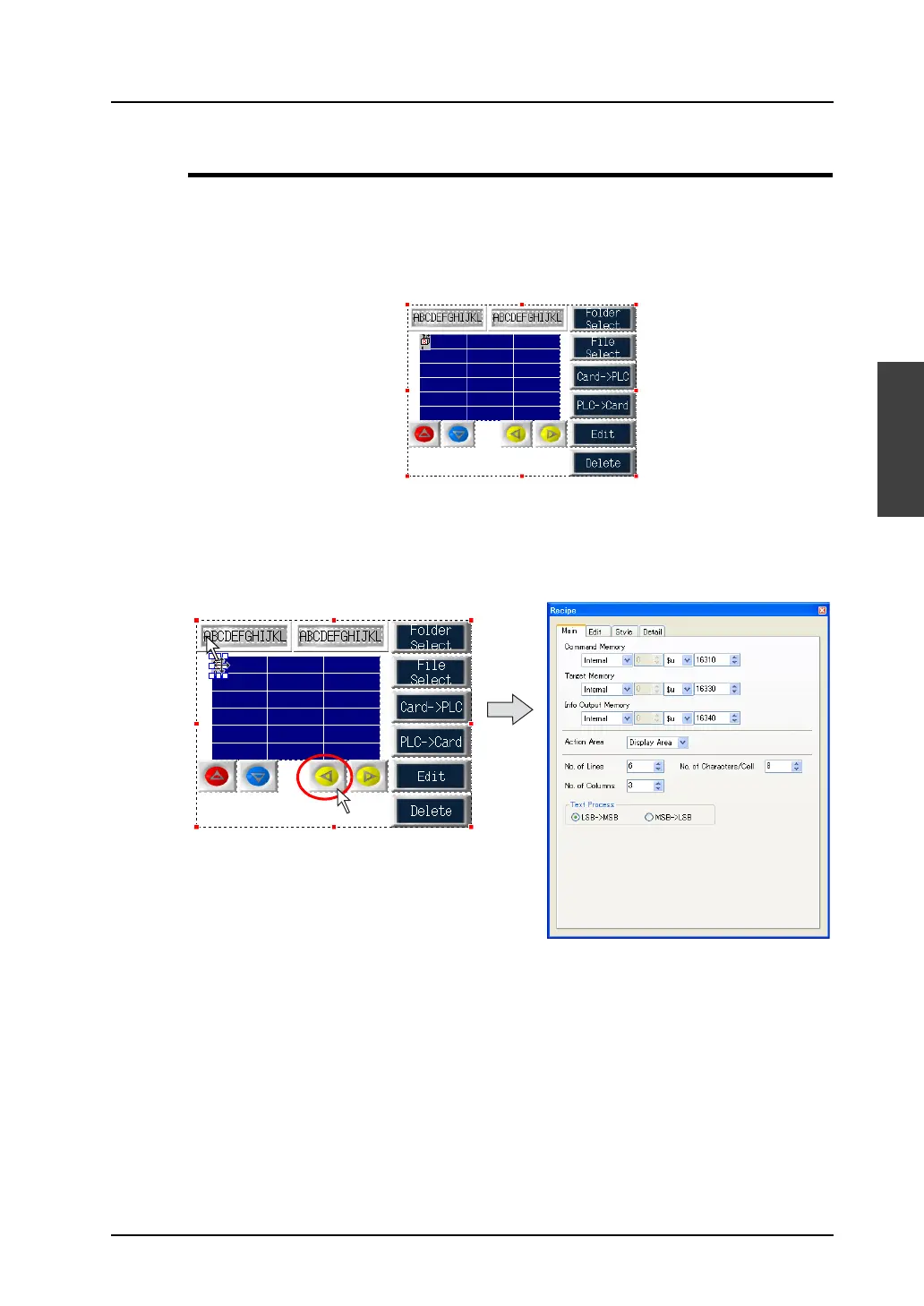

When the [Recipe] icon is clicked (or double-clicked), the [Recipe] dialog is displayed.
By clicking the display area part or any switch part, the item dialog for the clicked part is displayed.
Click the icon.
The item dialog is displayed.
Clicking a switch brings up
its item dialog.
