Hakko Electronics V8 series - Data Block Area; Memory Card; Memo Pad

3.7 Parts Placement and Setting
3-94
Data Block Area / Memory Card / Memo Pad

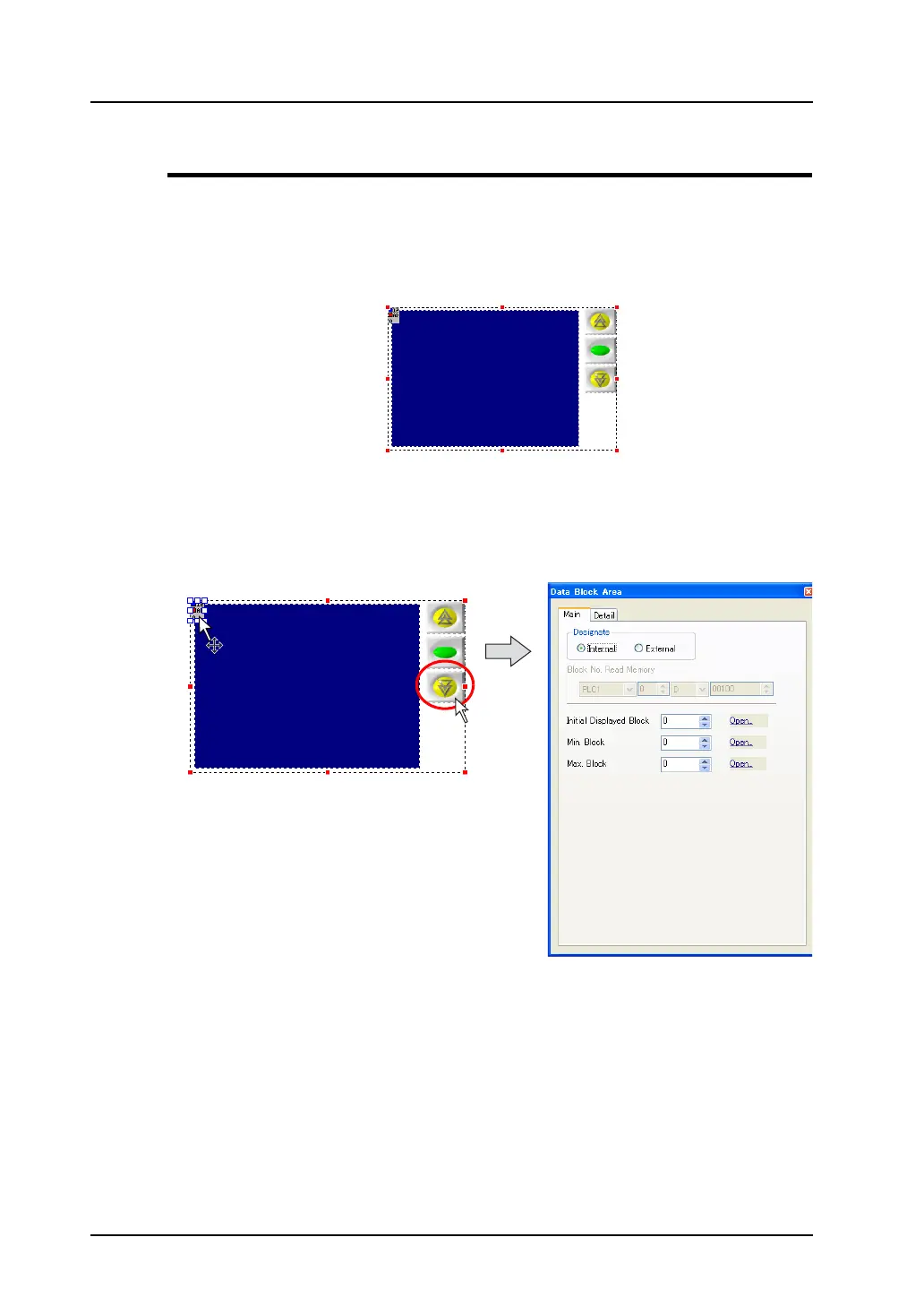

Placement procedure
1. Click the item selected from [Parts] → [Others], or drag it from the parts list or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
2. Click the mouse in an arbitrary position on the screen. The part is placed in the position.
Setting method
When the icon is clicked (or double-clicked), the corresponding item dialog is displayed.
By clicking the display area part or any switch part, the item dialog for the clicked part is displayed.
Click the icon.
The item dialog is displayed.
Clicking a switch brings up
its item dialog.
