3.7 Parts Placement and Setting
3-93
3
Screen Editing
Video Display / JPEG Display

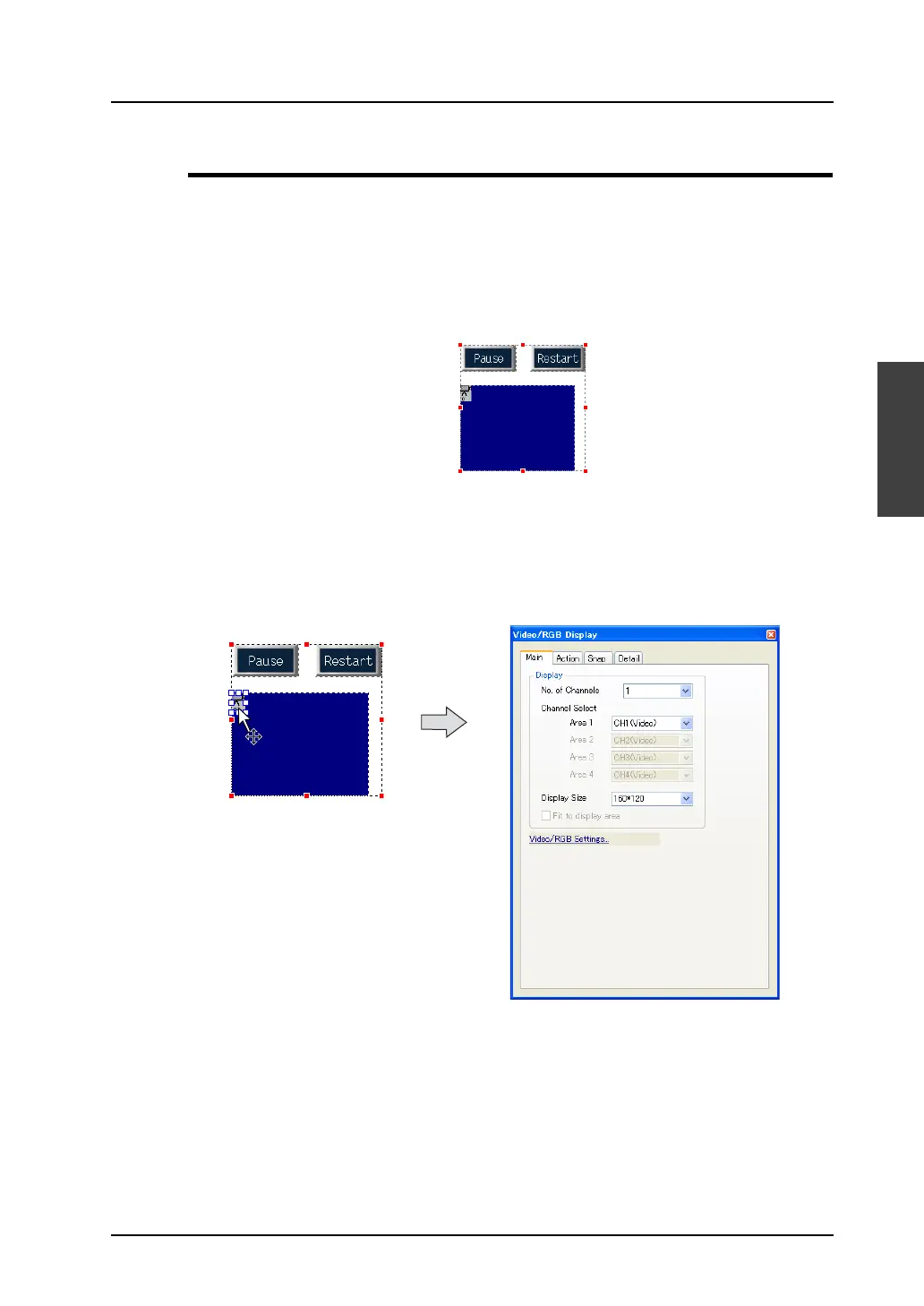

Placement procedure
1. Click [Parts] → [Multimedia] → [Video/RGB Display], or click [Parts] → [Multimedia] → [JPEG
Display]. (Alternatively, drag it from the parts list or Catalog View.)
Move the mouse to the editing window. The part is displayed along with the cursor.
2. Click the mouse in an arbitrary position on the screen. The video display or JPEG display part is
placed.
Setting method
When the [Video Display] or [JPEG Display] icon is clicked (or double-clicked), the corresponding item
dialog is displayed.
By clicking the display area part or any switch part, the item dialog for the clicked part is displayed.
Click the icon.
The item dialog is displayed.
