5.9 Data Block
5-37
5
Registration
Data Block Environment Setting
Environment setting for the data block is also started from [Display Environment] in the [View] menu,
as performed for screen editing.
Therefore, this section explains the display environment settings that are different from those in screen
editing.

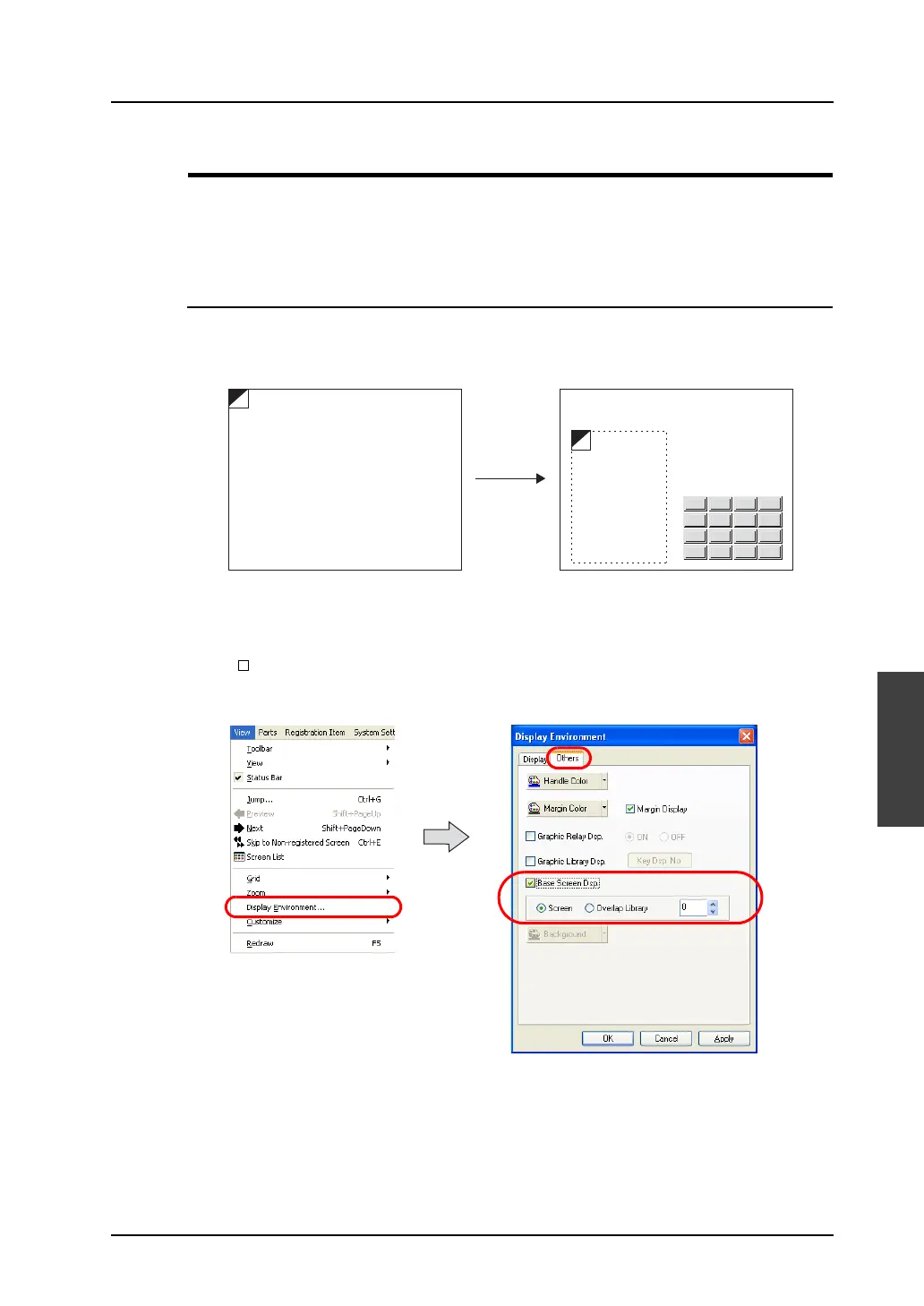

Base Screen Dsp. ([Others] Tab Window)
While editing a data block, a screen or overlap library can be placed behind the data block to check the
actual image.
Select [View] → [Display Environment].
The [Display Environment] dialog is displayed. Open the [Others] tab window.
Check [ Base Screen Dsp.]. Selection from [Screen] and [Overlap Library] is made possible. Select
either one and specify the desired number.
Click [OK]. The selected screen is placed behind the data block.
If no screen is displayed, select [Redraw] from the [View] menu or press the F5 key on the keyboard.
0 . CLR CR
1 2 3 +-
4 5 6 DW
7 8 9 UP
OFF
OFF
Only a data block Displayed on a base:
An offset position can be changed
with ease.
Data 1 1234
Data 2 1234
Data 3 1234
Data 4 1234
Data 5 1234
Change set value
Data 1 1234
Data 2 1234
Data 3 1234
Data 4 1234
Data 5 1234
