5.10 Pattern
5-39
5
Registration
5.10 Pattern

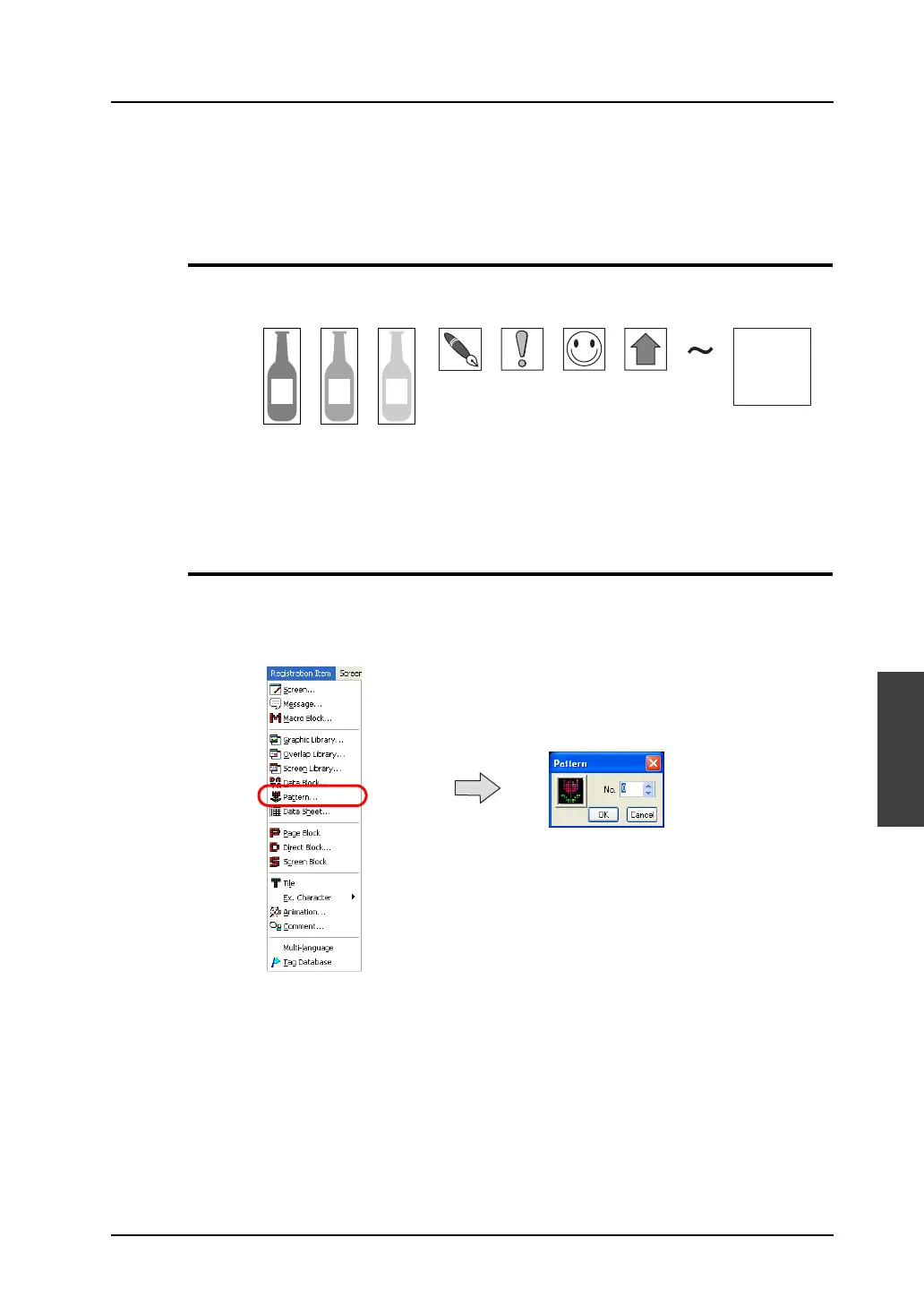

Patterns are the areas where bitmap files are imported and graphics are drawn in dots and then
registered.
Pattern Structure
A maximum of 1,024 patterns can be registered.
The maximum data capacity per pattern is 1 MB.
The maximum permissible X and Y sizes of a pattern are 1,024 dots and 768 dots respectively.
In the case of capturing a bitmap file larger than 1 MB, the file will be divided into 1 MB sections so that
the bitmap can be captured.
Calling a Pattern
Select [Pattern] from the [Registration Item] menu.
The [Pattern] dialog is displayed. Specify the pattern number to be opened and click [OK].
(Alternatively, you can call the screen from the [Screen] menu in Project View.)
No. 3 No. 4 No. 5 No. 6
Wine
Beer Soda
No. 0 No. 1 No. 2 No. 1023
Pattern
To Next Page
