3.7 Parts Placement and Setting
3-84
Graph
Placement procedure

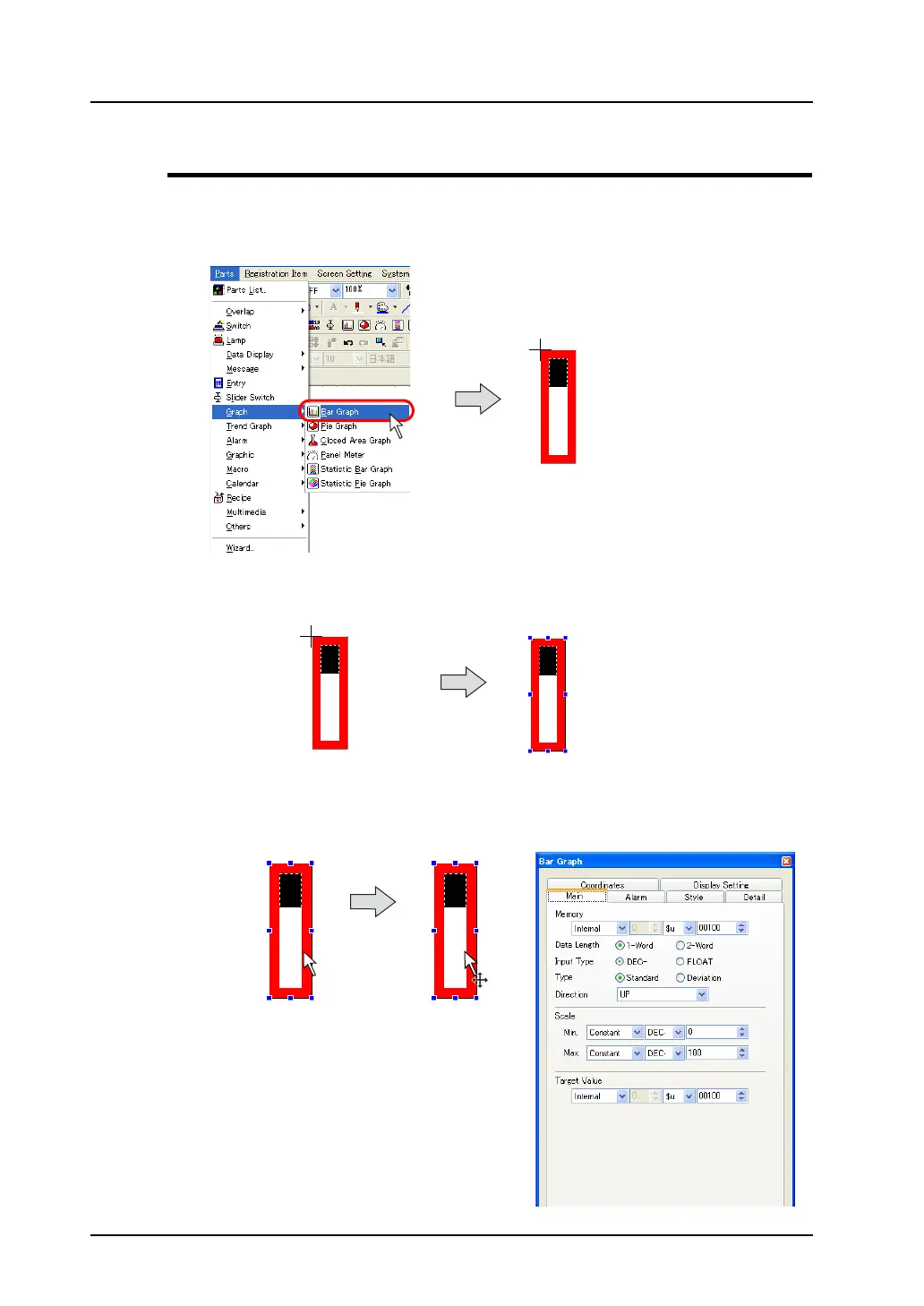

1. Click the item selected from [Parts] → [Graph], or drag it from the parts list or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
* The part displayed here is the default or the one which was changed or selected last.
2. Click the mouse in an arbitrary position on the screen. The graph part is placed.
Setting method
The item dialog is displayed by clicking or double-clicking on the parts placed on the screen.
The part is displayed with the cursor moved.
Click. Place a part.
Click on the item.
The item dialog (e.g. bar graph) is displayed.
