3.7 Parts Placement and Setting
3-80
Message Display / Comment Display
Placement procedure
1. Click [Parts] → [Message] → [Message] or [Comment Display], or drag the part from the parts list
or Catalog View.
Move the mouse to the editing window. The part is displayed along with the cursor.
* The part displayed here is the default or the one which was changed or selected last.
2. Click the mouse in an arbitrary position on the screen. The message display or comment display
part is placed.
Setting method

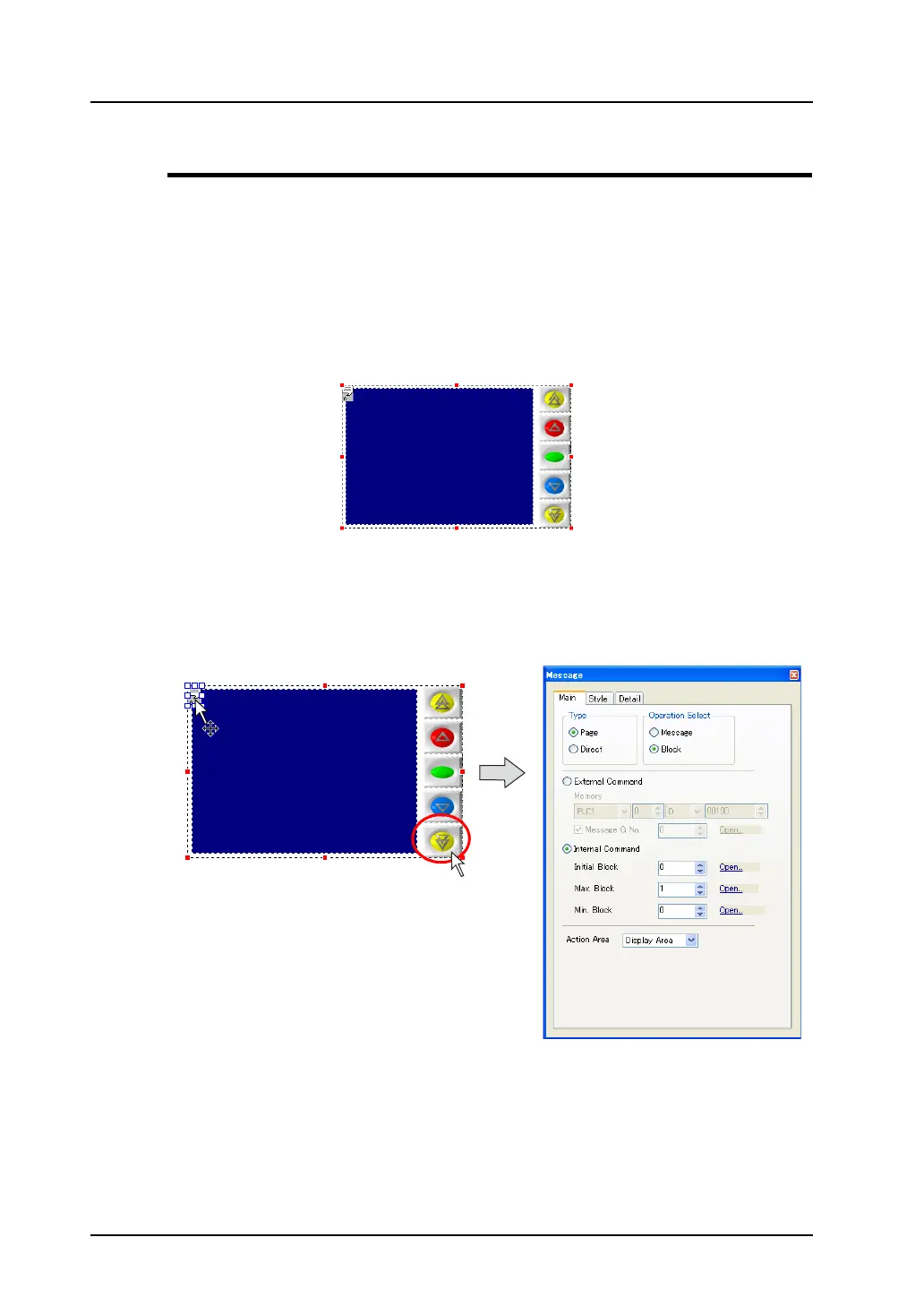

When the [Message] or [Comment Display] icon is clicked (or double-clicked), the corresponding item
dialog is displayed.
By clicking the display area part or any switch part, the item dialog for the clicked part is displayed.
Click the icon.
The item dialog is displayed.
Clicking a switch brings up
its item dialog.
