3.7 Parts Placement and Setting
3-75
3
Screen Editing
Table Data Display
Table data display parts are not included in parts files.
They are placed by setting the corresponding dialog.

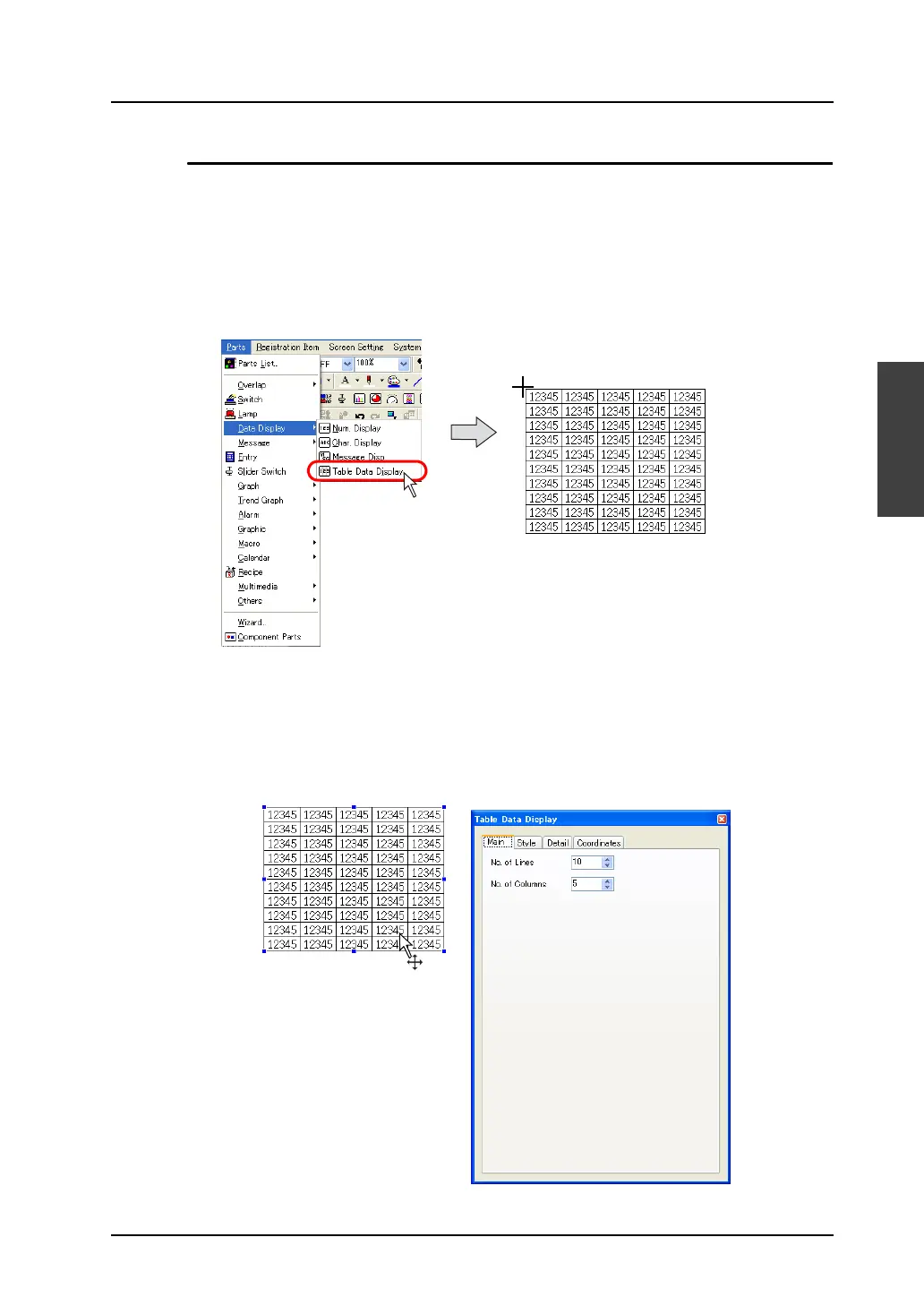

Placement procedure
1. Click [Parts] → [Data Display] → [Table Data Display], or drag the part from the parts list or Catalog
View.
Move the mouse to the editing window. The table data display part is displayed along with the
cursor.
2. Click the mouse in an arbitrary position on the screen. The table data display part is placed.
Setting method
The item dialog is displayed by clicking or double-clicking on the part placed on the screen.
The part is displayed with the cursor moved.
Click on the table data display part.
