4.3 Drawing Methods
4-20

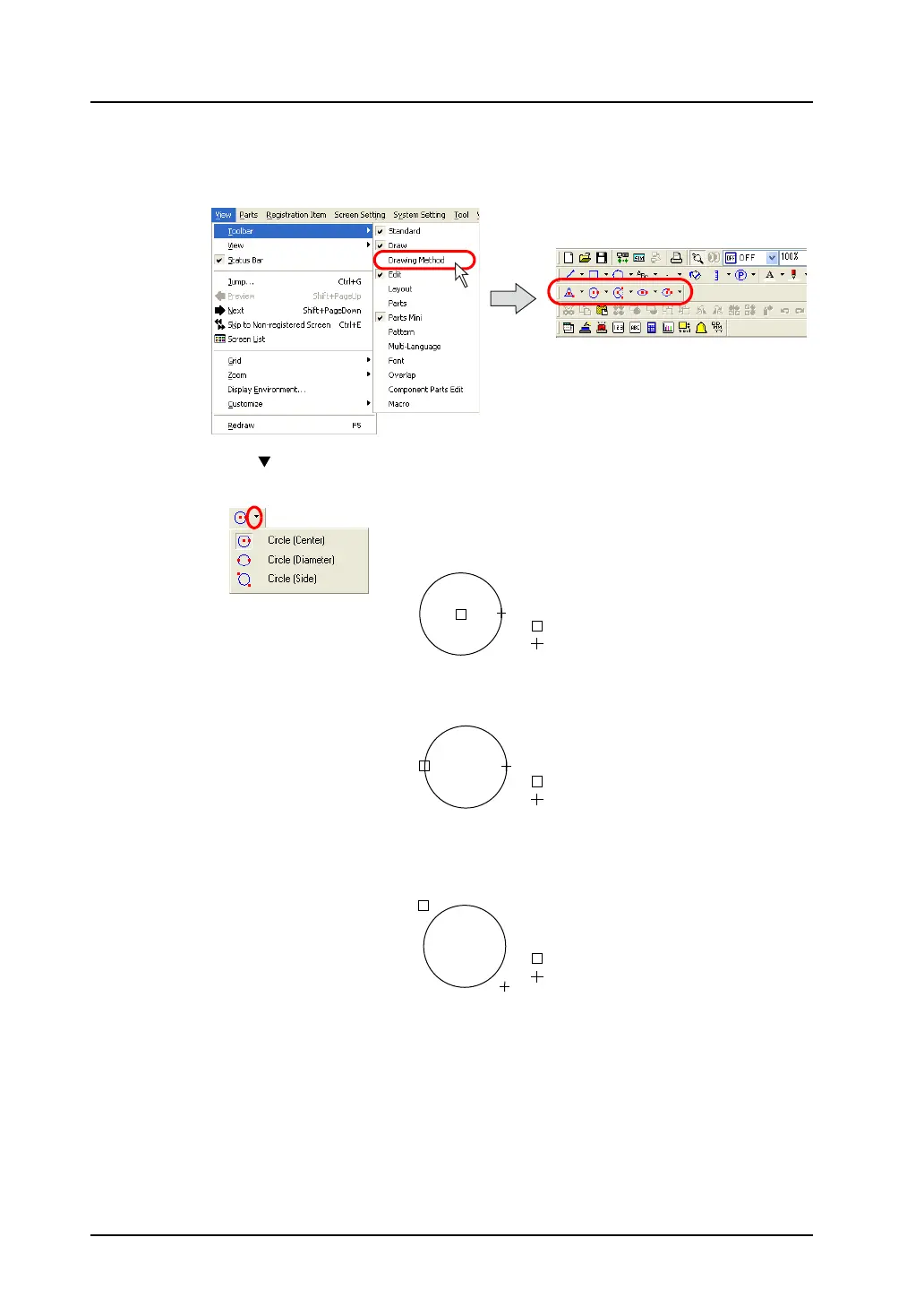

4. Select the drawing method.
Click [View] → [Toolbar] → [Drawing Method].
The [Drawing Method] toolbar is displayed.
5. Click the “ ” mark on the right of the [Circle] icon.
The pull-down menu is displayed.
Select [Circle (Center)].
6. Drag the mouse from the center to the desired radius. The circle is drawn.
7. To reset the drawing setting, right-click or double-click the mouse button.
By dragging the mouse again without resetting it, you can draw another circle continuously.
Circle (Center):
Drag from the center for the radius.
: Start point
: End point
Circle (Diameter):
Drag from one side to the other for the diameter.
: Start point
: End point
Circle (Side):
Drag from the start point to the end point of the box
where an inscribed circle is drawn.
: Start point
: End point
