HK Gothic and HK Times
A1-24
* Refer to the notes on the following page.

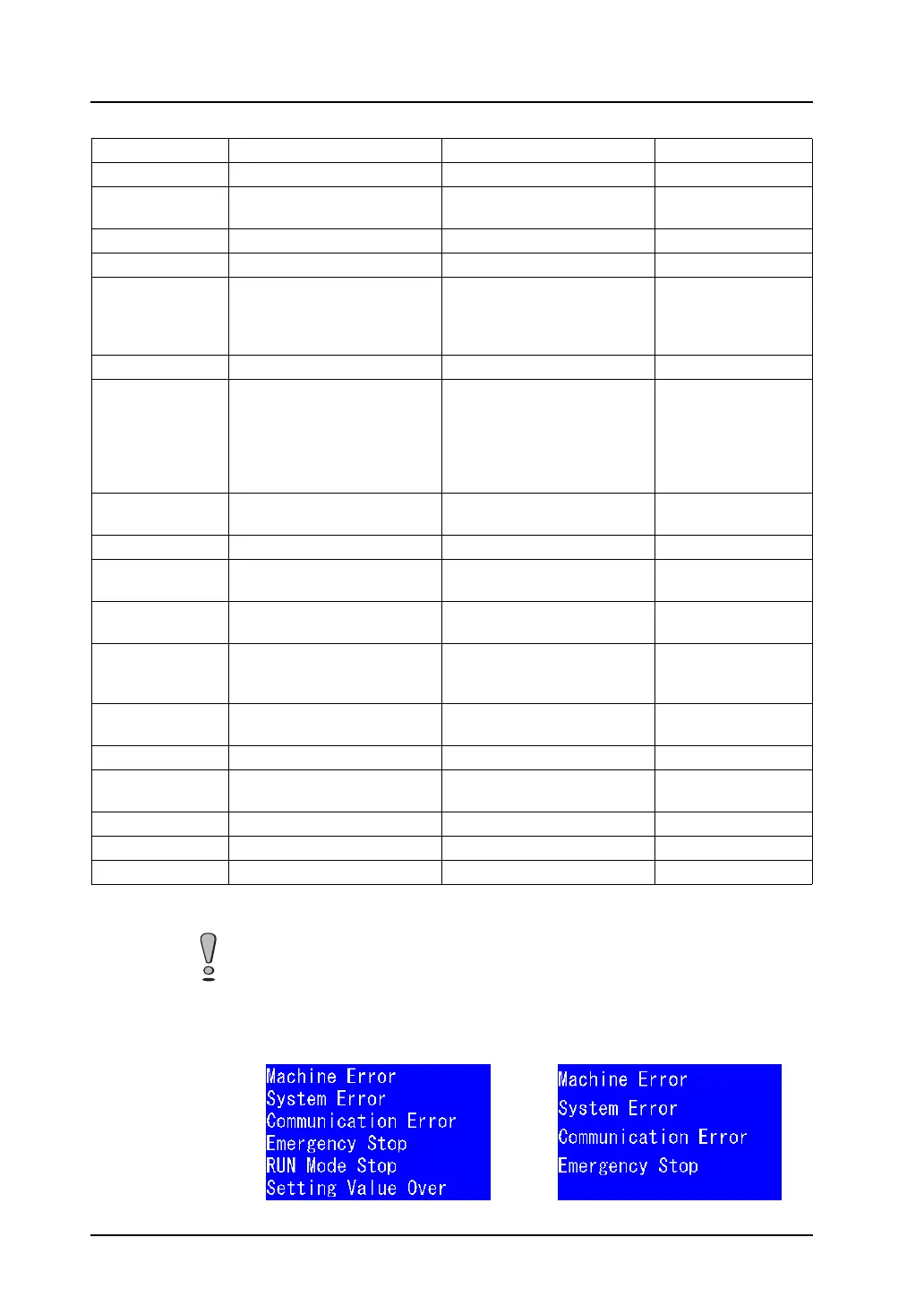

Function Automatic Font Setting Manual font Setting No. of Points
Switch, lamp Texts on switch and lamp − Variable
Numerical data
display
Numerical data display − Variable
Character display − Character display Variable
Message display − Message display Variable
Bit order alarming
mode
Message in display area *,
messages on switch and lamp
− Variable in display
area, Limited to 12
points on switch and
lamp
Alarm sub display Message in display area − Variable
Message mode Message in display area,
messages on switch and lamp
(Requirements: [Block] is
selected for [Action select] and
[Internal] for [Command].)
Message in display area,
messages on switch and lamp
(Requirements: [Block] or
[Message] is selected for
[Action select] and [External]
for [Command].)
Variable in display
area, Limited to 12
points on switch and
lamp
Data sampling Numerical data display,
character display
− Limited to 12 points
Alarm logging Message in display area − Limited to 12 points
Time order
alarming
(as mentioned for “Relay
mode”)
− (as mentioned for “Bit
order alarming mode”)
Alarm tracking Message in display area,
numerical data display
− Limited to 12 points
Memory card mode File number and record
number displays in display
area
File name and record name
displays in display area
Variable
Calendar display Calendar numerical data and
text
− Variable
Time display Time display − Variable
Table data display Numerical data display and text
in drawing *
Character and message
displays
Variable
Text in drawing Displayed characters − Variable
Multi-text Displayed characters − Variable
Data sheet (None) (None) (None)
* In the case of the matrix type (V6)
Spacing of characters is different between the matrix type and the analog type. The
matrix type shows characters based on dots at regular intervals. The space between
characters varies with the specified number of points.
20-point-size characters in the relay mode
Touch switch: Analog switch Touch switch: Matrix switch
